Netsure 531 CAA Combined Communication Power Supply System
Netsure 531 CAA Combined Communication Power Supply System
Netsure 531 CAA Combined Communication Power Supply System
Netsure 531 CAA Combined Communication Power Supply System
Netsure 531 CAA Combined Communication Power Supply System
Netsure 531 CAA Combined Communication Power Supply System
Specifications
Brand Name :
Vertiv
Model Number :
Netsure 531 CAA
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/month
Delivery Time :
within 10 days of payment
Packaging Details :
carton box
Input frequency :
45Hz~65Hz
Working tem :
-40℃~+75℃
Output voltage :
-42Vdc~-58Vdc
Input voltage :
80Vac ～ 300Vac
Efficiency :
Universal>92%, efficient>95%
Storage tem :
5％~95％ RH No condensation
Description

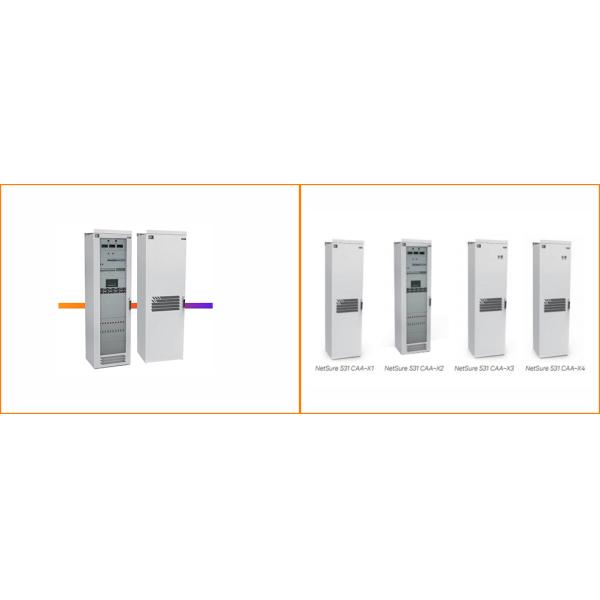

Netsure 531 CAA Series Combined Communication Power Supply System

Used for

Power, natural gas transmission and distribution, transportation

High reliability

Ultra wide working temperature range - 40 ~ + 75 ℃ (derating above 50 ℃), strong environmental adaptability, suitable for various areas.
Wide voltage input range 80-300vac, super power grid and oil engine adaptability.
AC side, DC side, signal side all-round lightning protection design, improve the system lightning protection capacity.
It has the function of walk in to avoid the impact on the former transformer and oil engine during startup.
The special communication power supply system for power industry adopts the design of special fixed terminal wiring and shunt status indication, which is easy to operate and maintain.
The railway special communication power supply system is designed according to the railway industry standard.

High efficiency and energy saving

The efficiency of general efficiency module is more than 93%, and the efficiency of high efficiency module is more than 96%, saving the user's electricity expense.
The utility model has the patent technology of dormancy and high-efficiency universal module mixed insertion energy-saving, which improves the operation efficiency.
It has intelligent speed regulation function of fan, reduces system loss and prolongs service life of fan.

Intellectualization

With RS232 interface, network port (optional) and intelligent dry contact, networking flexible.
5-inch large LCD display, friendly human-machine interface, convenient operation and maintenance.
Perfect battery management function, effectively extend the service life of battery.
Easy to use

Full front maintenance design

The rectifier module is lossless and hot swappable, which can be maintained online and convenient.
The rectifier module has an independent ID identification function, which is convenient for user's asset management.
The power density of the rectifier module is as high as 38 w / inch 3, and more wiring and operation space are reserved.

Electrical parameters

Power supply system

Performance parameter

describe

Working temperature

-40 ℃ ~ + 75 ℃ (derating above 50 ℃)

-40℃～ +75℃

Storage temperature

5％ RH ～ 95％ RH(No condensation)

High altitude storage temperature

No more than 4000m (derating is required for more than 2000m)

Input voltage range

80Vac ～ 300Vac

Input frequency

45Hz ～ 65Hz

Power factor

≥0.99

Output voltage range

-42Vdc ～ -58Vdc

System efficiency

Universal system > 92%, efficient system > 95%

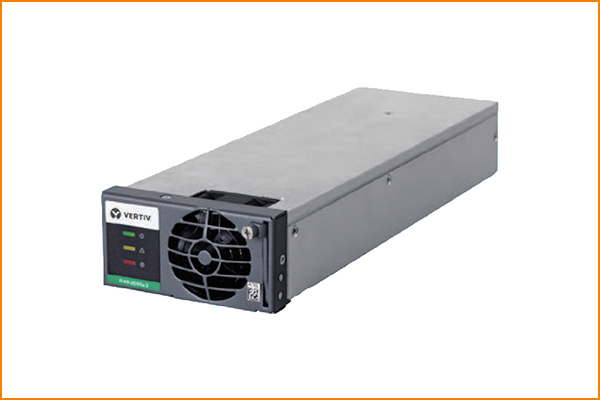

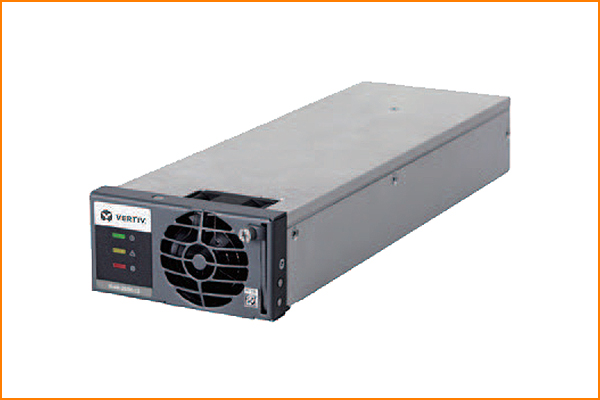

Rectifier module

Performance parameter

R48-2000A3

R48-2000e3

Input voltage

80Vac ～ 300Vac

Power factor

≥0.99

Output voltage

42 ～ 58Vdc

Rated current

30A

Output current

0 ～ 36A

0 ～ 42A

Module efficiency

>93%

>96%
