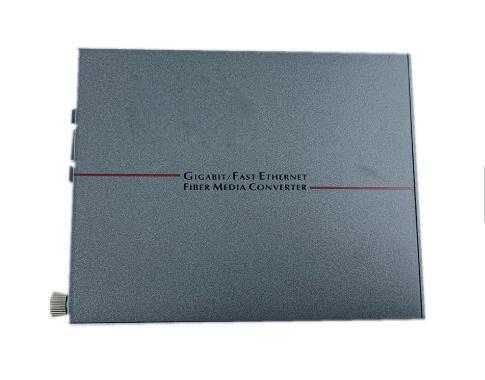

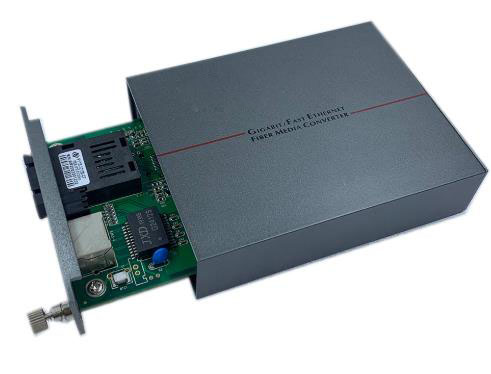

2 Port 1000M Fiber Cable Accessories Gigabit Ethernet Media Converter
2 Port 1000M Fiber Cable Accessories Gigabit Ethernet Media Converter
Specifications
Brand Name :
Unique-Tel
Model Number :
TC1000
Certification :
CE, FCC, RoHS
Place of Origin :
Hubei, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000 Pieces/Month
Delivery Time :
5 work days
Packaging Details :
carton packaging
Standard :
1000Base-FX
Connector :
SC/ST/FC
Storage temp :
-20~70℃
Dimension :
70.6x26x94mm
Indicator :
Port & power indicator
Description

2-port 1000M Optical Transceiver Gigabit Ethernet Media Converter

Decription

2-port Gigabit media converter. It can convert Ethernet electrical signal into Ethernet optical signal to extend the transmission distance. It also has good isolation protection and data confidentiality. This series include three types of products with different mains input methods and provide Gigabit copper port, Gigabit fiber port. It adopts DIN-Rail or wall mounting to meet the requirements of different application scenes.

This series of products conform to CE, FCC certification standards. Hardware adopts fanless, low power consumption, wide temperature and voltage design, which can suit for the scene environment with harsh requirements. It can be widely used in various fields.

Features

Support 1 Gigabit fiber port, 1 Gigabit copper port

Support built-in power supply 220VAC, 48VDC, external power supply 5VDC

Support -10~60℃ wide operating temperature range

Specifications

Power

Requirement

Support three kinds of mains input methods

lExternal 5VDC, DC round head

lBuilt-in 220VAC, AC socket with switch

lBuilt-in 48VDC, 3-pin 5.08mm pitch terminal blocks

Power

Consumption

 4W

Environmental

Limit

Operating temperature: -10~60℃

Storage temperature: -20~70℃

Relative humidity: 5%～95%(no condensation)
Physical Characteristic

Housing: metal

Installation: wall or DIN-Rail mounting

Dimension (W x H x D): 70.6mm×26mm×94mm (external power supply)

115mm×30mm×173.2mm (built-in power supply)
Certification CE, FCC, RoHS
Warranty 3 years

Standard

&

Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000Base-X
Copper Port 10/100/1000Base-T(X), RJ45, automatic flow control, full/half duplex mode, MDI/MDI-X autotunning
Fiber Port

Standard: 1000Base-FX

Connection mode: SC/ST/FC optional

Transmission distance:

lMultimode: 500m/2km

lSingle mode: 10/20/40/60/80km

Fiber cable:

lMultimode: 50/125μm or 62.5/125μm

lSingle mode: 8.3/125μm, 8.7/125μm, 9/125μm or 10/125μm

Transmission wavelength:

lMultimode: 850nm/1310nm

lSingle mode: 1310nm/1550nm
LED Indicator Port indicator, power supply indicator
