100M Unmanaged Daughter Card SC Fiber Cable Accessories
100M Unmanaged Daughter Card SC Fiber Cable Accessories
Specifications
Brand Name :
Unique-Tel
Model Number :
TC100
Certification :
CE, RoHS
Place of Origin :
Hubei, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000 Pieces/Month
Delivery Time :
5 work days
Packaging Details :
carton packaging
Weight :
60g
Fiber port :
SC/ST/FC optional
Storage temp :
-30~60℃
Operating temp :
-30~60℃
Dimension :
84.5mm×20.0mm×122.5mm
Relative humidity :
5%～95% (no condensation)
Description

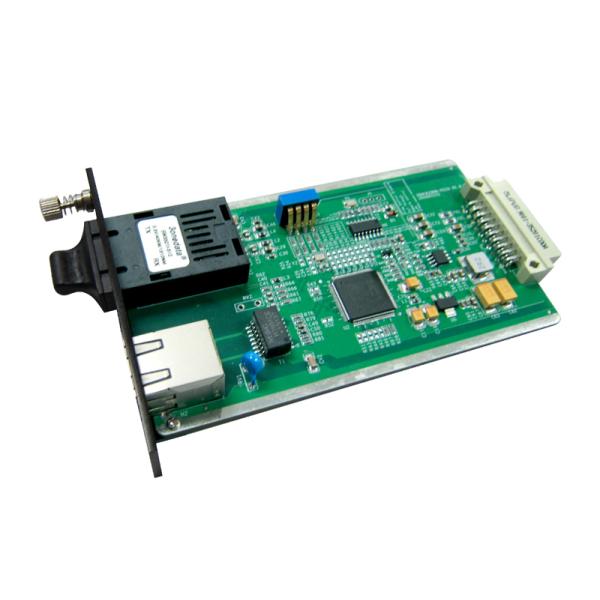

2-port 100M Industrial Media Converter Unmanaged Daughter Card

Overview

The series adopt industrial grade design and support IEEE802.3/802.3u standard. Its copper port supports 10/100M, full/half duplex, MDI/MDI-X self-adaption, store-and-forward and cut-through mode setting.

100M industrial media converter unmanaged daughter card. The product provides 100M copper port and fiber ports. It adopts slide-in mounting and could be matched with the media converter rack RACK2100.

Hardware adopts low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

The DIP switch could implement functions like LFP alarm, cut-through/store-and-forward modes and flow control. When the LFP function is turned on and the port has link failures, the LFP indicator will light up and send out an alarm to offer quick troubleshooting on the scene.

Features

MAC address: 1K

Input voltage: 12V DC

Packet buffer size: 0.28M

Switch time delay: ＜10μs

Backplane bandwidth: 0.6G

Support 1*100M copper port and 1*100M fiber port

Support -30~60℃ wide operation/storage temperature range

Sepecifications

Power

Requirement

 Input voltage: 12VDC

Power

Consumption

No-load: 1.10W@12VDC

Full-load: 1.52W @12VDC

Environmental

Limit

Operating temperature range: -30~60℃

Storage temperature range: -30~60℃

Relative humidity: 5%～95% (no condensation)
Physical Characteristic

Installation: slide-in mounting

Weight: 60g

Dimension (W x H x D): 84.5mm×20.0mm×122.5mm
Certification CE, FCC, RoHS
Warranty 5 years

Standard

&

Protocol

IEEE 802.3 for 10BaseT

IEEE 802.3u for 100Base-TX and 100Base-FX

IEEE 802.3x for Flow Control
Interface

Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning

Fiber port: 100Base-FX , SC/ST/FC optional
LED Indicator STA Running Indicator, Port Indicator, LFP Indicator
Switch Property

Transmission mode: store-and-forward or cut-through

MAC address: 1K

Packet buffer size: 0.28M

Backplane bandwidth: 0.6G

Switch time delay: ＜10μs


100M Unmanaged Daughter Card SC Fiber Cable Accessories
