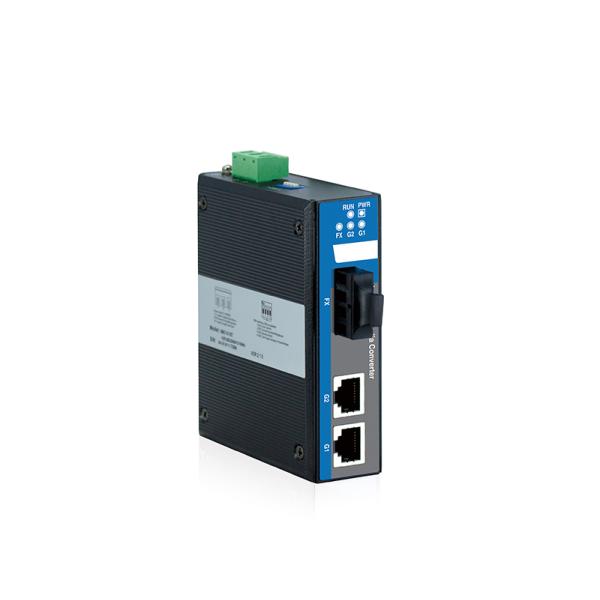

Full Gigabit Unmanaged Industrial Media Converter Transceiver Switch
Full Gigabit Unmanaged Industrial Media Converter Transceiver Switch
Specifications
Brand Name :
Unique-Tel
Model Number :
TC1000
Certification :
FCC, RoHS
Place of Origin :
Hubei, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000 Pieces/Month
Delivery Time :
5 work days
Packaging Details :
carton packaging
Housing :
IP40 protection, metal
Installation :
DIN-Rail mounting
SFP slot :
1000Base-SFP
Dimension :
35x110x95mm
Warranty :
5 years
Description

3 Port SC ST FC Full Gigabit Unmanaged Industrial Media Converter Transceiver Switch

Features

Support 1 Gigabit fiber port or SFP slot optional, 2 Gigabit copper port

Support input voltage: 12~48VDC, nonpolarity, reverse polarity protection

Support -40~75℃ wide operating temperature range

Specifications

Standard

&

Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3z for 1000Base-X

IEEE 802.3ab for 1000Base-T

IEEE 802.3x for Flow Control
Interface

Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning

Fiber port: 1000Base-FX, SC/ST/FC optional

SFP slot: 1000Base-SFP
LED Indicator Running indicator, Port Indicator, Power Supply Indicator

Switch

Property

Transmission mode: store and forward

MAC address: 1K

Packet buffer size: 1Mbit

Backplane bandwidth: 12G

Switch time delay: < 10μs

Power

Requirement

12~48VDC, 3-pin 7.62mm pitch terminal blocks

Support nonpolarity, reverse polarity protection

Environmental

Limit

Operating temperature: -40~75℃

Storage temperature: -40~85℃

Relative humidity: 5%～95%(no condensation)
Physical Characteristic

Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Dimension (W x H x D): 35mm×110mm×95mm

Weight: ≤356g

Industrial

Standard

IEC 61000-4-2 (ESD), Level 4

lAir discharge: ±16kV

lContact discharge: ±8kV

IEC 61000-4-4 (EFT), Level 2 (IMC102GT-1GF)

lPower supply: ±1kV

lEthernet interface: ±0.5kV

IEC 61000-4-4 (EFT), Level 1 (IMC102GT-1GS)

lPower supply: ±0.5kV

lEthernet interface: ±0.25kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6
Certification CE, FCC, RoHS
Warranty 5 years

Description

3-port full Gigabit unmanaged industrial media converter. This series include two types of products and provide Gigabit copper port, Gigabit fiber port and Gigabit SFP slot. It adopts DIN-Rail mounting to meet the requirements of different application scenes.

Design of DIP switch can achieve flow control, copper port compulsive 100M and jumbo frame. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.
