Eltek Flatpack2 380V Rectifier 380/3000 HE Doc 241119.825. DS3 - v3.2

Key Features

Power Density - 33 w/Inch3

High Efficiency – 96.2%

Or-Ing Protection On Output

Hot Pluggable – Mttr < 5 Min

Voltage Keying

Applications

DATA CENTER

Centralized battery back-up systems

TELECOM

Central office / large switch sites OTHER INDUSTRIES

380VDC UPS

Overview

HE rectifier for 380VDC in data centers

The Flatpack2 380/3000 HE rectifier has high efficiency, ORing protection on output and high output power.

Distribute pure battery backup DC voltage with a minimum of loss. Remove the low reliability DC-AC step in the central backup power system and maximize its reliability and efficiency.

Stack cabinets with up to 72 rectifiers to build large power systems monitored by the Smartpack2 controller.

Specifications

Model Flatpack2 380/3000 HE
Part number 241119.825
INPUT DATA
Voltage (nominal) 176 - 277 VAC
Voltage (range) 85 - 305 VAC
Frequency 45 - 66 Hz
Current (maximum) @ nominal input, full load 18.2 ARMS
Power Factor > 0.99 at 50% load or more

Protection

Fuse in L & N Varistor

Disconnect when VIN is out of range
OUTPUT DATA
Voltage (default) 381 VDC
Voltage (adjustable range) 300 - 400 VDC
# Pb cell supported 156 - 168 1)
Power (maximum) 3000 W
Power @ 85 VAC 1200 W
Current (maximum) @ nominal input, full load 9 A (@VOUT < 336 VDC) / 7.9 A (@ VOUT = 381 VDC)
Current sharing (10 - 100% load) ±5% of maximum current from 10 to 100% load
Static Voltage regulation (10 - 100% load) ±0.5%
Dynamic Voltage regulation ±5.0% for 10-50% or 50-10% load variation, regulation time < 25 ms
Hold up time > 20 ms; output voltage > 300 VDC at 1500 W load
Ripple < 1000 mVP-P , 30 MHz bandwidth

Protection

Overvoltage shutdown

Hot plug-in - Inrush current limiting ORing diode

Short circuit proof High temperature protection
OTHER SPECIFICATIONS
Efficiency @ 230 VAC input > 96.2%
Isolation

3.0 kVAC – input to output, 1.5 kVAC – input to earth, 1.5 kVDC – output to earth,

3.0 kVAC – CAN to primary, 3.0 kVAC – CAN to secondary
Alarms (Red LED) Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure
Warnings (Yellow LED) Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage
Normal (Green LED) Input and output ok
Acoustic noise, at nominal input and full load < 40dBA @Tambient< 25°C / <58dBA @ Tambient> 40°C
MTBF (Telcordia SR-332 Issue I method III (a)) >400 000 (@ Tambient : 25 °C)
Operating temperature

-40 to +75°C (-40 to +167°F), humidity 5 - 95% RH non-condensing

Output power de-rates linear from 3000W @ 50°C (122°F) to 980W @ 75°C(167°F)
Storage temperature -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing
Dimensions[WxHxD] / Weight 109 x 41.5 x 327 mm (4.25 x 1.69 x 13”) / < 1.95 kg (4.3 lbs)
DESIGN STANDARDS
Electrical safety EN 60950-1:2006+A11:2009+A1:2010+A12:2011, IEC 60950-1:2005+A1:2009, UL 60950-1:2011, CSA C22.2 No. 60950-1-07
EMC

EN 61000-6-1:2007, -6-2:2005, -6-3:2007 + A1:2011, -6-4:2007 + A1:2011, EN 300

386:v1.6.1, FCC CFR 47 Part 15:2013
Environment ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) 2011/65/EU (RoHS) & 2008/98/EC (WEEE)
1) for 156 cells minimum test voltage is 1.923 V/cell. For 168 cell maximum boost voltage is 2.38 V/cell

Eltek Flatpack2 380V Rectifier 5G Network Equipment 380/3000 HE Doc 241119.825. DS3 - V3.2

Smartpack2 system controller

Eltek Flatpack2 380V Rectifier 5G Network Equipment 380/3000 HE Doc 241119.825. DS3 - V3.2

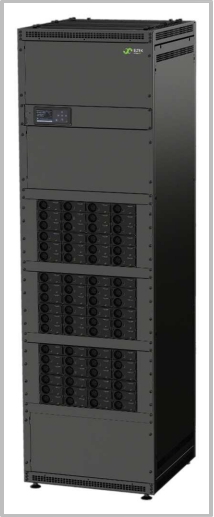

72 rectifiers power cabinet
