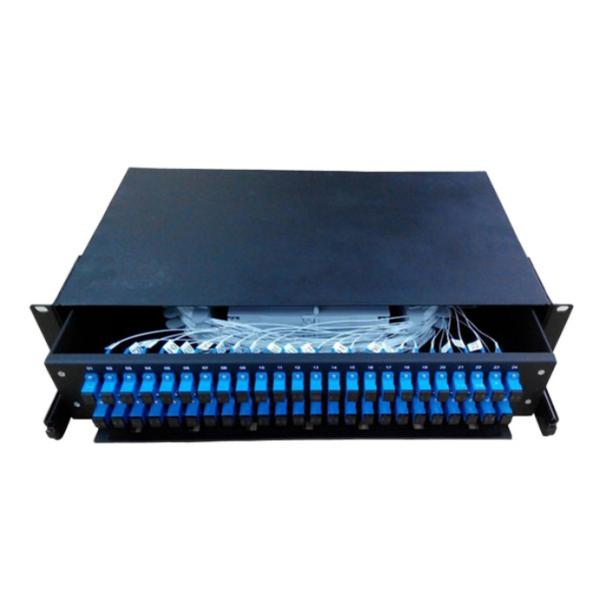

Drawer Type ODF Optical Distribution Frame Pre Terminated Powder Coating Surface
Drawer Type ODF Optical Distribution Frame Pre Terminated Powder Coating Surface
Specifications
Brand Name :
Unique-Tel
Model Number :
PXX07
Certification :
CE RoHS
Place of Origin :
China
MOQ :
10 Pieces
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
1000 Pieces/Month
Delivery Time :
5 work days
Packaging Details :
carton packaging
Return Loss :
50dB
Insertion Loss :
≤0.3dB
Function :
Distribution Panel
Adapter :
Fits all types of connectors
Installation :
Standard 19 inch rack mount
Surface :
Powder coating black or white color
Description

Optical Fiber Distribution Frame Drawer Type Preterminated Rack Mounted ODF

Description

ODF patch panels are designed to provide a high density 19" rack-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing and management. Unique-Tel ODF patch panel offers superior optical performance, high stability and high reliability, meet various application requirements in FTTh construction , ODN construction, LAN, Metro network and CATV.

Features

● Rack-mounted 19" with sliding drawer design

● Integrated with splice cassette and cable management elements

● Manages large quantities of fiber with high density design

● Easy to maintain and extend fibers in the future

● Fiber bend radius control more than 40mm

● Suitable for the splice of ribbon and bunchy cables

● Maximum capacity up to 96 ports

● Efficient space for cable management

● Cable led out from left or right side of patch panel rear part

● Fully comply with Telcordia GR1209/1221 qualifications

Specification

ODF Patch Panel Parameter
Adaptor Type SC,FC,ST,Duplex SC,Duplex LC
Capacity 12,24,48,72,96 fibers
Body Material Cold rolled steel or stainless steel
Surface Treatment Powder coating black or white color
Installation Method Standard 19 inch rack mount
Size Dimension(mm) 485(W) x325(D)x46(H)(19"1U) for 12/24F
485(W) x325(D)x92(H)(19"2U) for 48F
485(W) x325(D)x140(H)(19"3U) for 72F
485(W) x325(D)x185(H)(19"4U) for 96F
Strengthen Member Fixation Yes
Bending Radius(mm) > 40

Ordering Info.

Body Material Adaptor Capacity Pigtail Body Color
Cold Rolled Steel No Adaptor 12F 0.9mm Bunchy White
Stainless Steel SU/UPC 24F 0.9mm Single Black
SA/UPC 48F 0.9mm Ribbon Grey
FC/UPC 72F 2.0mm Single
FC/APC 96F 3.0mm Single
LC/UPC
LC/APC
