Specifications
Brand Name :
Unique-Tel
Model Number :
PXX09
Certification :
CE RoHS
Place of Origin :
China
MOQ :
10 Pieces
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
1000 Pieces/Month
Delivery Time :
5 work days
Packaging Details :
carton packaging
Capacity :
4U
Adapter :
All
Core :
96 Core
Shell :
RAL7035
Material :
SPCC CRS
Function :
Distribution
Connector :
SC/FC/LC/ST
Application :
Network cabinet, network rack
Description

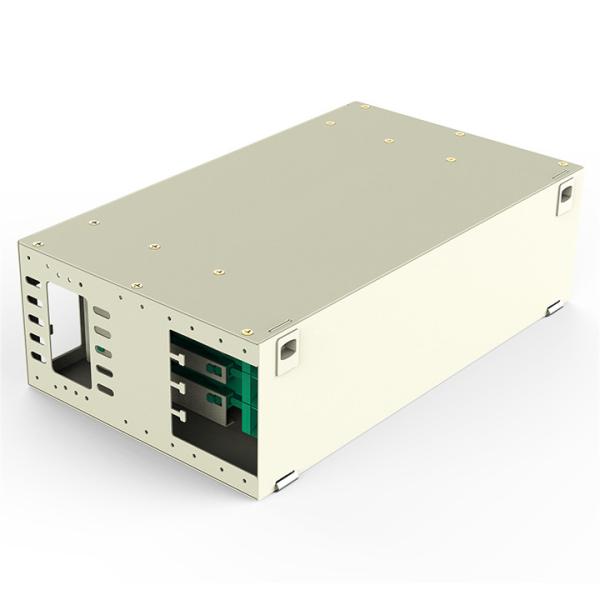

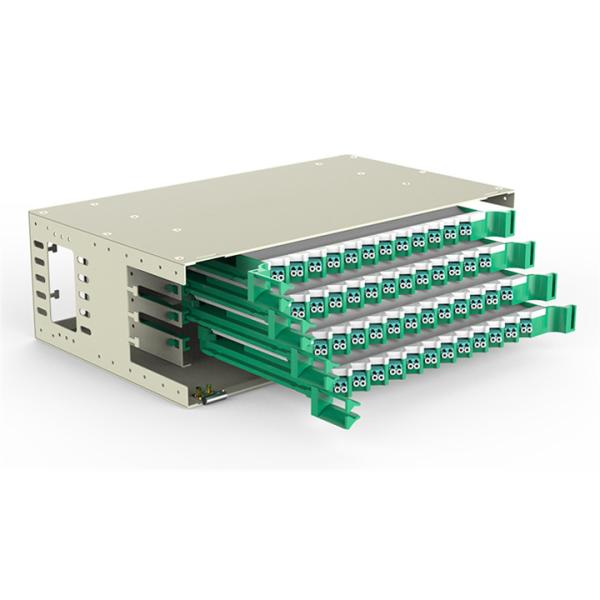

96 Core Rack Mount Pull-Out Module Optical Distribution Frame for Network Room

Description

19″ fiber optic patch panel, also called optical distribution frame (ODF), is made for splicing and distribution of fiber optic cables, using fiber optic adapters. Almost all types of adapter panels are available: SC, LC, ST, FC, E2000, MTRJ.

Professional optical fiber wiring equipment, with optical cable fixation, protection, optical cable terminal, line adjustment, as well as optical fiber core and tail fiber protection function, service in optical fiber communication system, optical data transmission, optical fiber CATV LAN, optical testing equipment, optical fiber sensor and telecommunications engineering.

One of most convenient optins of this panel is cable entrance ports, prepared for PG glands in the back of panel, so the cable fixed in the back of panel can be with a small reserve of fiber tubes, because it moves together with the drawer, when opening the panel.

Overview

An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit.

The basic requirement is ODF should allow for easy access to the connectors on the front and rear of those ports for insertion and removal. It is usually used as the interface between optical transmission network, optical transmission facility and between optical cables in access network of optical fiber subscribers. It can also work as a protective device to protect fiber optic connections from damage.

Unique-Tel ODF offers flexible cabling access, expandable frame design and comprehensive cable management. A series of optical distribution frames of 12 fibers, 24 fibers, 48 fibers, 72 fibers, 96 fibers, 144 fibers and 576 fibers counts type are available.

Features

  • Thickened cold rolled plate with a thickness up to 3mm
  • Pull-out module: flexible application, stable performance, easy installation
  • Groove of screw hole: after screws are installed, the surface of distribution frame is flat without bump to avoid friction
  • The ear-hanging position can be adjusted according to the actual situation of the cabinet to avoid re-drilling due to inappropriate size
  • Standard 19-inch unit size for mounting on a variety of racks and cabinets
  • Product Type: Rack Mount Optical Distribution Frame

  • Dimension(mm): 480*300*4U

  • Standard Color: Light gray

  • Max. Fiber Cores: 96 Cores

  • Max. 12 Fibers Splice Tray: 8

  • Work Temperature: -10 - +60°C

  • Storage Temperature: -25 - +85°C

Ordering Info.

Body Material

Adaptor

Capacity

Pigtail

Body Color

Cold Rolled Steel

No Adaptor

12 Fibers

0.9mm Bunchy

White

Stainless Steel

SU/UPC

24F

0.9mm Single

Black

SA/UPC

48F

0.9mm Ribbon

Grey

FC/UPC

72F

2.0mm Single

FC/APC

96F

3.0mm Single

LC/UPC

LC/APC

Pull Out Module Digital Distribution Frame , 96 Core Fiber Optic Patch Panel
