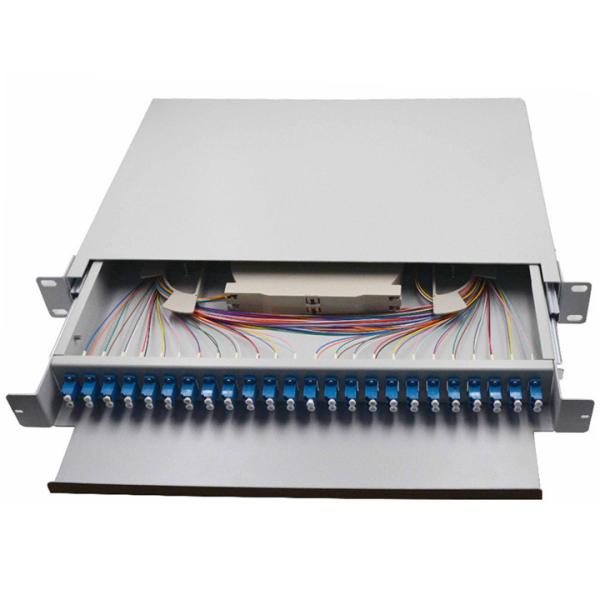

24 Port Patch Panel White ODF LC Duplex Adapter Optical Distribution Frame

Specifications

Well cable management

Wall mount & Rack mount available

SC/ LC type available

Adapter/pigtail assembly

Features

• 19" standard size , easy install
• Light weight, strong strength, good anti-shocking and dustproof
• Well cable management, cable can be distinguished easily
• Roomy space ensure fiber bent ratio
• Adapter fence can be installed or uninstalled

Performance Index

• Max capacity reach to 12porst,
• Available adapter port: SC, LC
• Material thickness:1.2mm
• Product size:450x25x5mm
• Weight:2.3kg

Ordering Information

Quality System

In order to maintain product performance and stability, and to achieve the level of the industrial standard, we execute incoming quality control, in-process quality control, and outgoing quality as the core processes of our quality system.

1. Incoming quality control

A. Inspection of all incoming direct and indirect materials;

B. Adopt AQL 0.65 level II sampling plan for incoming material inspections;

C. Conduct sampling plan based on historical quality records;

D. On-site audits of all suppliers.

2. In-process quality control

A. Real time process control for defective distribution;

B. Statistical process for control defective rates ;

C. Analyze first production quantity and quality to identify and evaluate process trend;

D. Unscheduled production line audit for continuous improvement.

3. Outgoing quality Control

A. Adopt AQL 0.65 level II sampling plan to audit finished good products to ensure quality level up to specification;

B. Conduct system audit based upon production flow chart;

C. Storage database for all finished good products.

Relative Support

1. More than 12 years manufactory & export experience

2. Long years Exhibition experience to Europe, USA, Russia, South America, etc

3. Rich experience to support big FTTH, FTTB, FTTX project and tender

4. Excellent Sales team with work experience more than 3 years; R&D, Quality Control, Engineer team more than 10 years in this line

5. All operators with work experience more than 3years, familiar with the whole process of the production and excellent in their position

6. owns laboratory which can make the test according to IEC & Telcordia standard

7. owns long cooperation Forwarder, which can support you well for the trade term as CIF,DDU,DDP and so on

24 pcs LC Duplex adapter

24 port sc simplex adapter
