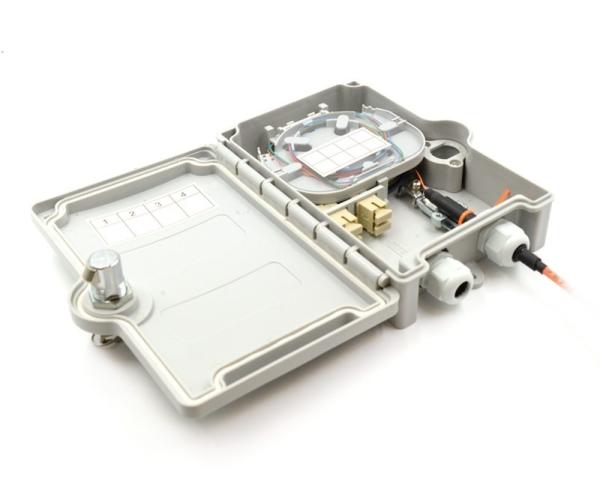

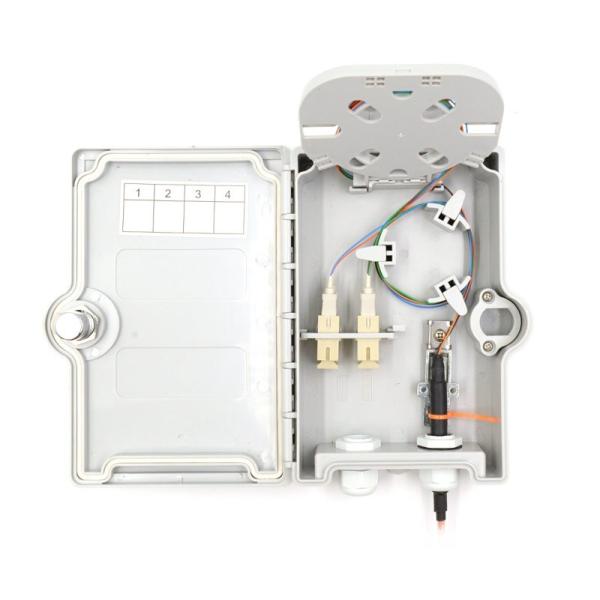

IP55 Protection Fiber Optic Termination Box FTTx 4 Fiber PC ABS Material Dust Proof
IP55 Protection Fiber Optic Termination Box FTTx 4 Fiber PC ABS Material Dust Proof
IP55 Protection Fiber Optic Termination Box FTTx 4 Fiber PC ABS Material Dust Proof
IP55 Protection Fiber Optic Termination Box FTTx 4 Fiber PC ABS Material Dust Proof
IP55 Protection Fiber Optic Termination Box FTTx 4 Fiber PC ABS Material Dust Proof
IP55 Protection Fiber Optic Termination Box FTTx 4 Fiber PC ABS Material Dust Proof
Specifications
Brand Name :
Unique-Tel
Model Number :
ZDH04
Certification :
CE RoHS
Place of Origin :
China
MOQ :
10 Pieces
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
1000 Pieces/Month
Delivery Time :
5 work days
Packaging Details :
carton packaging
Input port :
1
Outlet port :
1
Adapter :
Yes
Type :
SC/FC/ST/LC
Application :
FTTx Network
Pressure :
62kPa-105kPa
Packaging :
20 pcs per carton
Dimension :
207mm x 152mm x 51.7mm
Description

IP55 Protection FTTx 4 Fiber Optical Distribution Box Termination Box Network

Overview

Unique-Tel ZDH04 optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features

PC+ABS material used ensures the strong body

Moisture-proof, water-proof, dust-proof, anti-aging

Easy installations: Ready for wall mount – installation kits provided

Space saving: Double-layer design for easier installation and maintenances

Protection level up to IP55

Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses

Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapt or installation, easy maintenance.

Specifications

Dimensions and Capability
Adapter Capacity LC Duplex SC Simplex
4 4
Dimensions (W*D*H) 167mm*31mm*102mm
Number of Cable Entrance Max Diameter 14mm*Q1
Number of Cable Exit Up to 4 Drop Cables
Weight 0.32 KG
Optional Accessories Adapters, Pigtails, Heat Shrink Tubes
Installation Wall-Mounted or Pole-Mounting
Operation Conditions
Temperature -40℃ -- 60℃
Humidity 93% at 40℃
Air Pressure 62kPa – 101kPa

Shipping Information
Package Contents Distribution box, 1 unit; Keys for lock, 2 keys
Wall mount installation accessories, 1 set
Package Dimensions(W*H*D) 190mm*50mm*120mm
Material Carton box
Weight 0.82 KG
Lead Time 10-15 working days normally

IP55 Protection Fiber Optic Termination Box FTTx 4 Fiber PC ABS Material Dust Proof
