12 Position Fiber Optic Joint Enclosure Adhesive Back Fiber Insert Design
12 Position Fiber Optic Joint Enclosure Adhesive Back Fiber Insert Design
12 Position Fiber Optic Joint Enclosure Adhesive Back Fiber Insert Design
12 Position Fiber Optic Joint Enclosure Adhesive Back Fiber Insert Design
Specifications
Brand Name :
Unique-Tel
Model Number :
RXP06
Certification :
CE RoHS
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10000 Pieces/Month
Delivery Time :
5 work days
Packaging Details :
carton packaging
Length :
7 in
Width :
4.75 in
Depth :
0.5 in
Holder :
Adhesive
Coating :
Electro statically applied powder coat
Capacity :
12 Single fusion splice, 48 Mass fused fiber
Description

12 Position Aluminum Splice Tray Adhesive Back Fiber Insert Design 7x4.75x0.5 In

Overview

Fiber splice tray is generally used to hold and protect individual fiber optic splices. There are mainly two types of fiber optic splices, one is fusion splices, the other one is mechanical splices. Fiber splice trays for fusion splices and mechanical splices are not the same. It is suggested to use specialized fiber splice trays for different fiber splices. Another important factor of fiber splice tray is the fiber count that it can hold. Most fiber splice tray can hold up to 24 fiber splices. 12-fiber splice trays are the most commonly used fiber splice tray in fiber optic network.

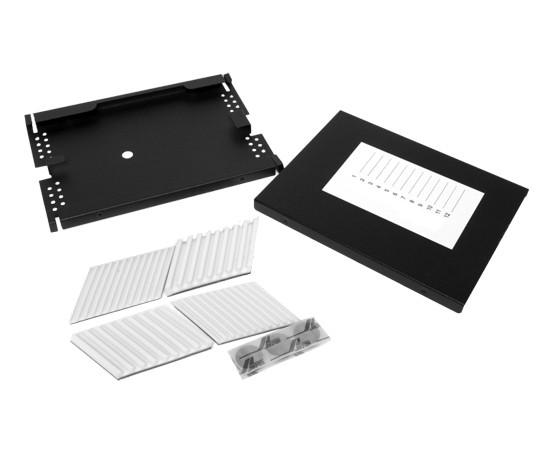

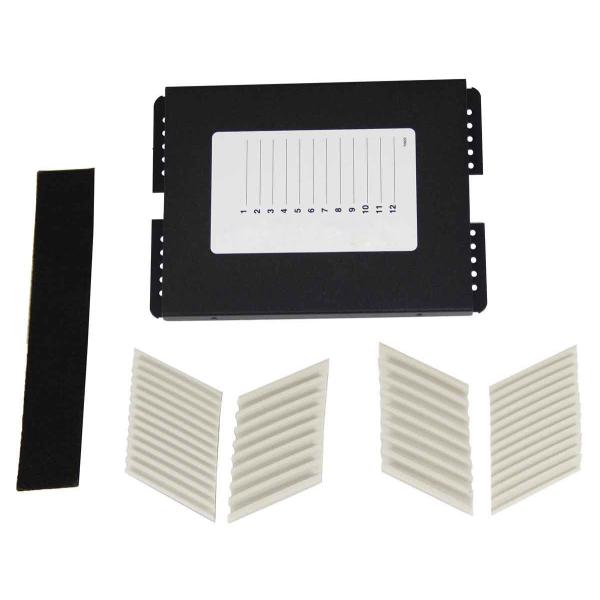

The RXP06 Optical Fiber Splice Tray is designed to safely route and store optical fiber and associated splices. The tray is fully compliant to industry specification Telecordia GR-769, Splice Organizer Assemblies for Optical Fibers. The RXP series splice tray is designed to be installed into Unique-Tel FDUs or in the Unique-Tel JXH Series Optical Fiber Splice Closure. The tray is one of a family of units that support fiber splicing.

Features

12 Single fusion splice capacity.

48 Mass fused fiber capacity.

8 Mechanical splice capacity.

Adhesive backed fiber insert holders and assorted cable ties included.

Left and right oriented splice holders.

Provide protection and organization of fiber splices.

Specifications

Dimensions 7.0”Lx4.75”W x.50”D
Capacity (12) Single or (48) Mass Fused Fibers
Material Aluminum
Coatings Electro statically applied powder coat

12 Position Fiber Optic Joint Enclosure Adhesive Back Fiber Insert Design12 Position Fiber Optic Joint Enclosure Adhesive Back Fiber Insert Design
