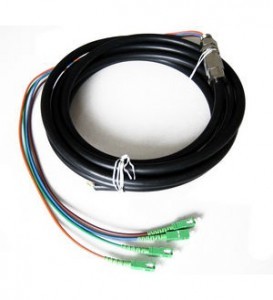

Outdoor Waterproof Pigtail Anti Corrosion Strong Tensile Ability Customized Pigtail

Summary

Waterproof pigtail ,is processing of optical fiber connector connecting with the optical receiver, optical workstation and other optical devices on one end, the other end is used for the splice with optical fiber line.widely used in radio and television. It feature strong tensile resistance, waterproof etc..

Waterproof fiber pigtails can be used in harsh environment. It is mainly used in outdoor connection of the optical transmitter. Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables.

Waterproof fiber pigtails are widely used in data transmission network, typical types are with 2 fiber cores, 4 fiber cores or 8, 12 fiber cores. By adopting the special structure cables and connectors, these fiber cable assemblies are widely used in CATV and other applications.

Unique-Tel provides waterproof pigtail, assemblies fiber pigtail with ST, FC, SC, LC, MU, MTRJ, E2000.... fiber Connector, Single mode and multi mode.

Our waterproof fiber pigtails are with strong PE jacket and waterproof sealed head connectors. Easily and reliable installment, long life, good toughness, and well done in the serious environment are their characteristics. Our waterproof fiber pigtails strictly according to IEC standards, the products feature low insertion loss, high return loss, good interchange ability and repeat push-pull performance, which make them easy to use.

Application

1)meet with ANSI,Bellcore,TIA/EIA,IEC etc international standards ,also accord with the industrial standards of Telecom

in China

2)Realized the active link of optic fiber transmission,and the multi core in a sheath, which is convenient for unified wiring

management.

3)low insertion loss and high return loss

4)Excellent repeat-ability and interchangeability

Feature

Outdoor use, waterproof, anti-corrosion

Containing metal reinforcement wire, good mechanical performance, strong tensile ability

Low insertion loss and high return loss

Can select a single mode or multimode ,2, 4, 6, 8, 12 cores optional

Low insertion loss and back reflection loss

Good exchangeability

Good Durability

High temperature stability.

Standard: Telecordia GR-326-CORE

Precise connector

Excellent mechanical capability

Patch cords accord with bellcord GR-326 ,ISO9001,ROHS

Technical data

1) insertion loss:<=0.2db

2) return loss: >=50db(UPC type),>=60db(APC type)

3) work temperature: -40℃～+80℃

4) repeat-ability: high

5) interchangeability: excellent

6) plug times: over 1000 times
