Specifications
Brand Name :
Unique-Tel
Model Number :
Network Cabinet
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Packaging Details :
carton box
Delivery Time :
within 10 days of payment
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/month
Color :
Black
Rack unit :
42U
Width :
600/800mm
Depth :
600-1200mm
Protection :
IP20 Protection Standard
Package :
Assembled/Disassembled
OEM service :
Available for server rack
Material :
1.5mm thickness steel sheet
Description

42U Heavy Duty Loading Steel Material Telecom Network Equipment Rack

Overview

This cost-effective range of server cabinets is available in a combination of 600mm or 800mm widths with a 600mm,800mm or 1000mm depth. All cabinets are available in 18U to 42U heights with either a glass or mesh front door.

Complied with Standards:

ANSI/EIA RS-310-DIEC297-2DIN41494;PART1DIN41494;PART7, ETSI standard.

Thickness:

Mounting Rail: 1.5/2.0mm,Frame of front door: 1.5mm

Others:1.0 or1.2mm

Features

1. Material:Cold rolled steel with powder coat finishing

2. 19 inch standard floor Cabinet,available from 18U to 42U.

3. Lockable key type and reversible quick-release front and rear doors.

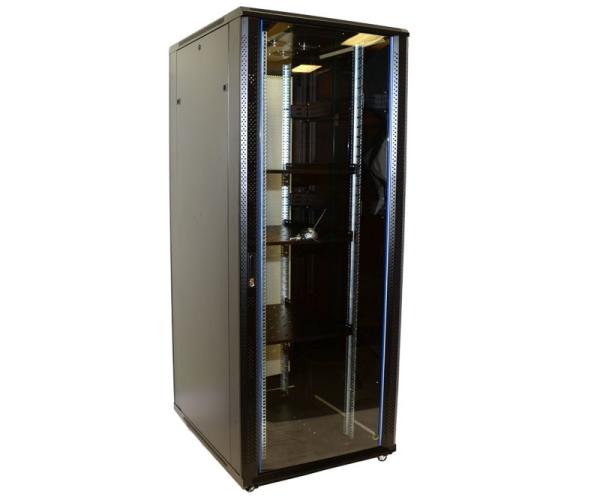

4. Front door with safety but toughened glass,easy to check the status inside of the cabinet without open the door.

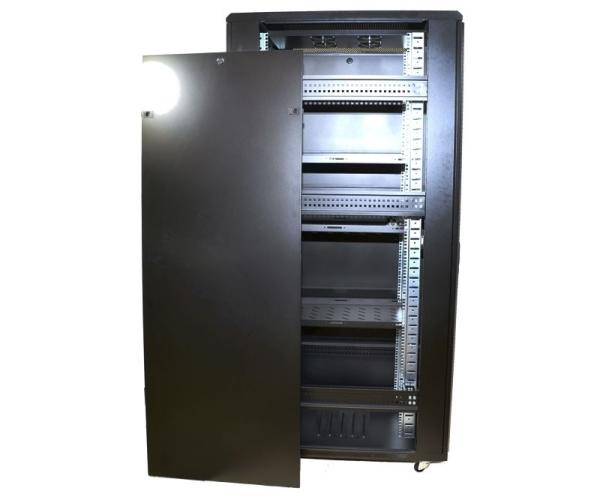

5. Perforated steel rear door

6. Size: Wideth:600mm or 800mm.Depth:600mm or 800mm or 1000mm,800mm or 1000mm.

7. Packing:Whole pack or in Bulk

Main Structure

1. Top cover

2. Fan unit (option)

3. Mounting angle

4. Side panel (option lock)

5. Aluminum alloy frame

6. Mounting profile

7. Tempered glass (front door)

8. Advanced moon-shaped lock

9. Bottom panel

10. Adjustable feet

11. 2''castor

12. Perforated door (rear door)

Specification

NO. Item 600W 800W Materials Treatment Note
1 Frame 2 2 1.5mm SPCC steel Powder coating
2 Front Door 1 1 5.0 mm glass vented metal border
3 Side Panel 2 2 1.2mm SPCC steel Powder coating Removable
4 Back Door 2 2 1.2mm SPCC steel Powder coating
5 Lock 1 1 Zinc alloy Handle Lock
6 Top cover 1 1 1.2mm SPCC steel Powder coating
7 Cylinder lock 1 1 Zinc alloy
8 Fan unit 1 1 1.2mm SPCC steel Powder coating
9 Ac fan 2 or 4 2 or 4 D>800,4 pcs
10 Bottom panel 1 1 1.2mm SPCC steel Powder coating Optional parts
11 Earthing cable 1 1 Y/G cable 25 cm
12 Castors tray 4 4 SPCC T=2.5 Powder coating
13 Castors 4 4
14 Adjustable feet 4 4 Steel Brass plated M12
15 Mounting angle 6 6 SPCC T=1.2 Powder coating
16 19inch rails 4 4 SPCC T=2.0 Powder coating
17 Vertical C/M 2 SPCC T=1.2 Powder coating Only for 800 W
