Aerial Figure 8 Outdoor Fiber Optic Cable Steel Wire High Tensile Strength
Aerial Figure 8 Outdoor Fiber Optic Cable Steel Wire High Tensile Strength
Aerial Figure 8 Outdoor Fiber Optic Cable Steel Wire High Tensile Strength
Aerial Figure 8 Outdoor Fiber Optic Cable Steel Wire High Tensile Strength
Specifications
Brand Name :
Unique-Tel
Model Number :
NWGL09
Certification :
RoHS
Place of Origin :
China
MOQ :
1000 Meters
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10000 Meters/Month
Delivery Time :
5 work days
Packaging Details :
fiber optic reel
Outer Sheath :
PE
Mental Type :
1.0mm*7
Gallus :
PE Material
Storage :
-40℃～+70℃
Model No. :
GYFTC8A
Armor Material :
Aluminum Tape
Diameter :
1.4(6-48) 2.0(72-144)
Fibers :
6 ,12, 24, 48 ,72, 96 ,144
Description

Aerial Figure 8 Outdoor Fiber Optic Cable Steel Wire with High Tensile Strength

Description

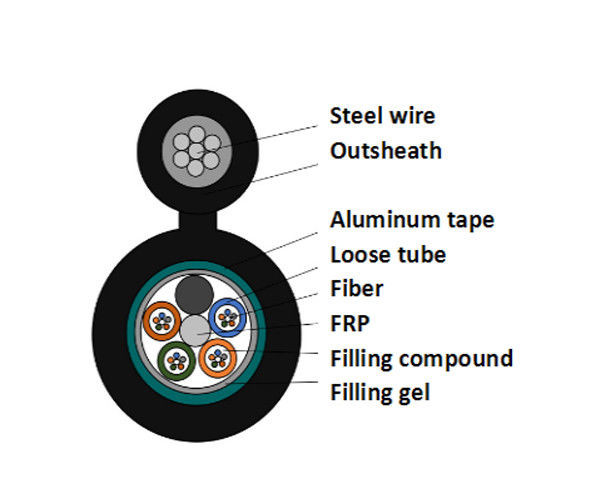

Unique-Tel figure of 8 aerial cable, for spans up to 70m, consists of 250µm optical fibers in gel filled loose tubes with interstitial gel. Water barrier aluminium tape or steel tape armouring options are available. Tensile strength is provided by a steel messenger wire. The cable jacket is black high density polyethylene (HDPE).

Application

• Adopted to outdoor distribution.
• Suitable for aerial, pipeline laying method.
• Long distance and local area network communication.

• Aluminium moisture barrier tape and corrugated steel tape options

• Stranded wires as self-supporting member providing excellent strain performance and convenient installation

• Up to 144 fibers with single or multimode options available

• The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube, which keeps the fiber stress free while the cable is subjected to longitudinal stress

Features

1. Non-metal strength has an excellent anti-electromagnet ability.
2. Loose tube design for good performance.
3. Excellent mechanical and environmental characteristics.
4. Good flexibility and bending performance.
5. Small outer diameter,light weigh easy to installation.
6. 100% cable core filling.
7. Aluminum tape moisture barrier.

Specifications

Armor Material: Aluminum Tape
Color: Black
Diameter: 1.4(6-48) 2.0(72-144)
Mental Type: 1.0mm*7
Gallus Size (h*w): 2.5*1.5mm
Storage Temperature: -40℃～+70℃

No. Of Fibers: 6 ,12, 24, 48 ,72, 96 ,144
Model: GYFTC8A
Central Strength Member Material: FRP
Mental Strength Member Material: Stranded Steel Wire
Gallus Material: PE
Out Sheath Material: PE
Installation Temperature: -10℃～+60℃

Fiber type Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.24 ≤3.0/1.5 ≤3.0/1.5
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0

Aerial Figure 8 Outdoor Fiber Optic Cable Steel Wire High Tensile Strength
