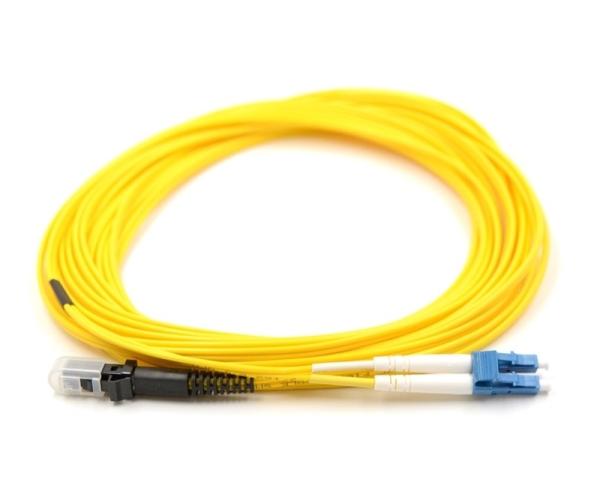

LC to MTRJ Singlemode Duplex Fiber Jumper 10m with PC UPC APC Connectors

Description

Fiber optic jumper is a piece of fiber cable with same connectors installed on both side of the cable. Fiber optic jumper is used to link the equipment and components in the fiber optic networks.
Generally speaking there are two types of fiber optic jumpers, one is single mode, the other is multimode. Single mode fiber jumper cables are usually with yellow colored jacket and multimode fiber jumper cables are with orange color. Connectors installed on the fiber optic jumper cables can be various types include SC, ST, FC, LC, MU, MTRJ, E2000, and etc. these connectors on the jumpers can be PC or UPC or APC (only available on single mode types) types.
Simplex fiber optic jumper is with only one connector on each side of the cable, and the whole jumper is one strand of optical fiber in the cable. Duplex fiber optic jumper can be regarded as two simplex joined to each other side by side.
Most important parameter of the fiber optic jumpers is the insertion loss and return loss. Fiber optic jumpers can be with different length and cable types. There are different jumper cables For different applications, like waterproof fiber optic jumper, armored fiber optic jumper, multi fiber jumper cable and laser optimized fiber optic jumper.

Features

The LC fiber optic patch cable is with a small form factor (SFF) connector and is ideal for high density applications.LC fiber optic patch cord connector has a zirconia ceramic ferrule measuring 1.25mm O.D. with a PC or APC endface, and provides optimum insertion and return loss.

100% Optically inspected and tested for insertion loss

Pull-Proof Jacket

Immune to electrical interference

ROHS Compliant

Applications

LC MTRJ single mode duplex fiber optic patch cable applications
Parallel optical interconnect between PC cards and patch panels
Interconnection for O/E modules
Optical Switch interface connections
Gigabit Ethernet
CATV
Video
Active Device / Transceiver Interface
Premise Installations
Telecommunication Networks
Multimedia
Industrial & Military

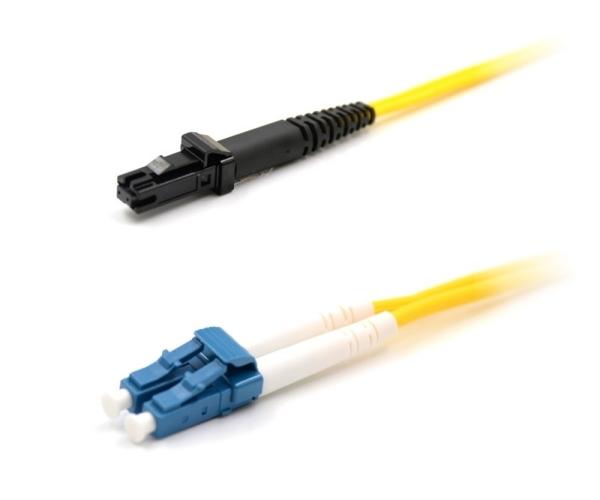

MTRJ LC duplex single mode fiber optic patch cable features
Precision fiber optic ferrule
High precision exact alignment
IEC Compliant
Telcordia compliant
UPC, PC or APC polished connectors
