Twisted Pair Network Cable Accessories , 110 Punch Down Type Cat6 Junction Box
Twisted Pair Network Cable Accessories , 110 Punch Down Type Cat6 Junction Box
Twisted Pair Network Cable Accessories , 110 Punch Down Type Cat6 Junction Box
Twisted Pair Network Cable Accessories , 110 Punch Down Type Cat6 Junction Box
Twisted Pair Network Cable Accessories , 110 Punch Down Type Cat6 Junction Box
Twisted Pair Network Cable Accessories , 110 Punch Down Type Cat6 Junction Box
Twisted Pair Network Cable Accessories , 110 Punch Down Type Cat6 Junction Box
Twisted Pair Network Cable Accessories , 110 Punch Down Type Cat6 Junction Box
Specifications
Brand Name :
Unique-Tel
Model Number :
Junction Box
Certification :
CE RoHs
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10000 pcs per week
Delivery Time :
1 week
Packaging Details :
100 pcs in a plastic bag. 50 bags per carton
Name :
Junction Box
Material :
ABS/SPCC
Color :
White/Silver Grey
No. of Pin :
8
Cable Range :
CAT5, CAT5E, CAT6, CAT6A
Termination :
Toolless/Punch Down
Description

CAT6 Twisted Pair Cable Inline Junction Box Distribution Box 110 Punch Down Type

Description

Junction box is for splicing two Ethernet Cat.6 cables together without the use of connectors and couplers; if you're going to joint 2 wires together permanently, it's best to have as direct a connection as possible. The punch down connection provides secure continuity. 110 and Krone punch down type For use with Cat.6 cable Wire gage: 23 to 26 AWG 568A/568B color coded

Electrical Features

  • Current rating: 1.5 Amps
  • Insulation resistance: 500 Mohm
  • Contact resistance: 20 mOhm
  • DC resistance: 0.1 Ohm
  • Dielectric withstanding voltage:1000 V

Material

  • Housing: ABS, UL 94V-0
  • IDC plastic: PC, UL 94V-0
  • IDC contact: Phospher Bronze with 200u" Tin over 100u" Nickel undercoat
  • Temperature: -40°C ~ 68°C
  • Humidity: 10% ~ 90% RH
  • Idc block:200 termination cycles

Specification

Physical Characteristics

Body Material

Housing: PC, UL94 V-0

Jack Contact

phosphor bronze, 50μ inch gold plated over nickel

IDC Contacts

100μ inch nickel plated over phosphor bronze

Electrical Characteristics

Dielectric Strength

1000V RMS for 1min

Current Rating

1.5Amp Max.

Insulation Resistance

10MΩ Min.

Contact Resistance

2mΩ per contact

Temperature Range

-10°C to 60°C

Humidity

10%~90%; non condensing

Admissible Conductor

22AWG ~ 26AWG insulation wire

Body Material

Housing: PC

Body: Zinc Die-casting

Jack contact

Phosphor bronze, 50μ inch gold

plated over nickel plated in contact area

Operating life: Minimum 750 insertions

100μ inch nickel plated over phosphor bronze

IDC Contacts

Operating life: Minimum 250 Re-terminations

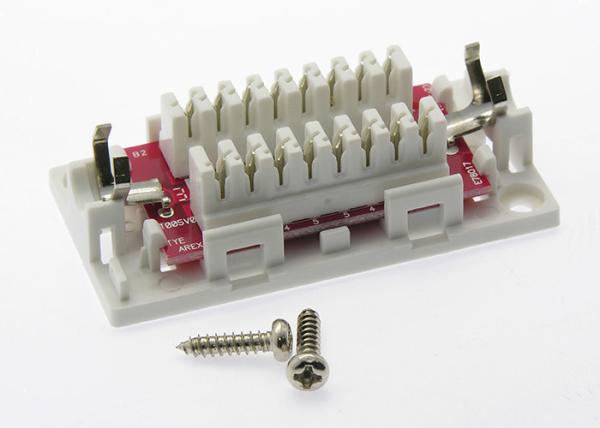

Product Picture

Twisted Pair Network Cable Accessories , 110 Punch Down Type Cat6 Junction Box

Product tags

junction box cable

,

cat6 cable junction box

,

cable terminal connectors
