Toolless LAN Cable Accessories RJ45 Connector / Jack For 8 Pin Solid Punch Down Type
Toolless LAN Cable Accessories RJ45 Connector / Jack For 8 Pin Solid Punch Down Type
Toolless LAN Cable Accessories RJ45 Connector / Jack For 8 Pin Solid Punch Down Type
Toolless LAN Cable Accessories RJ45 Connector / Jack For 8 Pin Solid Punch Down Type
Toolless LAN Cable Accessories RJ45 Connector / Jack For 8 Pin Solid Punch Down Type
Toolless LAN Cable Accessories RJ45 Connector / Jack For 8 Pin Solid Punch Down Type
Toolless LAN Cable Accessories RJ45 Connector / Jack For 8 Pin Solid Punch Down Type
Toolless LAN Cable Accessories RJ45 Connector / Jack For 8 Pin Solid Punch Down Type
Specifications
Brand Name :
Unique-Tel
Model Number :
RJ45
Certification :
CE RoHs
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10000 pcs per week
Delivery Time :
1 week
Packaging Details :
100 pcs in a plastic bag. 50 bags per carton
Name :
RJ45 connector
Material :
PVC Plastic
Pin Material :
Copper or Gold coated
No. of Pin :
8
Cable Range :
CAT5, CAT5E, CAT6, CAT6A
Termination :
Toolless/Punch Down
Description

Toolless RJ45 Connector and Jack for 8 Pin Solid LAN Cable Punch Down Type

Description

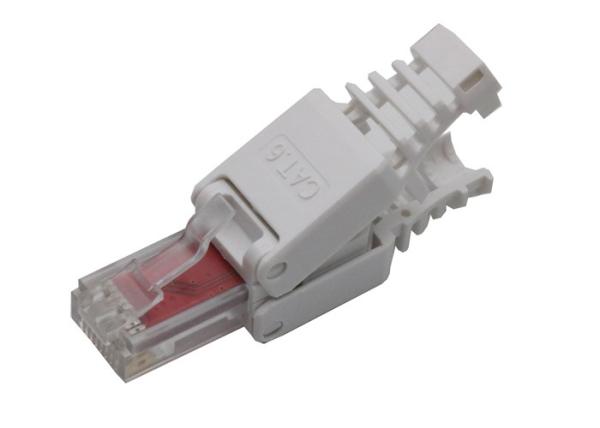

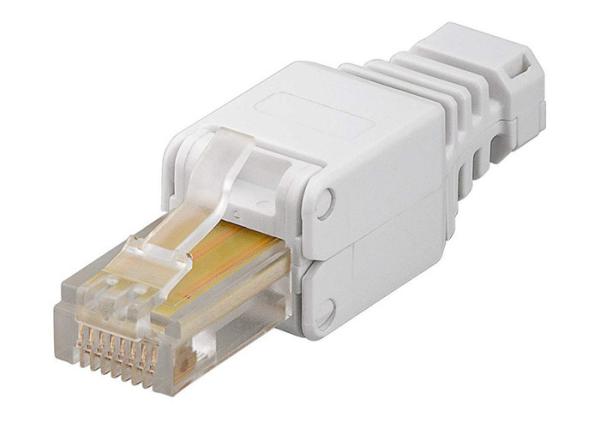

Cat.5E Cat.6 RJ-45 TOOLLESS plug is 8-position 8-conductor (8P8C) and designed for computer networking. The unique toolless design does not require the use of a crimping tool. Simply insert the leads following the color coding, and press down the lid. 568A and 568B color wiring diagram is integrated on the lid for easy installation.

Main Feature

  • CAT 6 rated connector provide excellent performance for data networks requiring maximum speed and bandwidth

  • PCB technology provides maximum performance and superior signal quality

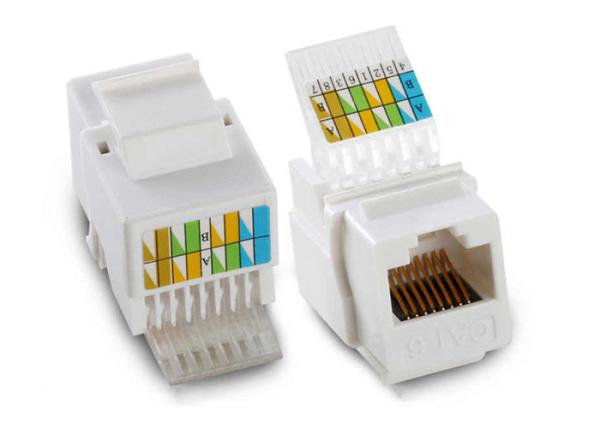

  • Includes an integrated TIA-568A/B color wiring diagram

  • Backwards compatible to all lower rated category components

  • Compatible with all InstallerParts wallplates, surface mount boxes, and blank patch panels

  • Applicable wire gage: 23 to 26AWG

  • IDC (Insulation Displacement Connector)

  • No need to strip the wire before connecting

Specification

Physical Characteristics

Body Material

Housing: PC, UL94 V-0

Jack Contact

phosphor bronze, 50μ inch gold plated over nickel

IDC Contacts

100μ inch nickel plated over phosphor bronze

Electrical Characteristics

Dielectric Strength

1000V RMS for 1min

Current Rating

1.5Amp Max.

Insulation Resistance

10MΩ Min.

Contact Resistance

2mΩ per contact

Temperature Range

-10°C to 60°C

Humidity

10%~90%; non condensing

Admissible Conductor

22AWG ~ 26AWG insulation wire

Body Material

Housing: PC

Body: Zinc Die-casting

Jack contact

Phosphor bronze, 50μ inch gold

plated over nickel plated in contact area

Operating life: Minimum 750 insertions

100μ inch nickel plated over phosphor bronze

IDC Contacts

Operating life: Minimum 250 Re-terminations

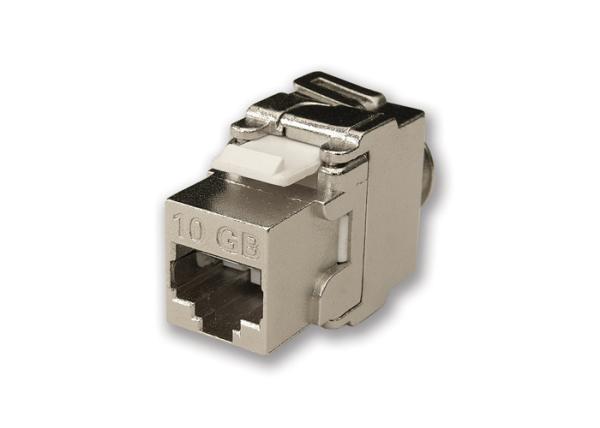

Product Picture

Toolless LAN Cable Accessories RJ45 Connector / Jack For 8 Pin Solid Punch Down TypeToolless LAN Cable Accessories RJ45 Connector / Jack For 8 Pin Solid Punch Down Type
