Temporary Lan Cable Bulk Cat5e Cable , CCA Conductor Shielded Cat5e Cable PVC Jacket
Temporary Lan Cable Bulk Cat5e Cable , CCA Conductor Shielded Cat5e Cable PVC Jacket
Temporary Lan Cable Bulk Cat5e Cable , CCA Conductor Shielded Cat5e Cable PVC Jacket
Temporary Lan Cable Bulk Cat5e Cable , CCA Conductor Shielded Cat5e Cable PVC Jacket
Temporary Lan Cable Bulk Cat5e Cable , CCA Conductor Shielded Cat5e Cable PVC Jacket
Temporary Lan Cable Bulk Cat5e Cable , CCA Conductor Shielded Cat5e Cable PVC Jacket
Specifications
Brand Name :
Unique-Tel
Model Number :
CAT5E CCA
Certification :
None
Place of Origin :
China
MOQ :
1 Box
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10000 Meters/Month
Delivery Time :
5 work days
Packaging Details :
305m per box, or 1000m per reel
Type :
Cat 5E CCA
Color :
Blue Gray or other
Conductor :
24 AWG 0.53mm CCA
Application :
Networking
Jacket :
PVC
Length :
1000Ft/305Meter, Different length available
Description

Temporary Use Lan Cable CAT5E CCA Conductor Ethernet Cable PVC Jacket

Applications

CAT5E CCA Lan cable is just for temporary use in network connection. For long time use and long transmission distanct, please choose solid copper conductor LAN cable such as CAT5, CAT5E, CAT6, CAT6A etc.

Reference Standard

EIA/TIA 568A & ISO/IEC 11801

Cable Construction

Pairs: 4
Conductor: CCA AWG 24
Conductor Dia.: 0.53 ± 0.01
Insulation: HDPE
Insulation Dia: 0,97 (±0.08mm)
Jacket: PVC
Diameter: 5,20 (±0.15mm)
Jacket Color: Grey(RAL7001)

Characteristics

Max. DC Resistance at 20oC (Ω/Km): <172

Rated Temperature (oC) : –15 a 60ºC

Frequency RL Attenuation NEXT ACR
(MHz) (dB) min. (dB/100m) max (dB) (dB)
0.722 22.6 1.82 67 65
1,000 23.1 2.1 65 63
4,000 23 4.3 56 51
8,000 24.5 5.8 51.8 45
10 25 6.6 50 43
16 25 8.2 47 37
20 25 9.2 45 35
25 24.2 10.23 44.3 32
31.25 23.3 11.8 43 29
62.5 20.7 17.1 38 19
100 19.24 22 35 9

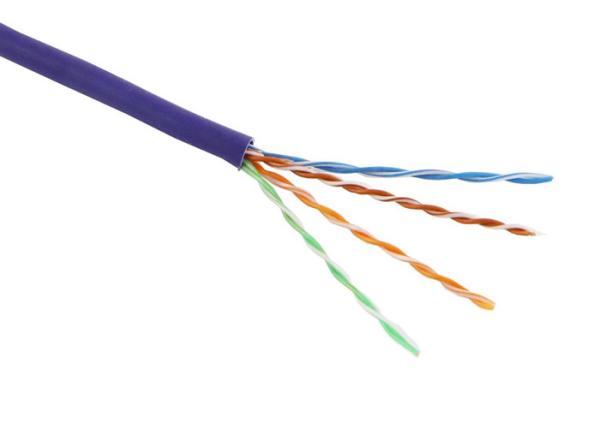

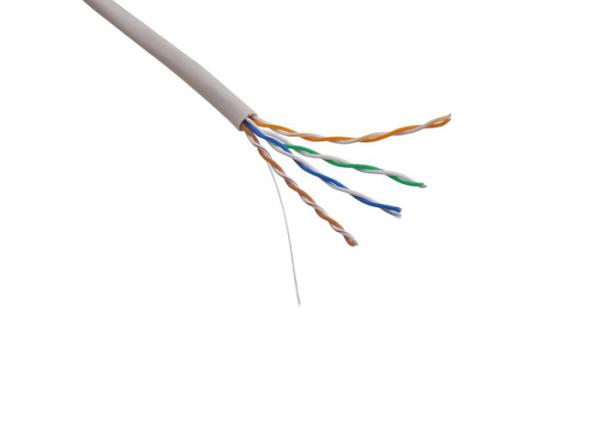

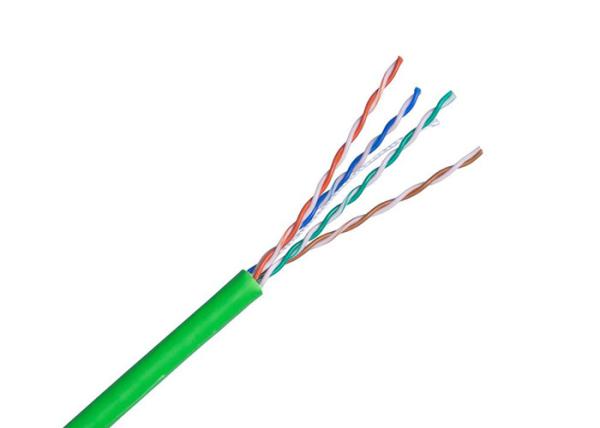

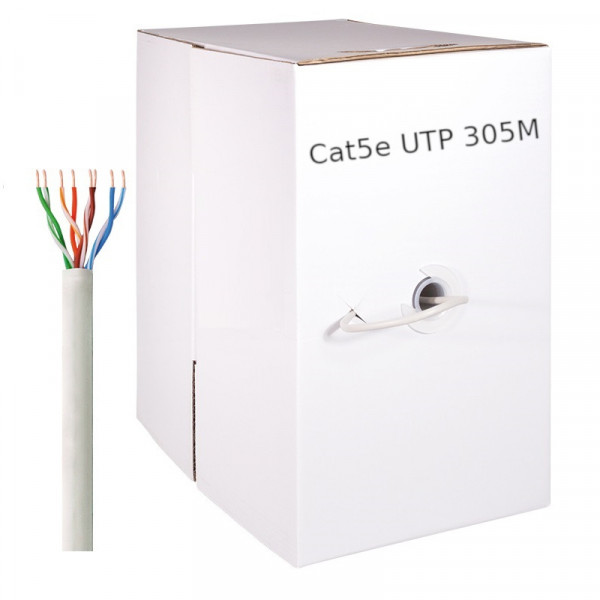

Product Pictures

Temporary Lan Cable Bulk Cat5e Cable , CCA Conductor Shielded Cat5e Cable PVC Jacket
