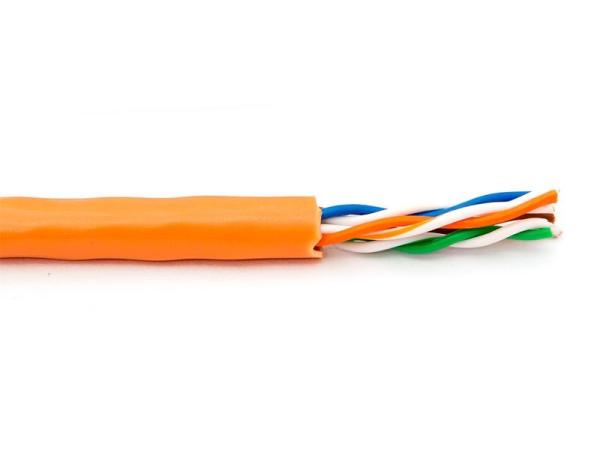

FRNC / LSZH 500MHz Bulk CAT Cable Cat 6a With Copper Braid Foil Screen 23AWG
FRNC / LSZH 500MHz Bulk CAT Cable Cat 6a With Copper Braid Foil Screen 23AWG
FRNC / LSZH 500MHz Bulk CAT Cable Cat 6a With Copper Braid Foil Screen 23AWG
FRNC / LSZH 500MHz Bulk CAT Cable Cat 6a With Copper Braid Foil Screen 23AWG
Specifications
Brand Name :
Unique-Tel
Model Number :
CAT01
Certification :
RoHS
Place of Origin :
China
MOQ :
1000 Meters
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10000 Meters/Month
Delivery Time :
5 work days
Packaging Details :
fiber optic reel
Type :
Cat 6a
Color :
Customized
Conductor :
0.57mm(23AWG)
Application :
Networking
Jacket :
PVC/LSZH/LDPE
Length :
1000Ft/305Meter, Different length available
Description

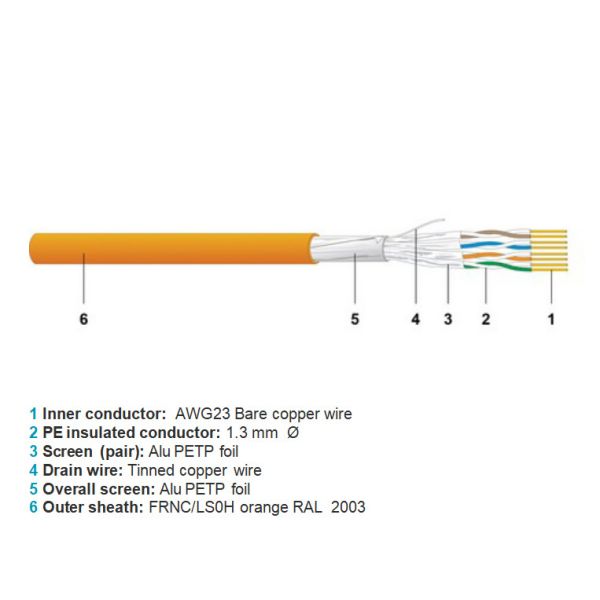

Bulk 6A Cable F/FTP FRNC/LSZH 500MHz Cable with Copper Braid Foil Screen 23AWG

Description

Electrically and mechanically improved quality Cat. 6A data cable - fulfils the requirements of ISO/IEC 11801, IEC 61156-5, EN 50173-1 and prEN 50288-10-1. Excellent shielding effect due to individually screened pairs and overall foil screen.

Compatible with all current connecting hardware in accordance with EN 50173 and ISO/IEC 11801.

Meain Features

Loop resistance at 20° C: 150 Ω/km

Mutual capacitance: 42 pF/m

Impedance at 100 MHz: 100 Ω ±5 Ω

Transfer impedance at 1/10/30 MHz: < 50/100/200 mΩ/m

Coupling attenuation

(limit curve of critical state - IEC 61156): Near end unbalance attenuation

LCL at 1/10/100 MHz:

> 70 dB

> 40 dB

Delay Skew: 5 ns/100 m

NVP: 79 %

Mechanical Properties

Bending radius (flat side)

CU 6552 4P CU 6552 2x4P F8

during draw-in: ≥ 56 mm ≥ 56 mm

permanently installed: ≥ 28 mm ≥ 28 mm

Tensile strength: ≤ 95 N ≤ 190 N

Crush resistance: ≥ 1000 N/10 cm

Impact: ≥ 10 impacts

Temperature range during installation: 0° C to + 50° C in operation: -20° C to + 60° C

STANDARDS

Wire colour white/blue white/orange white/green white/brown in accordance with IEC 60189 and IEC 60708

Flame spread IEC 60332-3-24, EN 60332-3-24, AREI-RGIE Art.104-F2

Smoke density IEC 61034-1/-2, EN 61034-1/-2 , VDE 0482-1034-1/-2, AREI-RGIE Art.104-SD

Reaction to fire (Euroclasses) EN 13501-6: Dca-s2,d1,a1 PoE IEEE 802.3af

EMC shielded

Segregation class c

Cat./Class Cat 6A / Class EA - limit values as specified by IEC 61156-5 and EN 50288-10-1 guaranteed

Specification

ELECTRICAL CHARACTERISTICS
Category 5e 6 6A
Frequency [MHz] 1 4 10 100 250 500
Attenuation [dB/100m] 2.1 3.8 5.9 19 30 43
NEXT [dB] 93 93 93 93 83 75
PS NEXT [dB] 90 90 90 90 80 72
ACR-N [dB] 91 89 87 73 53 32
PS-ACR-N [dB] 88 86 84 70 50 29
ACR-F [dB] 96 96 96 74 56 33
PS-ACR-F [dB] 93 93 93 71 53 30

Return loss [dB]

These performance data are typical measured values.

 26 28 30 30 27 21

Application

Data cable for structured premises cabling.

For the transmission of digital and analogue voice, video and data signals.

Suitable for all ICT network applications up to class EA applications (500 MHz) in accordance with EN 50173-1 and ISO/IEC 11801. Applicable for Power over Ethernet (PoE) / PoE+.
