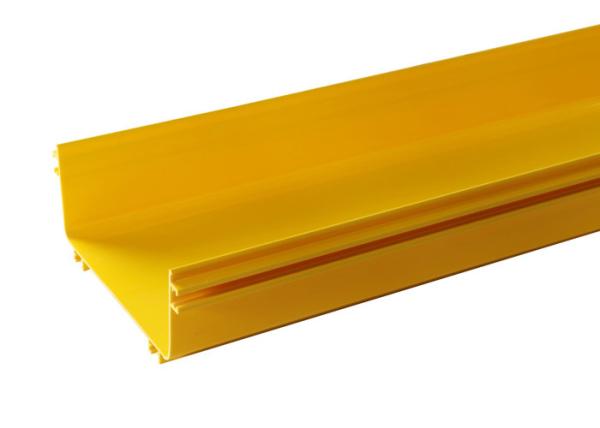

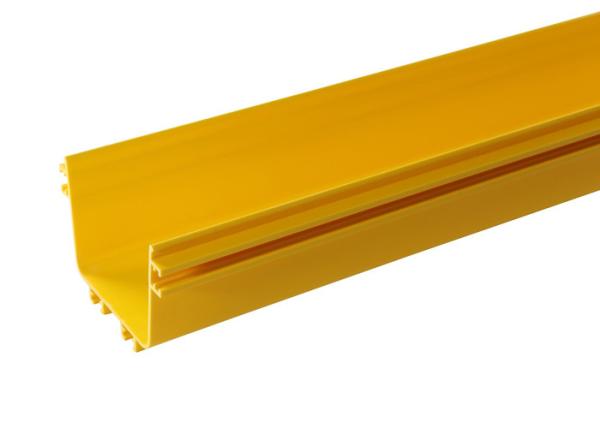

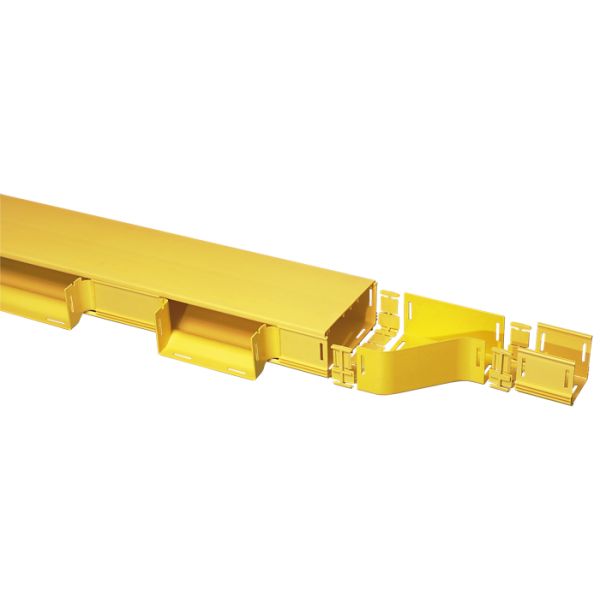

Data Center Fiber Optic Cable Tray PVC Yellow Overhead Fiber Cable Raceway

Introduction

This cable tray system for routing fiber optic cabling provides an enclosed, protective raceway specifically designed for the needs of fiber. With a full line of accessories and joints including elbows, cross and tee sections, plus covers and fiber-duct slotted channels, you can create a comprehensive routing system for your fiber installation

The overall design of fiber channel and tail fiber routing channel is reasonable in layout, uniform in appearance and neat in appearance.

Fiber channel, tail fiber channel product specifications: depth 100mm, width 120mm (5 inches) and depth 100mm, width 240mm (10 inches) two options.

Can meet the needs of all positions, equipped with large output port to meet the needs of large capacity output, output port with bellows protection fiber. Elbow, tee, tee and all kinds of diameter change direction of the joint, can meet a variety of routing; bypass obstacles; flexible and convenient configuration. Standardized module design, quick and easy installation. The fiber tailing channel is connected reliably, and it can be fixed up or down with the grid bridge frame, U-shaped steel wire frame and aluminum alloy wire frame.

Advantages

a. Main Line PVC material, accessories made of ABS Material.

b. Fire Resistant.

c. Flame-retardant

d. LS0H

e. QuickLock couplers provide quick and easy tool-free installation

Specification

Installation Suggestions

A. Large-size fiber outlet is suitable for high-capacity fiber discharge in the fiber channel of steel or aluminum alloy;

B. Medium size fiber outlet, suitable for fiber shedding of steel or aluminum fiber channel with conventional capacity;

C. Small size fiber outlet is suitable for a small amount of fiber discharge in the fiber channel of steel or aluminum alloy;

D. Multi-function mobile fiber outlet is suitable for fiber shedding with conventional capacity in fiber channel of steel or aluminum alloy, strong versatility;

E. Mobile fiber outlet is suitable for fiber shedding of conventional capacity in the fiber channel of steel or aluminum alloy;
