Specifications
Brand Name :
ELTEK
Model Number :
Flatpack2 48/1800
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/month
Delivery Time :
within 10 days of payment
Packaging Details :
carton box
Part No. :
241115.001
AC Input voltage :
85-300V AC (Nominal 185 – 275V AC)
DC Output voltage :
53.5V DC (adj. range: 43.5-57.6V DC)
Output Power :
1800 W at nominal input
Output Maximum Current :
37.5 Amps at 48V DC
Efficiency :
Typical 92% Min.91% at 40~90% load.
Description

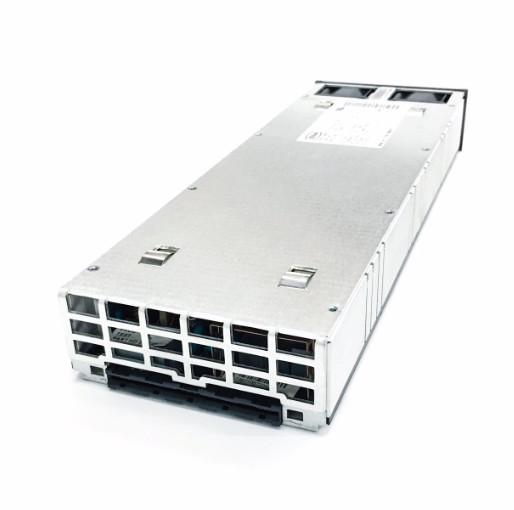

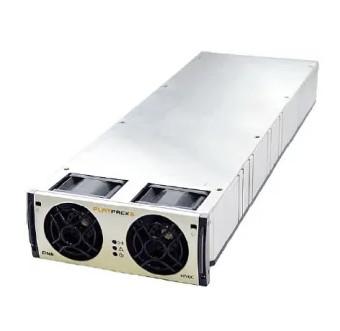

Eltek Flatpack2 48/1800 48V 1800W rectifier module (Code: 241115.001)

Flatpack2 Rectifier Module 48/1800
Versatile and powerful solution for any application

The combination of cost-effective design, power density and reliability makes the Flatpack2 a product family that truly stands
Outs and provides unparalleled network availability. The versatility of the Flatpack2 rectifier means that it can be used in a wide variety of 48VDC and 24VDC applications across the globe.

Application:
1. Wireless, fiber and fixed line communication
2. Broadband and network access
3. Small and large

Flatpack2 48/1800
Additional Technical Specifications
Flatpack2 48/1800

Flatpack2 48/1800
Additional Technical Specifications

Input:
85-290 VAC (Nominal 176 - 275V AC)

Output Voltage:
26.7 VDC (adj. Range: 21.0-29.0 VDC)

Out Power:
2000 W at nominal input
1800 W at nominal input above 28.0 VDC

Safety Approval:
IEC 60950-1
UL 60950-1
CSA 22.2

Dimensions: 109 X 41.5 X 327mm (wxhxd)
(4.25 X 1.69 X 13")
Weight: 1.950 kg (4.3lbs)

Ordering Information:
Eltek Flatpack2 48/1800 48V 1800W rectifier module (Code: 241115.001)
