HDPE Silicone ADSS Cable Accessories , Pre Lubricated Duct Underground Cable Conduit
HDPE Silicone ADSS Cable Accessories , Pre Lubricated Duct Underground Cable Conduit
HDPE Silicone ADSS Cable Accessories , Pre Lubricated Duct Underground Cable Conduit
HDPE Silicone ADSS Cable Accessories , Pre Lubricated Duct Underground Cable Conduit
Specifications
Brand Name :
Unique-Tel
Model Number :
Cable Duct
Certification :
CCC CE
Place of Origin :
China
MOQ :
100 Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000 meters per week
Delivery Time :
1 week
Packaging Details :
500 meters per roll
Name :
Fiber Optic Cable Duct
Material :
HDPE and Silicone Layer
No. of Cores :
Single Core
Size of Cores :
40/33 32/28
Outer Sheath :
HDPE
Color :
Black or Orange
Description

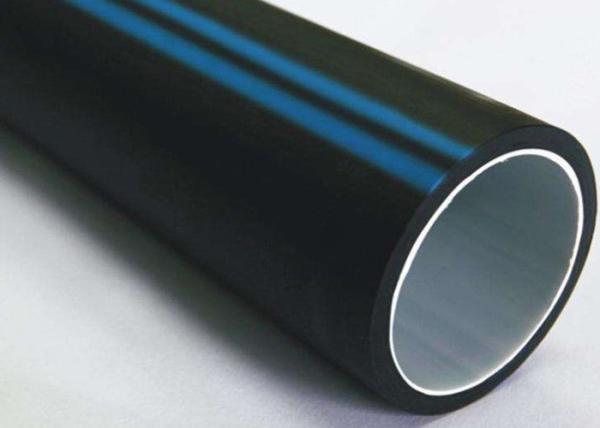

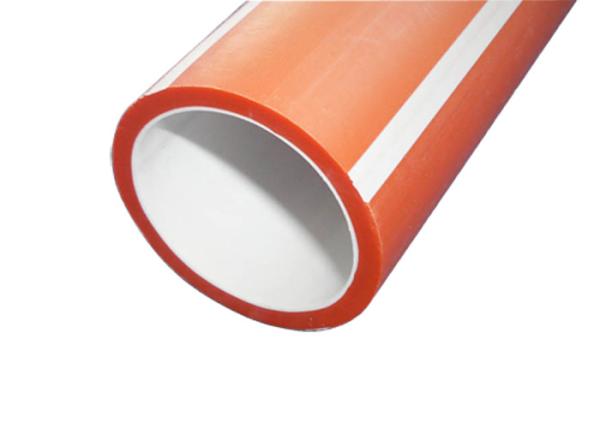

HDPE Silicone Pre-lubricated Fiber Optic Cable Duct Underground Conduit

Introduction

HDPE Duct Pipes or High Density Polyethylene Permanently Lubricated Ducts are the high flow capacity ducts, which offer a very high quality option for the underground laying of optical fiber cable (OFC). These HDPE Ducts are mainly used for the purpose of laying Optical Fiber Cable as underground conduits. The HDPE Telecom Ducts are manufactured with the high density Polyethylene materials. The material, high density Polyethylene offers a great resistance against the heavy earth loads and is a great in offering the impact and crush resistance.

Advantages:

  • Increased efficiency in network building
  • Ease of connecting the ducts with the aid of couplings
  • A print indicating length of cables gives information about the length of the cable installed
  • Possibility of using ducts of different colour allows to distinguish cables when several cables are installed in a single trench
  • Strength imparting the duct compression resistance
  • Heat resistance providing satisfactory mechanical properties in the temperature range from -20 to +55 °C
  • Long durability
  • Resistance to moisture, oil, petrol, rodents and other unfavourable factors that may affect the duct underground.

Specification

Minimum Order Quantity

100 Meter

Material Grade

PE 63

Thickness

3.5 mm

Color

Any

Unit Length

upto 1000 Meters

Pressure

PN 16

Single Piece Length

upto 1000 Meters

Application

Telecom

PN Grade

16

Packing Type

Coil

Diameter

40 mm OD / 33 mm ID

Packaging Type

Coil

Weight

380 gms/Meter

Temperature

60 DEG. C

Condition

New

Usage/Application

TELECOM DUCT

Material

HDPE

Size/Diameter

40 mm OD / 33 mm ID

UV Resistant

Yes

Size Range

40 mm OD / 33 mm ID

Packaging Size

Upto 1000 Meters


Pictures

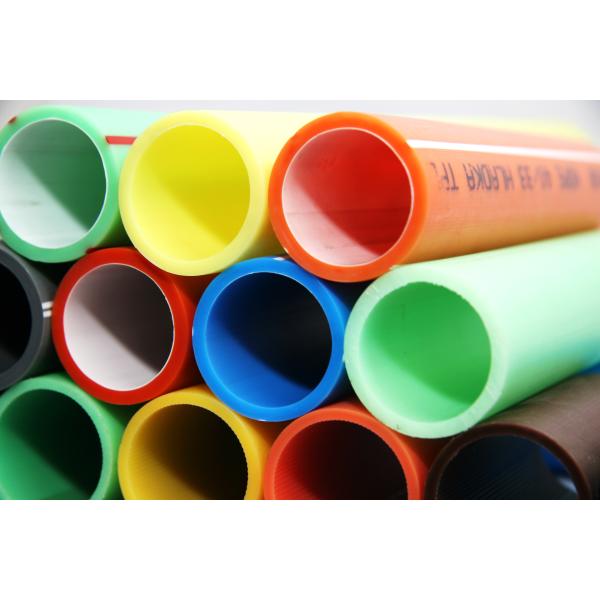

HDPE Silicone ADSS Cable Accessories , Pre Lubricated Duct Underground Cable Conduit
