FC / APC Fiber Cable Accessories Simplex 3mm Fiber Optic Attenuator Epoxy Connector Kit
FC / APC Fiber Cable Accessories Simplex 3mm Fiber Optic Attenuator Epoxy Connector Kit
Specifications
Brand Name :
Unique-Tel
Model Number :
GXJT01
Certification :
Customized
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000 Pieces/Month
Delivery Time :
5 work days
Packaging Details :
carton & PVC packaging
Insertion Loss :
<5dB
Return Loss :
>50dB
Material :
Epoxy
Operating Temperature :
-40 to +80 degree
Function :
Protector Cover,anti-slip
Operation Wavelength :
SM:1200 to1600 nm or 1310/1550 nm
Description

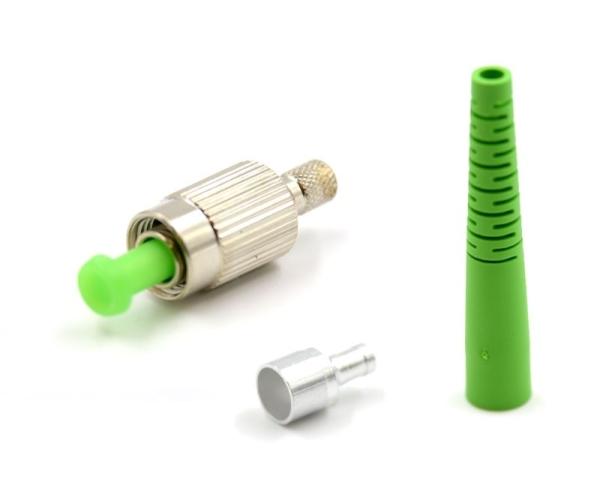

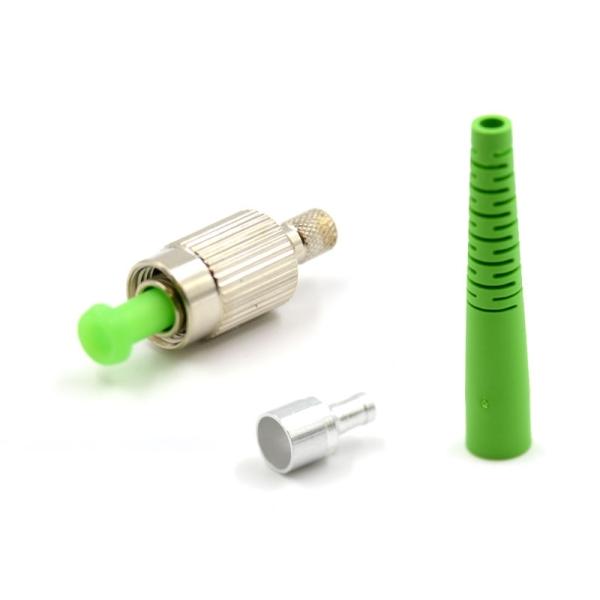

FC/APC Single Mode Simplex 3mm Fiber Optic Attenuator Epoxy Connector Kit

Overview

Our Epoxy Type Connectors are available with a wide variety of options, including Simplex, Duplex, Single-mode, Multimode and 3mm, 2mm, or 900µm boot sizes. Available connectors include LC, FC, SC and ST.

Features

Type: Fixed Type,

Female to male type,

In-Line Attenuator (Fused and Fiber Jumpers Type),

Variable Type;

Based on IEC 60869

Environmentally Stable and Reliable

Accurate Size

High Directivity

Excellent Return Loss

Application

  1. Telecommunications
  2. LAN,CATV,FTTH
  3. Fiber optic sensors
  4. Testing instruments
  5. Multi-channel subscriber loop
  6. Optical transmission system
  7. Variable of attenuation ways and a bound of connector types

Specifications

Product Type Fixed Attenuator Male/Female to Male/Female
Operation Wavelength SM:1200 to1600 nm or 1310/1550 nm
MM:850nm , 1300nm
Return Loss ≥50 db (PC)
≥55 db (UPC)
≥65 db (APC)
Attenuation Accuracy +/-0.5db for 1 to 5db attenuation
+/-10% for 6 to 30db attenuation
Polarization Dependent loss ≤0.2db
Mechanical endurance >1000
Maximum optical Input power 200mW
Operating Temp Range -40 to +80 degree
Standard YD/T 1272.4-2007

Order Options

Connector Type Application Wavelength Attenuation
FC PC 1310nm 1,2,3.......,30db
SC UPC 1550nm
ST APC 1310/1550nm
LC
E2000
MPO
MU


FC / APC Fiber Cable Accessories Simplex 3mm Fiber Optic Attenuator Epoxy Connector Kit
