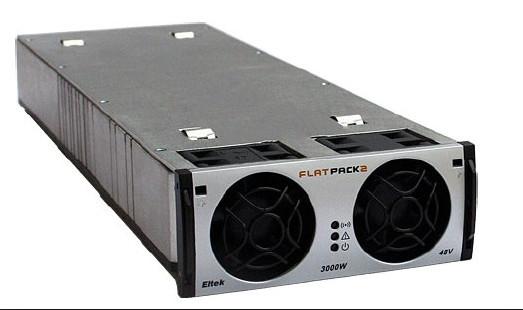

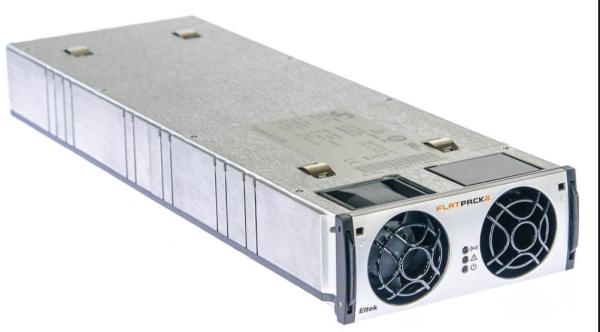

High Efficiency Eltek Valere Flatpack2 , 48V 3000W Bridge Rectifier Module
High Efficiency Eltek Valere Flatpack2 , 48V 3000W Bridge Rectifier Module
High Efficiency Eltek Valere Flatpack2 , 48V 3000W Bridge Rectifier Module
High Efficiency Eltek Valere Flatpack2 , 48V 3000W Bridge Rectifier Module
High Efficiency Eltek Valere Flatpack2 , 48V 3000W Bridge Rectifier Module
High Efficiency Eltek Valere Flatpack2 , 48V 3000W Bridge Rectifier Module
High Efficiency Eltek Valere Flatpack2 , 48V 3000W Bridge Rectifier Module
High Efficiency Eltek Valere Flatpack2 , 48V 3000W Bridge Rectifier Module
Specifications
Brand Name :
ELTEK
Model Number :
Flatpack2 48/3000
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/month
Delivery Time :
within 10 days of payment
Packaging Details :
carton box
Part No. :
241119.100
Efficiency :
Typical 93%
Output Power :
3000 W at nominal input
Maximum Current :
62.5 Amps at 48V DC and nominal
DC Output voltage :
53.5V DC (adj. range: 43.5-58.0V DC)
AC Input voltage :
85-300V AC (Nominal 185 – 275V AC)
Description

Flatpack2 Eltek Valere 48V 3000W Rectifier Module 48/3000 241119.100

Technical Specification:


AC Input:
Voltage :85-300V AC (Nominal 185 – 275V AC)
Frequency :45 to 66Hz
DC Output:
Voltage: 53.5V DC (adj. range: 43.5-58.0V DC)
Output Power : 3000 W at nominal input
Maximum Current: 62.5Amps at 48 VDC and nominal
Output Protection: Overvoltage shutdown, Short circuit proof, High temperature protection
Efficiency:> Typical 93%
Operating Temp.:-40 to +75°C (-40 to +158°F)
MTBF :> 350, 000 hours


Mechnical Specification:


Dimensions- 109 x 41.5 x 327mm (wxhxd)
Weight- 1.95 kg (4.31lbs)

Ordering Information:

Part No.: 241115.105 Flatpack2 Rectifier Module 48/3000
