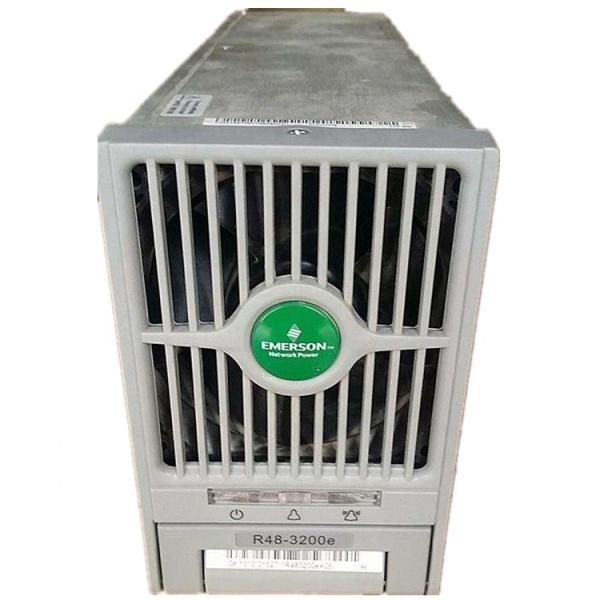

Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter
Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter
Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter
Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter
Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter
Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter
Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter
Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter
Specifications
Brand Name :
EMERSON(VERTIV)
Model Number :
R48-3200E
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Supply Ability :
1000 sets/month
Delivery Time :
within 10 days of payment
Packaging Details :
carton box
Payment Terms :
L/C, T/T
Model NO :
R48-3200E
Weight :
3.1kg
Efficiency :
92%
Altitude :
< 3000m
DC Output :
-48V 3200W
Type :
Bridge Rectifier
Package Type :
Surface Mount
Dimensions :
400 x1 60 x 225 mm
Application :
Inverter / Converter
AC input :
200 - 250V ~17.0A 50/60HZ
Equalizing Charging Temp.Coefficient :
built-in fan, forced convection
Description

New and original package rectifier module power supply Emerson R48-3200E

The NetSure R48-3200E recifier converts standard AC supply voltages into stable nominal -48V DC voltage adjustable to the needs of the application. The R48-3200E is constant power recitifer designed with the latest patented switch=mode technology using DSP (Digital Signating Processor) functionality for efficient operation.

For a higher load capacity, rectifiers can be connected in parallel and intelligent control can be added with the help of a separate controller.

Product description:

1, Model No.:R48-3200E.

2, Brand:Emerson (Vertiv);

3. AC input voltage: 200 - 250V;

4. AC input current:17A;

5. DC output voltage:-48V

6, DC output power: 3200W

Product features:

  • 3200 watt rectifier designed for -48V DC power applications
  • Optimized depth – reduced footprint allows installation in short-depth racks and cabinets
  • DSP (Digital Signaling Processor) means fewer components, optimized operation and active load sharing for increased reliability
  • Compliant with global standards – delivers quality, performance and reliability no matter what the application or location demands
  • High efficiency, up to 92%, reduces power consumption for lower operating costs
  • Hot pluggable – facilitates future extensions
  • Wide input voltage range –operates in the most demanding environments where input voltage changes
  • Wide temperature operating range (-40°C / -40°F to +75°C / 167°F) meets the harshest climatic environment requirem

Power Supply 5G Network Equipment Emerson R48 - 3200E For Inverter / Converter
