Durable 48V 1800W Telecom Rectifier , EATON APR48 - 3G Rectifier In Telecom
Durable 48V 1800W Telecom Rectifier , EATON APR48 - 3G Rectifier In Telecom
Durable 48V 1800W Telecom Rectifier , EATON APR48 - 3G Rectifier In Telecom
Durable 48V 1800W Telecom Rectifier , EATON APR48 - 3G Rectifier In Telecom
Durable 48V 1800W Telecom Rectifier , EATON APR48 - 3G Rectifier In Telecom
Durable 48V 1800W Telecom Rectifier , EATON APR48 - 3G Rectifier In Telecom
Durable 48V 1800W Telecom Rectifier , EATON APR48 - 3G Rectifier In Telecom
Durable 48V 1800W Telecom Rectifier , EATON APR48 - 3G Rectifier In Telecom
Specifications
Brand Name :
EATON
Model Number :
APR 48-3G
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Supply Ability :
1000 sets/month
Delivery Time :
within 10 days of payment
Packaging Details :
carton box
Model NO :
APR 48-3G
Weight :
3 KG
Phase :
Single
Type :
Online
Application :
Communication
Specification :
200*150*300mm
Protection :
Unbalanced Loads
Payment Terms :
L/C, T/T
Description

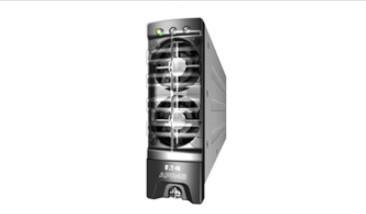

48V 1800W Telecom Rectifier EATON APR48-3G

rectifier ac to dc Short Introduction:

The Eaton APR48-3G Access Power Rectifiers are designed specifically for network access applications such as cellular base stations, customer premises equipment and road-side cabinet installations.
The new generation 3G architecture is reliable, power dense and compact. The high power density allows as little as 1U of rack space to be occupied by power, therefore, Eaton APR48-3G maximizing space available for teleco equipment.
The APR48-3G is a high pow-ered rectifier with 1800W output. It is designed for op-eration at up to 70°C (158°F) and under a wide range of AC power conditions.
The APR48-3G also has power factor correction and is up to 92% efficient, with optimum performance available at typical load currents. Together these give the APR48-3G some of the lowest running costs for any DC powersystem of its type available.
Operating with the Eaton SC100 or SC200 system con-troller, the APR48-3G rectifier modules will provide years of cost-effective, and trouble free service for your 48V network access equipment.

rectifier ac to dc 48V Features:

1. Automatic set-up from system controller

2. High power density

3. Wide output voltage ranges (43-57.7V)

4. Constant power output

rectifier ac to dc input Details:

Input Frequency: 50/60HZ

Input VoltagE: 175~275Vac (220/2D40V)

Output Details of EATON APR48-3G:

DC output range: 48Vdc (43-57.5V)

DC output: 1800W/48V

rectifier ac to dc 48v Environmental:

Operating Tempt: -40°C ~70°C (-40F ~ 158F)

Weight & Dimension of EATON APR48-3G:

Weight: 1.7kg (3.7lb)

Size: 133*42*266 mm

rectifier ac to dc Ordering Information:

rectifier ac to dc 48V eaton APR48-3G, APR48 3G

Durable 48V 1800W Telecom Rectifier , EATON APR48 - 3G Rectifier In Telecom
