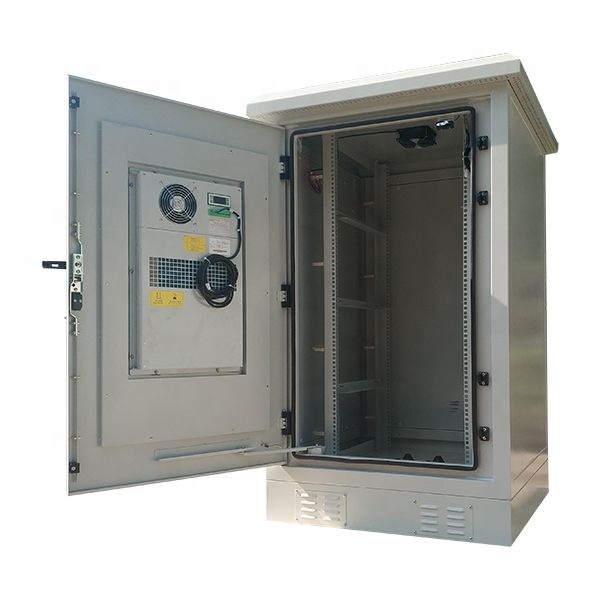

48v Air Conditioning Cooling Telecom Power Cabinet High Protection Rate

Description

A) Outdoor Cabinet outer size: 1200*800*800mm H*W*D;

B) Ourdoor Cabinet internal size: 1000*750*750mm H*W*D;

C) Outdoor Cabinet type: 1 to 3 unit 1 to 3 compartment, front door, assembling structure, double layer, heat insulation cotton thickness 20mm;

D) Outdoor Cabinet material: galvanized sheet, the thickness of the outer plate 1.5mm, the thickness of the inner plate 0.8mm, load-bearing part of 2.0mm;

E) Thermal insulation performance: thermal conductivity <0.472W/ (m2.k);

F) Equipment layer frame: 19 inches, 4 pairs of supporting bar;

G) Cabinet base: 150mm high, 2.0mm thick;

H) Feed line: in and out with Φ 50*5;

I)Anti theft design: embedded door and hinge, 3 point type of anti-theft lock;

J)Protection level: IP55 (dust, waterproof).

Features

High reliability, maintenance-free, fast assembly, suitable for harsh environment

High integration, small footprint, short construction period, reduce the construction cost

Improved thermal design, efficient energy saving, effectively extending the battery life

Support for fast assembly, ready for the summit, multi-scene roof installation

Dynamic environment monitoring system, full alarm signal detection, real-time alarm information reported

1) Application scenarios: outdoor cabinet cooling;

2) Cooling capacity: 500W,800W,1000W,1500W etc;

3) Energy efficiency ratio: 3;

4)Input voltage:110V 220V 230V 240V etc;

5) Temperature control mode: intelligent temperature control, can be automatically adjusted according to the cabin temperature;

6) Protection level: IP55;

7) Communication mode: RS485.

AC power distribution unit

Input AC2P63A*2+B level lightning protection (60KA)
City Electric, oil machine mechanical interlock
Output 32A*2*16A*3+ maintenance socket (10A)

Specifications
