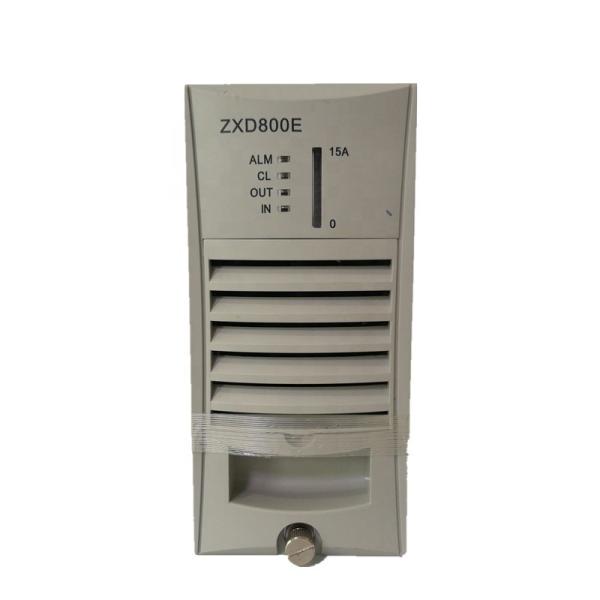

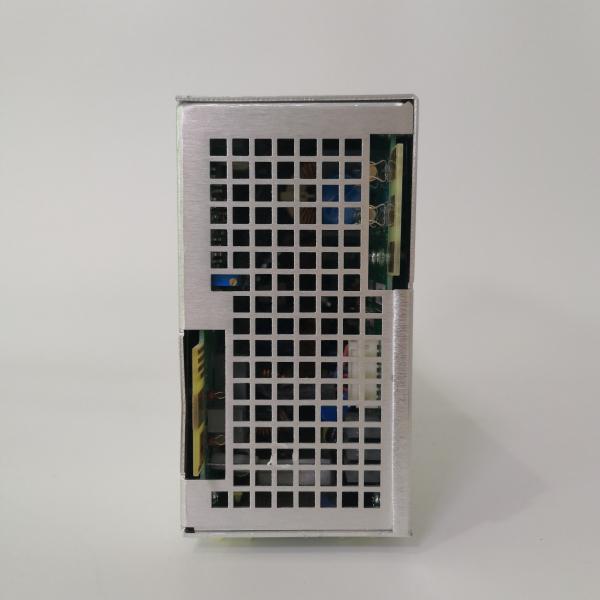

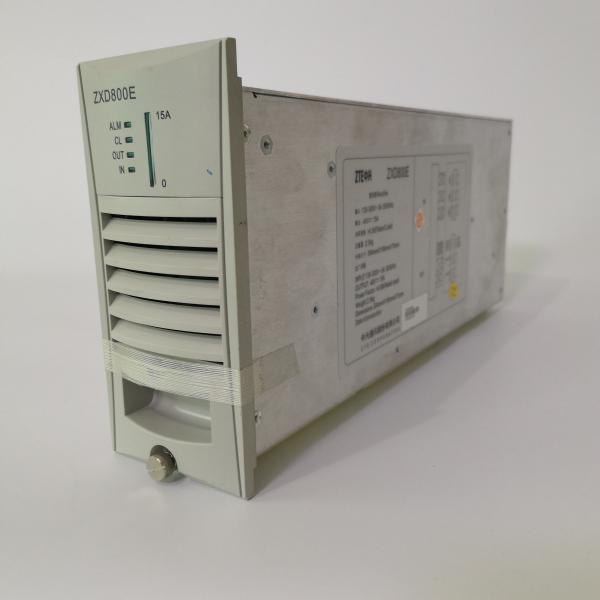

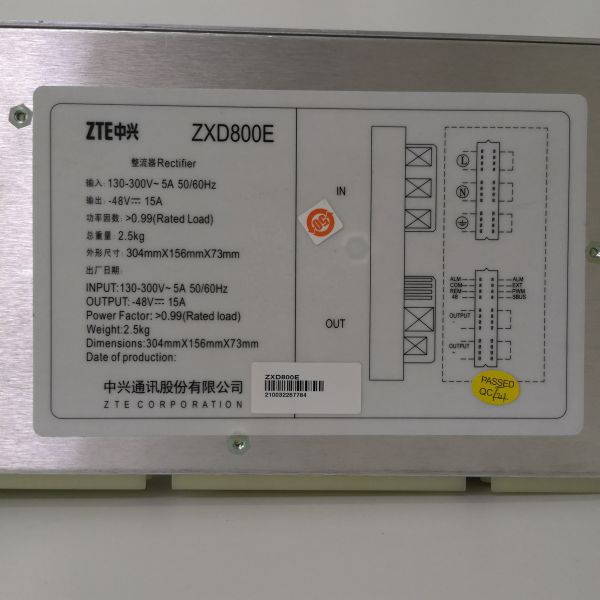

48V 15A Rectifier Module 5G Network Equipment ZTE ZXD800E Switch Mode Power Supply
48V 15A Rectifier Module 5G Network Equipment ZTE ZXD800E Switch Mode Power Supply
48V 15A Rectifier Module 5G Network Equipment ZTE ZXD800E Switch Mode Power Supply
48V 15A Rectifier Module 5G Network Equipment ZTE ZXD800E Switch Mode Power Supply
48V 15A Rectifier Module 5G Network Equipment ZTE ZXD800E Switch Mode Power Supply
48V 15A Rectifier Module 5G Network Equipment ZTE ZXD800E Switch Mode Power Supply
Specifications
Brand Name :
ZTE
Model Number :
ZXD800E
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/month
Delivery Time :
within 10 days of payment
Packaging Details :
carton box
AC Current :
5A Max
DC Voltage :
48V
DC Current :
15A
Power Factor :
>0.99
Weight :
2.5Kg
Input :
~130-300V; 50/60Hz
Dimension :
156mm*73mm*304mm
Description

48V 15A Rectifier Module ZTE ZXD800E Switch Mode Power Supply Equipment

Brief

ZTE ZXD800E 15A rectifier is designed and made by ZTE company, with 48V 15A output, light and small size.

ZXB800E is designed according to international standard, aiming to small and middle telecom power system, provide power to small size Networking communication equipment, Micro product, data product and other telecom equipment.

15A output ZTE ZXD800E rectifier Features:

1. Wide input voltage range: From 90V-290Vac

2. Plug-in type, easy and fast respond

3. Small Size, light weight

4. High power density 540mW/CM3

ZXD800E ZTE Rectifier input parameters

Input Voltage: 220V (130-300Vac)

Input Current: 5A

Rectifier Module ZXD800E operation Condition:

Working Temp.: -5-145C

Storage Temp.: -40 -170C

Weight: 2.5kg

Size: 304 x 156 x 73 mm

Ordering Information

48V 15A Rectifier module ZTE ZXD800E

Part No.: ZTE ZXD800E
