2-144 Core Corning Fiber Optic Cable ADSS Cable 10KN - 30KN Tension Strength
2-144 Core Corning Fiber Optic Cable ADSS Cable 10KN - 30KN Tension Strength
Specifications
Brand Name :
Unique-Tel
Model Number :
NWGL17
Certification :
ISO9001/ANATEL/RoHS
Place of Origin :
China
MOQ :
1000 meters
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100000 meters/month
Delivery Time :
within 10 days
Packaging Details :
wooden drum
Fiber brand :
Corning
Warranty :
3 Years
Fiber count :
2-12 Cores
Color :
Black/white
Length :
305m 1000ft
Product name :
ADSS Fiber Cable
Material :
LSZH Plastic/ fiber
Application :
Networking/ computer
Keyword :
ADSS Fiber Optic Cable
Description

ADSS Cable 10KN- 30KN Tension Strength 2-144 Core Fiber Optic Cable

Description

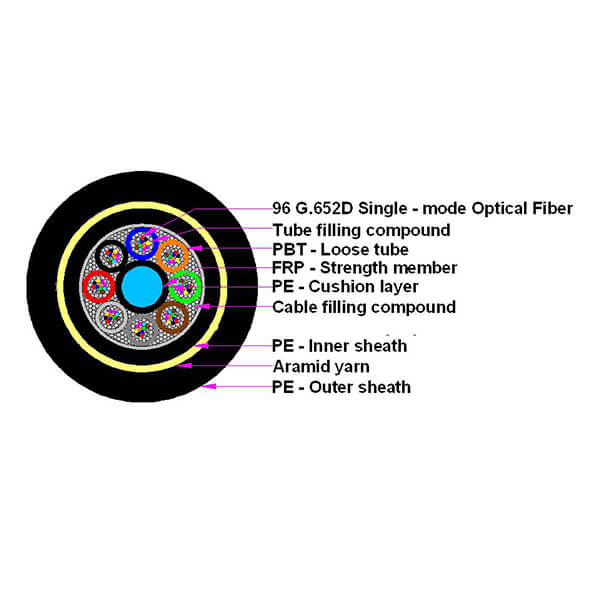

The ADSS consists jelly-filled loose tubes, laid up around a central nonmetallic strength member.

The cable is water blocked, aramid yarn reinforced and PE or AT sheathed. ADSS Cable is suspended from poles or towers in telecommunication and power outside plant applications.

Characteristics of ADSS

1.Light weight, small cable diameter, reducing the ice;

2.Can be continuously electric erection;

Cable Performance Parameter

Span meter 200 300 400
Related Strength Tension(RTS) 17.5 kn 20.6 kn 28 kn
Max Allowable Tension(MAT) 6.9 kn 8.2 kn 11.5 kn
Average Annual Operation Tension(EDS) 4.36 kn 5.17 kn 7.0 kn
Young Modulus 14.1 kn/mm2 15.2 kn/mm2 19.3 kn/mm2
Coefficient of Thermal Expansion 4.4 10-6/℃ 3.1 10-6/℃ 2.4 0-6/℃
Allowable Crush Resistance Long Term: 1100n/100mm Long Term: 1100n/100mm Long Term: 1100n/100mm
Short Term: 2200n/100mm Short Term: 2200n/100mm Short Term: 2200n/100mm
Minimum Bending Radius Operating: 220mm Operating: 220mm Operating: 220mm
Installation: 360mm Installation: 360mm Installation: 360mm
Temperature Range

Operating:

-40∽ +70℃

 Operating -40∽ +70℃ Operating: -40∽ +70℃
Installation: -15∽ +60℃ Installation:-15∽ +60℃ Installation: -15∽ +60℃
Out Sheath Material Electrical Resistance AT (Borealis material 6081) Sheath
Electrical Resistance Corrosion Measures Good performance of Electrical Resistance and Corrosion Resistance
Note: ice accretion 5MM,weed speed:30M/S

Specifications

Application Networking/ computer
Product name ADSS Fiber Cable
Certification ISO9001/ANATEL/RoHS
Material LSZH Plastic/ fiber
Color Black/white
Keyword ADSS Fiber Optic Cable
Length 305m 1000ft
Fiber brand Corning
Fiber count 2-12 Cores
Warranty 3 Years

2-144 Core Corning Fiber Optic Cable ADSS Cable 10KN - 30KN Tension Strength
