Indoor 2 - 48 Core Armored Fiber Optic Cable LSZH Sheath Tight Buffered
Indoor 2 - 48 Core Armored Fiber Optic Cable LSZH Sheath Tight Buffered
Specifications
Brand Name :
Unique-Tel
Model Number :
NWGL19
Certification :
RoHS CE
Place of Origin :
China
MOQ :
1000 meters
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100000 meters/month
Delivery Time :
within 10 days
Packaging Details :
wooden drum
Fiber count :
2-48 Cores
Usage :
For splicing
Fiber Type :
SM/MM/OM3
MOQ :
2000Meter/Meters
Type :
Stranded loose tube
Application :
Telecommunication,Aerial,Duct
Description

Indoor Armored 2-48 Core Fiber Optic Cable LSZH Sheath Tight Buffered

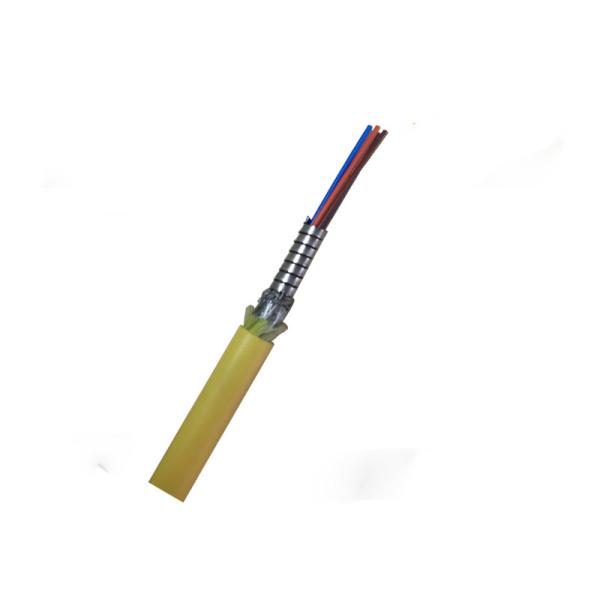

Structure of the cable

0.6mm/ 0.9mm tight buffered

LSZH out jacket

6.0 mm cable diameter

Steel tube armored

Kevlar inside the cable

Description

Armored fiber cables can be used in each channel by Telco, CATV, WAN LAN, SAN, Broadcast, DAS,Communication, security, indoor, outdoor and air installations and regardless of environmental conditions.

Characteristic

The smallest OD of an armor compared to conventional fiber optic cables in size and flexibility

The lightest and smallest armor makes routing and installation faster and easier

Provides the strongest armor with maximum bend radius and is designed for all indoor and outdoor conditions

Crush and rodent resistant

Stainless steel pipe inner diameter

Specifications

Application wires and patch
Storage -40 °C to 80 °C (-40 °F to 176 °F)
Installation -30 °C to 80 °C (-22 °F to 176 °F)
Operation -40 °C to 80 °C (-40 °F to 176 °F)
Max. Dynamic tensile strength 800 N
Max. Static tensile strength 600 N
Max. Dynamic Crush Resistance 5000 N
Max. Static crush resistance 3000 N
Min. Dynamic bending radius 20D
Min. Static bending radius 10D
Nominal outer diameter 6.0 mm
Weight 48lbs/1000ft.
Stainless steel tube outside diameter 4.4mm
3.2 mm
Steel Braid / Water Block As required
Material LSZH/ HDPE
Fiber counts 1 to 144 Strands (250u/900u/Ribbon)
Fiber OS2, OM1, OM3, OM4

Our Service

1. Free samples are available

2. Fast Delivery, normally 5 Days after payment

3. Strictly quality control system

4. Quality Certificate ISO9001 is available

Specifications

Fiber count 2-48 Cores
Fiber Type SM/MM/OM3
Type Stranded loose tube
Usage For splicing
MOQ 2000Meter/Meters
Application Telecommunication,Aerial,Duct

Indoor 2 - 48 Core Armored Fiber Optic Cable LSZH Sheath Tight Buffered
