Self Supporting Aerial FTTH Figure 8 Cable 1-12 Core Optical Fiber Cable
Self Supporting Aerial FTTH Figure 8 Cable 1-12 Core Optical Fiber Cable
Specifications
Brand Name :
Unique-Tel
Model Number :
NWGL21
Certification :
CE RoHS UL
Place of Origin :
China
MOQ :
1000 meters
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200000 meters/month
Delivery Time :
within 10 days
Packaging Details :
wooden drum
Material :
LSZH
Color :
Black
Application :
Network
Core :
1/2/4/8/12
Jacket :
LSZH Jacket
Wavelength :
1260/1480nm
Fiber Type :
G652D/G,657A
Description

Self Supporting Aerial FTTH Figure 8 Cable 1-12 Core Optical Fiber Cable

Characteristics of FTTH Figure 8 Cable


1.Accurate optical fiber excess length ensures good mechanical and temperature performance.
2.High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of optical fiber.
3.Crush resistance and flexibility.
4.Figure 8 self supporting type structure possesses high tensile strength and is convenient for aerial installation.
5.Light, flexible, easy for the laying and it is used for FTTH solution.

Description of FTTH Figure 8 Cable

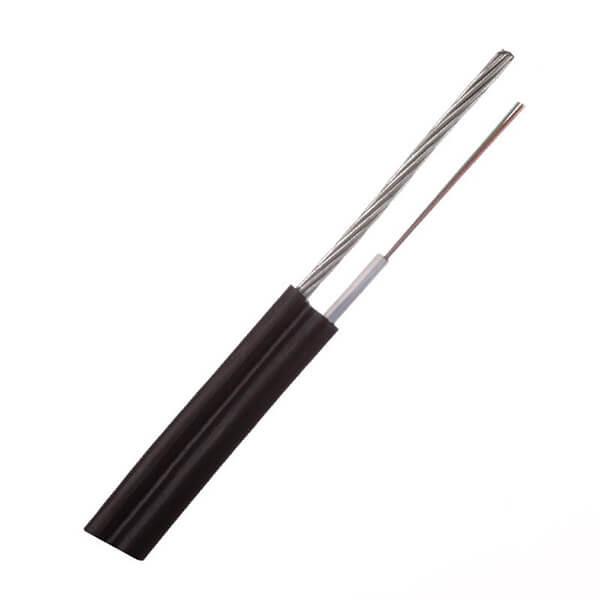

In the FTTH Figure 8 Fiber Optic Cable, this cable consist of the loose tube with single mode or multimode fibers and steel wire as the messenger wire, which are formed like Figure 8. After aramid yarn is applied over the inner sheath,the cable is completed with a PE outer sheath.

Technical Parameters

Cable Type Fiber Count Max. Fibers in Tubes Cable Weight(KG/KM) Cable Diameter(mm) Tensile Strength(N) Crush Resistance(N/100mm)
GYXTC8Y 2-12 12 47.0 5.4 * 9.5 500 700

Package


Cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture; kept away from high temperature and fire sparks; protected from over bending and crushing; protected from mechanical stress and damage.

Specifications

Core 1/2/4/8/12
Application Network
Fiber Type G652D/G,657A
Certification CE RoHS UL
Jacket LSZH Jacket
Wavelength 1260/1480nm
Material LSZH
Color Black

Self Supporting Aerial FTTH Figure 8 Cable 1-12 Core Optical Fiber Cable
