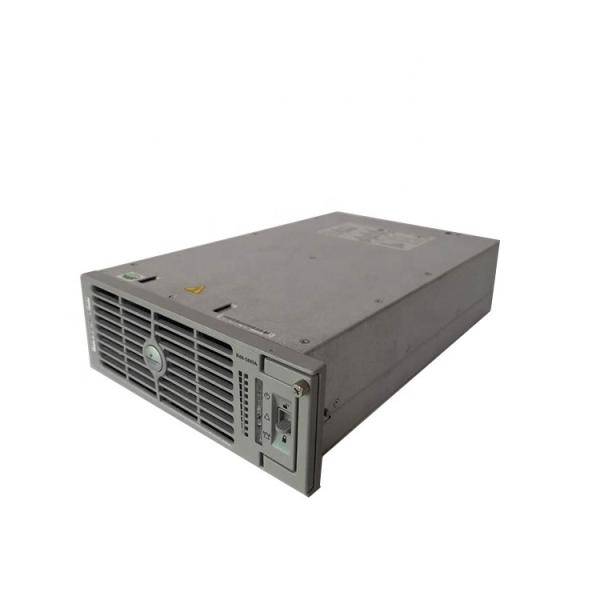

R48-5800A 48V 5800 W Emerson Rectifier Module Constant Power Rectifier
R48-5800A 48V 5800 W Emerson Rectifier Module Constant Power Rectifier
R48-5800A 48V 5800 W Emerson Rectifier Module Constant Power Rectifier
R48-5800A 48V 5800 W Emerson Rectifier Module Constant Power Rectifier
R48-5800A 48V 5800 W Emerson Rectifier Module Constant Power Rectifier
R48-5800A 48V 5800 W Emerson Rectifier Module Constant Power Rectifier
R48-5800A 48V 5800 W Emerson Rectifier Module Constant Power Rectifier
R48-5800A 48V 5800 W Emerson Rectifier Module Constant Power Rectifier
Specifications
Brand Name :
Emerson
Model Number :
R48-5800A
Certification :
CE, UL, RoHS, FCC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/month
Delivery Time :
within 10 days of payment
Packaging Details :
carton box
Model NO. :
R48-5800A
Warranty :
1 Year
Output Type :
Single
Output Power :
>500W
Input Voltage :
220V
Modulation System :
PWM
Connection Mode :
Plug Into System
Description

Emerson R48-5800A 48V 5800W Rectifier Module Constant Power Rectifier

Brand: Emerson
Model Name: R48-5800A
Output DC: 48Vdc 120A 5800W
R48-5800A Weight: 10kg
Dimensions: 88 x 244 x 380 mm


Description

The R48-5800A rectifier converts 380~480 Vac 3-phase AC supply voltages into stable nominal -48 VDC voltage adjustable to the needs of the application. The R48-5800 is a constant power rectifier designed with the latest patented switch-mode technology using DSP (Digital Signal Processor) functionality for efficient operation. For a larger load capacity, rectifiers can be connected in parallel and intelligent control can be added with the help of a separate controller.

Features and Benefits

1) Optimized size for best cabinet rack space utilization
2)DSP (Digital Signaling Processor) means fewer components, optimized operation and active load sharing for increased reliability
3)Compliant with global standards delivers quality, performance and reliability no matter what the application or location demands
4) High efficiency, up to 93% reduces power consumption for lower operating costs
5) Hot pluggable facilitates future extensions
6) Wide input voltage range operates in the most demanding environments where input voltage changes
7) Wide temperature operating range (-40°C / -40°F to +65°C / 149°F) - meets the harshest climatic environment requirements

Specifications

Model NO. R48-5800A
Output Type Single
Warranty 1 Year
Output Power >500W
Input Voltage 220V
Connection Mode Plug Into System
Starting Mode Separate-excited Switching Power Supply
Voltage Regulating Mode Switch Power Supply
Power Supplying System Terminal Power Distribution Equipment
Energy Transmission One-way Transmission
Modulation System PWM
Certification CE, UL, RoHS, FCC
Brand Emerson
Output Voltage 48VDC
Output Voltage Range -42 to -58 V DC
Output Current 120A
Output Power1 5800W
Trademark Emerson
Transport Package 1PCS/Box
Specification R48-5800A
Origin China
HS Code 85044015

R48-5800A 48V 5800 W Emerson Rectifier Module Constant Power Rectifier

R48-5800A 48V 5800 W Emerson Rectifier Module Constant Power Rectifier
