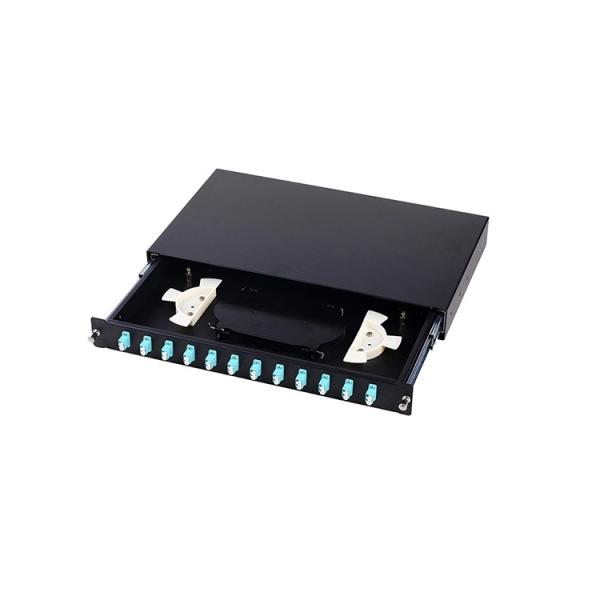

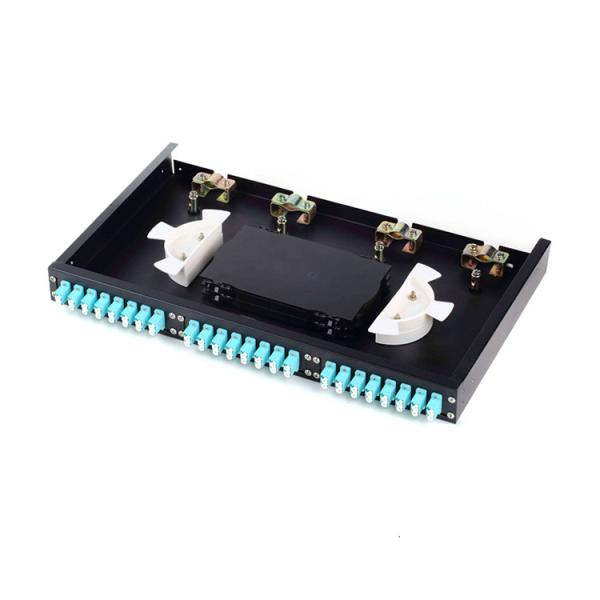

Fiber Optic Patch Panel Networking ODF 1U 19 Inch 24 Ports Large Capacity
Fiber Optic Patch Panel Networking ODF 1U 19 Inch 24 Ports Large Capacity
Fiber Optic Patch Panel Networking ODF 1U 19 Inch 24 Ports Large Capacity
Fiber Optic Patch Panel Networking ODF 1U 19 Inch 24 Ports Large Capacity
Specifications
Brand Name :
Unique-Tel
Model Number :
fiber optic patch panel, FO Patch Panel
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 pcs/month
Delivery Time :
within 10 days
Packaging Details :
carton package
Type :
Sliding
Standard Size :
1U,2U,3U,4U
Duplex or Simplex :
Both Available
Certificates :
RoHS, ISO9001
Connector :
SC,FC,ST,LC adaptor
Ports :
12,24,48 ,96 available
Product Name :
19 Inch Fiber Patch Panel
Description

Fiber Optic Patch Panel 1U 19inch 24 Ports Large Capacity Networking ODF

Introduction

An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit. The basic requirement is ODF should allow for easy access to the connectors on the front and rear of those ports for insertion and removal. It is usually used as the interface between optical transmission network, optical transmission facility and between optical cables in access network of optical fiber subscribers. It can also work as a protective device to protect fiber optic connections from damage. unique-tel.com ODF offers flexible cabling access, expandable frame design and comprehensive cable management. A series of optical distribution frames of 12 fibers, 24 fibers, 48 fibers, 72 fibers, 96 fibers and 144 fibers counts type are available.

Applications

1. Telecommunication networks

2. CATV Networks; LAN Network

3. Active device termination

4. FTTH

Features

1. 19-inch fixed

2. Available for simplex FC,SC,ST,LC adapter

3. 12,24,48,72,96 ports are available

4. ROHS compliant

Order information

Unit Adapter type Port Qty Capacity Dimension(mm)
1U SC ,LC, ST etc 24 24 430*350*1U
2U SC ,LC, ST etc 48 48 430*350*2U
3U SC ,LC, ST etc 72 72 430*350*3U
4U SC ,LC, ST etc 96 96 430*350*4U

Specifications

Model Number fiber optic patch panel, FO Patch Panel
Product Name 19 Inch Fiber Patch Panel
Ports 12,24,48 ,96 available
Standard Size 1U,2U,3U,4U
Connector SC,FC,ST,LC adaptor
Duplex or Simplex Both Available
Certificates RoHS, ISO9001
Type Sliding

Fiber Optic Patch Panel Networking ODF 1U 19 Inch 24 Ports Large CapacityFiber Optic Patch Panel Networking ODF 1U 19 Inch 24 Ports Large Capacity
