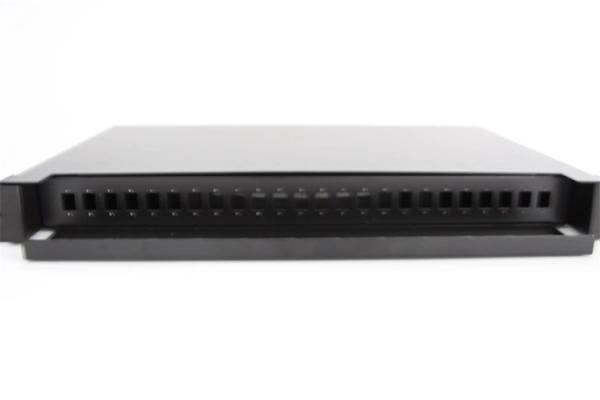

12 Core ODF Optical Distribution Frame Fiber Optic Termination Box Flame Retardant Integrated Tray
12 Core ODF Optical Distribution Frame Fiber Optic Termination Box Flame Retardant Integrated Tray
Specifications
Brand Name :
Unique-Tel
Model Number :
PXJ0909
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 pcs/month
Delivery Time :
within 10 days
Packaging Details :
carton boxes
Size :
1U-6U
Fusion splice tray :
1-8
Adapter flange :
ST/FC/SC
Material :
Cold-rolled sheet
Fiber type :
Single/Multi model
Fiber core capacity :
12/24/48/60/72/96
Application :
FTTH FTTB FTTX Network
Weight :
1U(3.9kg);2U(3.9kg);3U(7.3kg);4U(8kg);5U(10.3kg);6U(11.4kg)
Description

12 Core Fiber Optic Termination Box Flame Retardant Integrated Tray ODF

Description

1.Applicable in the straight through or branch connection of indoor cable

2.Available for the distribution and terminal connection of various kinds of optical fiber system

3.Max capacity cores from 12 to 96 with SC/LC/ST/FC connectors or pigtail outlet, Wall-Mounted, indoor application

4.The material is engineering plastic of high quality.

5.It is applicable for wall-mounted and pole-mounted.

Main features

1.Supporting high-performance optical cable grounding unit-optical cable clamp splitter, integrating optical cable grounding and high voltage protection function in one

2.The installation operation of accessed optical cable grounding unit is very simple and flexible, wall-mounted/DIN-rai mounted/rack -mounted installation is optional in a variety of ways

3.Flame retardant integrated tray,multiple beam tubes can be introduced from one side or two sides.

4.The heat-shrinkable tube holder in the tray is movable elastic rubber groove block, which can clamp 12/24 heat shrink tubes effectively, installation adjustable and fiber arrangement is more flexible. Installation angle is adjusted,coiling,fiber way is more flexible

5.The ST/FC adapter for tray is machined type, with higher optical performance than zinc alloy casting type.

6.The direction of the fiber from the left and right sides of the tray and patch panel is optional, which is more suitable for site changes

7.Large adjustable range of mounting depth,large side working space, special guide rail and hinge; It is not easy to be damaged in transit.

Informations

Product name Fiber core capacity Fusion splice tray Fusion and wiring type tray Wall mounting type and splitter weight
Fit with Quantity Fit with cable outside diameter Quantity
12 Port 1U Rack Mounted ODF Patch Pane 12 1 ST/FC/SC 12 ≤22 ≤8 3.9kg
Production and
inspection standard		 Recommendation for post and telecommunications industry YD/T 778-2011
Manner of packing Whole case packing (case size:525x340x170)
Outline dimension(mm) Length x Width x Height: 484 x44 x261
Note 1.The out dimension of width* high panel including earring frame size. The installation size of width*height is the hole distance between the earring frames.
2.The splitter is a optional accessory. The weight including allocation full pallet.
3.The weight including allocation full pallet
4.Accessories include tubing casing throat hoop, heat shrink pipe, wire binding, etc.
5.Provide bundles of optical fiber, optical fiber adaptor assemble and indicate in real models.

Specifications

Size 1U-6U
Fiber core capacity 12/24/48/60/72/96
Fusion splice tray 1-8
Fiber type Single/Multi model
Adapter flange ST/FC/SC
Material Cold-rolled sheet
Application FTTH FTTB FTTX Network
Weight 1U(3.9kg);2U(3.9kg);3U(7.3kg);4U(8kg);5U(10.3kg);6U(11.4kg)
