Enamel Reaction Kettle Reaction Autoclave Chemical Autoclave Glass Lined Reactor
Enamel Reaction Kettle Reaction Autoclave Chemical Autoclave Glass Lined Reactor
Enamel Reaction Kettle Reaction Autoclave Chemical Autoclave Glass Lined Reactor
Enamel Reaction Kettle Reaction Autoclave Chemical Autoclave Glass Lined Reactor
Specifications
Brand Name :
LIANZHONG
Certification :
CE ISO ASME
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
20Sets Per Month
Delivery Time :
45 days
Packaging Details :
Nude
Pressure Level :
Low Pressure (0.1MPa≤p<1.6MPa)
Condition :
New
Inner Vessel Marerial :
Carbon Steel with Glass Linning
Agitator Model :
Combined Agitator
Heat Transfer Structure :
Jacketed
Heating :
Oil or Water or Electric
Description
Product Description

Chemical Processing Machine: stainless steel chemical reaction vessel(reactor) is heated by the external coil or jacket to supply heat transfer conduction oil / steam / water, it is an ideal equipment of low power and high heating temperature and large volume.
1. Reduce the thickness of tank and increase its loading capacity.
2. Increase heat transfer efficiency.
3. Reduce power consumption and cost.
4. Reduce the total diameter of tank and be good for the layout of workshop.

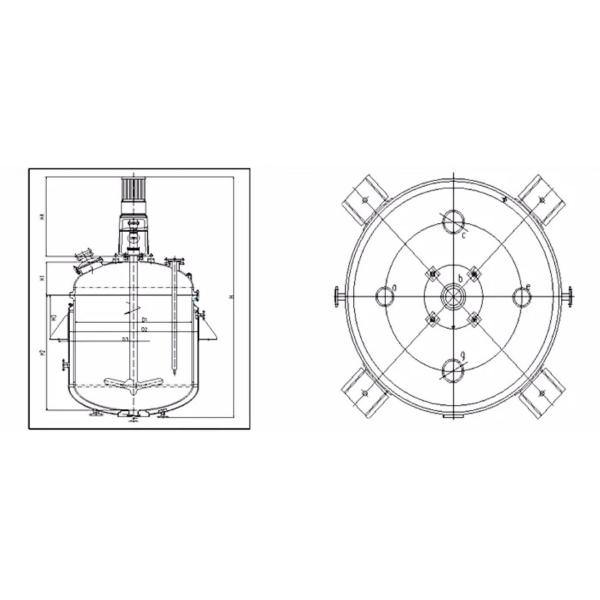

Main Structure Design of K Type Glass-lined Reactor
pecification Model K-50 K-100 K-200 K-300 K-500 K-1000 K-1500 K-2000 K-3000 K-5000 K-6300

Nominal

Capacity (L)

 50 100 200 300 500 1000 1500 2000 3000 5000 6300

Actual

Capacity (L)

 71 128 247 369 588 1250 1720 2160 3380 5224 6735
Heat Exchange Area(m2) 0.34 0.66 1.26 1.75 2.64 4.54 5.34 7.02 8.61 13 16.4
Dimension mm D1 500 600 700 800 900 1200 1300 1300 1600 1750 1750
D2 600 700 800 900 1000 1300 1450 1450 1750 1900 1900
D3 706 816 918 1028 1130 1468 1622 1622 1964 2152 2152
Hl 265 300 345 380 405 480 505 505 580 617 617
H2 400 500 700 800 1000 1200 1400 1745 1740 2050 2997
H3 300 320 350 350 400 500 500 500 600 670 700
H4 945 945 953 1154 1154 1276 1276 1276 1326 1326 1475
H 1705 1845 2110 2440 2700 3000 3310 3650 3785 4800 5580
Transmission model BLD-1 BLD-1 BLD-1 BLD-2 BLD-2 BLD-3 BLD-3 BLD-3 BLD-3 BLD-4 BLD-4
Type of Agitators (r/min)

Frane

(Anchor)

Type

 63/85 63/85 63/85 63/85 63/85 63/85 63/85 63/85 63/85 63/85 63/85
Turbine Type 130 130 130 130 130 130 130 130 130 130 130
Glass-lined nozzle a 80 80 125 125 150 300x400 300x400 300x400 300x400 300x400 300x400
b 70 70 80 100 100 125 125 125 125 125 125
c 70 70 70 70 70 100 100 100 100 125 125
d - - 80 80 100 100 100 100 100 125 125
e 70 70 70 70 80 100 25 25 25 25 25
f - - 70 70 125 125 125 125 125 150 150
g 70 70 - - - 100 100 100 100 125 125
h - - 70 70 80 100 125 125 125 150 150
Outlet 70 70 80 80 80 100 100 100 125 125 125
Jecket nozzle

Inlet

(outlet)

 3-20 3-20 3-25 3-25 3-32 3-32 4-50 4-40 3-50 3-65 4-65
Spray mouth - - - - - - - 2-50 2-65 3-65 -

Reference Weight

(Kg )

 463 530 700 984 1213 1909 2441 2693 4060 5186 5844

Application of Resin plant
Chemical Machine Resin Plant is the key equipment for producing all kinds of resins, such as Alkyd resin, Acrylic resin, PET resin, epoxy resins, ABS resins, Polyester resin, Unsaturated polyester resin, , Amino resin, curing agent. PVA Emulsion/Acrylic emulsion/polymer emulsion/water base PU
The whole set of equipment includes reactor, vertical fractionating column, horizontal condenser, water storage tank, oil spill tank and piping (dilution kettle). All parts of the equipment that contact with the material are all made by stainless steel.

Enamel Reaction Kettle Reaction Autoclave Chemical Autoclave Glass Lined Reactor

Enamel Reaction Kettle Reaction Autoclave Chemical Autoclave Glass Lined Reactor

Detailed Photos

Enamel Reaction Kettle Reaction Autoclave Chemical Autoclave Glass Lined Reactor

Packaging & Shipping

Enamel Reaction Kettle Reaction Autoclave Chemical Autoclave Glass Lined Reactor

More Products

Enamel Reaction Kettle Reaction Autoclave Chemical Autoclave Glass Lined Reactor

FAQ

Q1: How long is the warranty of the AAC production line?

A1: Our warranty period is one year generally.

Q2: Can l visit your factory?
A2:Yes. We warmly welcome you to visit our factory.
We will take you to our customer site to have a real look.

Q3: Do you provide equipment operation training?
A3:Yes. We can send professional engineers to the working site for installation, adjustment,and operation training. All of our engineers have passports.

Q4: Do you provide whole AAC production line flow chart?
A4:Yes. Our experienced engineers are specialized in designing process flow for various project.

Q5: Can you test our samples?
A5:Yes. You can send your samples to us for test and analysis.

Q6. How about price?
A6:Yes, we are factory and are able to give you the lowest price than market one and we have a policy that “for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity. contact us.
