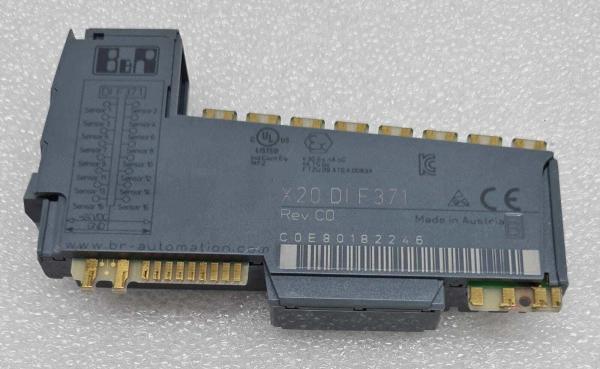

X20DIF371 B&R X20 PLC SYSTEM I/O Module 16 Digital Inputs 24 VDC For 1 Wire Connections
X20DIF371 B&R X20 PLC SYSTEM I/O Module 16 Digital Inputs 24 VDC For 1 Wire Connections
X20DIF371 B&R X20 PLC SYSTEM I/O Module 16 Digital Inputs 24 VDC For 1 Wire Connections
X20DIF371 B&R X20 PLC SYSTEM I/O Module 16 Digital Inputs 24 VDC For 1 Wire Connections
X20DIF371 B&R X20 PLC SYSTEM I/O Module 16 Digital Inputs 24 VDC For 1 Wire Connections
X20DIF371 B&R X20 PLC SYSTEM I/O Module 16 Digital Inputs 24 VDC For 1 Wire Connections
Specifications
Brand Name :
B&R
Model Number :
X20DIF371
Certification :
COC
Place of Origin :
Austria
MOQ :
1EA
Price :
USD
Payment Terms :
T/T
Supply Ability :
10EA
Delivery Time :
3-5 DAYS
Product Name :
B&R
Product Model :
X20DIF371
Product Type :
I/O module
ID code :
0xC0E8
Input voltage :
24 VDC -15% / +20%
Warranty :
1 Year
Description

X20DIF371 B&R X20 PLC SYSTEM I/O Module 16 Digital Inputs 24 VDC For 1-Wire Connections

MATERIAL NUMBER:
X20DIF371
DESCRIPTION:
  • 16 digital inputs
  • Source circuit
  • 1-wire connections
  • Configurable software input filter for entire module

The module is equipped with 16 inputs for 1-wire connections. The module is designed for sink input wiring.

Short description
I/O module 16 digital inputs 24 VDC for 1-wire connections
General information
B&R ID code 0xC0E8
Status indicators I/O function per channel, operating state, module status
Diagnostics
Module run/error Yes, using LED status indicator and software
Power consumption
Bus 0.18 W
Internal I/O 1.47 W
Additional power dissipation caused by actuators (resistive) [W] -
Certifications
CE Yes
UKCA Yes
ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X
UL cULus E115267
Industrial control equipment
HazLoc cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5
DNV Temperature: B(0 - 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck)
LR ENV1
KR Yes
ABS Yes
EAC Yes
KC Yes
Digital inputs
Nominal voltage 24 VDC
Input characteristics per EN 61131-2 Type 1
Input voltage 24 VDC -15% / +20%
Input current at 24 VDC Typ. 2.68 mA
Input circuit Sink
Input filter
Hardware ≤100 μs
Software Default 1 ms, configurable between 0 and 25 ms in 0.2 ms increments
Connection type 1-wire connections
Input resistance Typ. 8.9 kΩ
Simultaneity
With 24 V I/O power supply 100% (16 channels)
With 28.8 V I/O power supply 75% (12 channels)
Switching threshold
Low <5 VDC
High >15 VDC
Insulation voltage between channel and bus 500 Veff
Electrical properties
Electrical isolation Channel isolated from bus
Channel not isolated from channel
Operating conditions
Mounting orientation
Horizontal Yes
Vertical Yes
Installation elevation above sea level
0 to 2000 m No limitation
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529 IP20
Ambient conditions
Temperature
Operation
Horizontal mounting orientation -25 to 60°C
Vertical mounting orientation -25 to 50°C
Derating See section "Derating".
Storage -40 to 85°C
Transport -40 to 85°C
Relative humidity
Operation 5 to 95%, non-condensing
Storage 5 to 95%, non-condensing
Transport 5 to 95%, non-condensing
Mechanical properties
Note Order 1x terminal block X20TB1F separately.
Order 1x bus module X20BM11 separately.
Pitch 12.5+0.2mm
