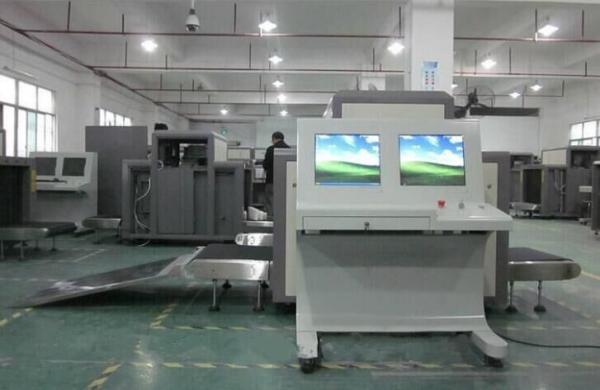

ABNM 8065 X ray baggage scanner for bus station, railway station use
ABNM 8065 X ray baggage scanner for bus station, railway station use
Specifications
Place of Origin :
CHINA
Brand Name :
ABNM
Certification :
CE, ISO9001
Model Number :
ABNM-8065
MOQ :
1 set
Price :
18000USD
Packaging Details :
wooden case
Delivery Time :
5 days
Payment Terms :
TT or Western Union
Supply Ability :
50pcs per month
Description
ABNM 8065 34mm steel plate penetration X ray baggage scanner
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: 8065 (can customize)
Color: gray
Conveyor Max Load: 200kg
Tunnel size: 800mm(W)*650mm(H)
Packaging & Delivery
Packaging Details: netural packing with wood !
Delivery Detail: 2 working days !
Characteristics:
Alarm by sounds&light: Alarm by sound and light when confirm to condition
Network interface:It can connect to local area network and support multi-terminal check baggage at same time.
Safety ray: Transmit ray under automatic control, avoiding any baggage missing.
Image monitoring for user-friendly:The monitor use fold, rotary system, operators, adjusts the monitor position willfully
according to our own need, reduce wearily.
Simple operation by mouse: Without keyboard and work table, control by mouse, save space.
Turn off a key control:Turn off the machine only need one step, revolove the key then the equipment automatic secuirty
close down and no need complex steps.
Eagle-eye:It can be expediently observing enlarged area.
Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for maintenance.
Parameters:
Orientation
Vertically upward
Anode Voltage
100-160KV(adjustable)
Angel
60°
Generator cooling/working periods
Sealed oil bath with forced air/100
Tube Current:
0.4~1.2MA (adjustable)
Tunnel size
800mm(W)*650mm(H)
Conveyor speed
0.22m/s
Conveyor Max Load
200KG
Single inspection dosage
< 1.5μGy
Steel Penetration
32MM armor plate
Penetrate resolution:
Dia 0.511mm
Film Safety:
For ISO 1600
Maximum leakage radiation
<0.5μGY/H
Resolution:
<0.0787mm Metal Wire
Spatial resolution
Level: dia1.0mm, Vertical: dia1.3mm
Operation temperature/Humidity
0°C-45°C/20%-95%(non-condensing)
Storage Temperature/Humidity
-20°C-60°C/20%-95%(non-condensing)
Operation Power
220VAC(±10%)50±3Hz
Power Consumption
1.0 KW (max), 0.3KW(working)
Noise
<58DB
