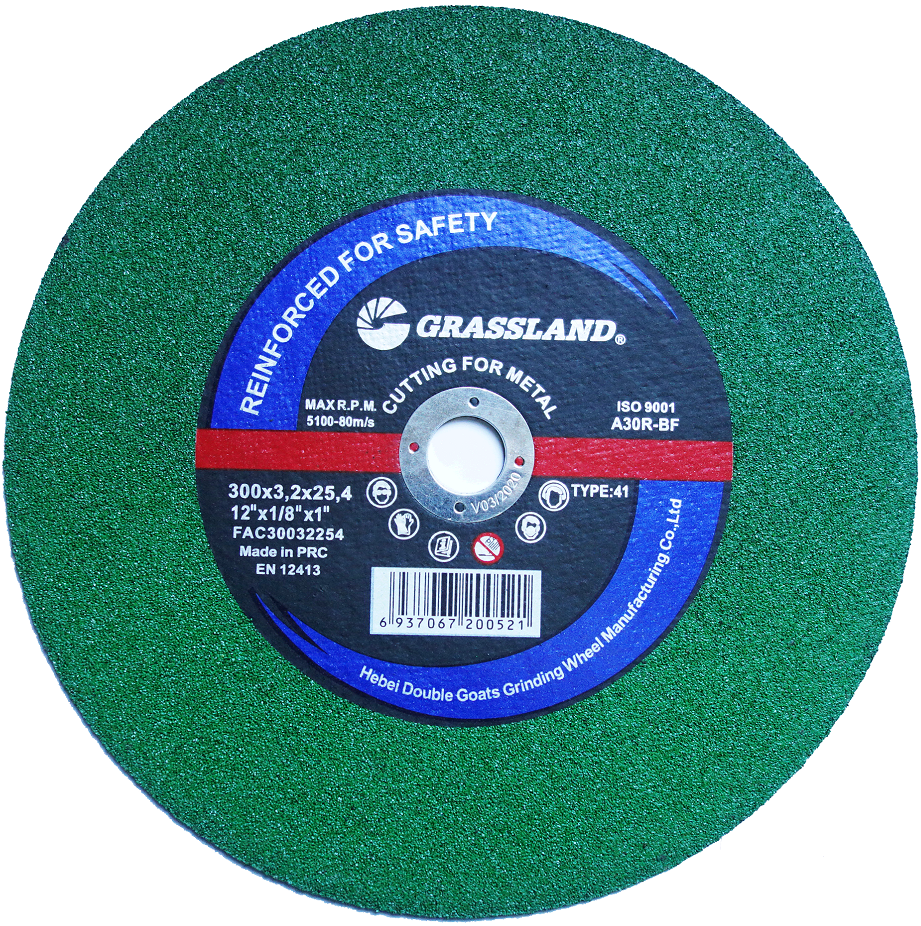

Grassland Metal Cutting Disc 12" (300mm) x 3.5 x 25.4mm cut off blade for chop saw
Product information--
Resin-bonded glass fibre reinforced aluminium oxide.
Ideal for cutting ferrous and non-ferrous metals.
Suitable for all metal-cutting applications.
Compatible with 20 mm bore angle grinders.
Manufactured to EN12413 and MPA approved/max 5100 rpm.
Size Name:300 x 3 x 20mm
Top quality metal cutting discs for all makes of angle grinders.
MPA approved.
A cutoff saw wheel is larger than either an angle grinder or circular saw disc. It is typically 10 or 12 inches in diameter. The saw's cutoff motion drops the disc down through the material for a clean cut at a straight 90 degrees. Metal discs for cutoff saws may require lubrication from saw wax to prevent overheating. Cutoff saws are used for cutting pipe, metal studs, metal strap and square metal stock.
Grassland offers a wide range size of abrasive wheel,cutting and grinding steel, iron, stainless steel, non-ferrous metals, high tensile alloys, as well as concrete, masonry, brick and stone. Made from aluminum oxide, silicon carbide, or zirconia, our grinding wheels are designed for all of your grinding and cutting applications suitable for most every type of material.
Grassland Grinding wheels and cut-off wheels are covered in abrasive grit and used for grinding, cutting, and machining applications. Grinding wheels remove material from metal, glass, wood, brick, or concrete. Cut-off wheels cut or notch these surfaces.
Cutting wheel information: | |||
Product Name | 12 inch metal Cut off discs | Abrasive | Aluminum oxide and corundum |
Hardness | R Grade | Net Grade | Reinforced fiberglass |
Max working speed | 80 m/s
| OEM Service | Acceptable |
R.P.M | 5100 | Package | Kraft Carton and Pallet
|
Grit size | 30#,46#,60# | HS Code | 68042210 |
Certificate
| ISO9001 and MPA EN12413,
| Loading Port | Tianjin or else |
1.T42 Depressd center grinding discs
Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
Depressed Cutting disc for metal 80m/s | DAC1003216 | T42-100X3.2X16MM | PC | 400 | 21.5/20.5 | 22X22X19.7 |
DAC1153222 | T42-115X3.2X22.2MM | PC | 200 | 14/15 | 24.5*24.5*22.2 | |
DAC1253222 | T42-125X3.2X22.2MM | PC | 200 | 16/17 | 26.5*26.5*22.2 | |
DAC1503222 | T42-150X3.2X22.2MM | PC | 200 | 25/26 | 32*32*22.2 | |
DAC1803222 | T42-180X3.2X22.2MM | PC | 100 | 18/19 | 37.5*19*23.7 | |
DAC2303222 | T42-230X3.2X22.2MM | PC | 50 | 14/15 | 24*24*23.7 | |
DAC2503222 | T42-250X3.2X22.2MM | PC | 50 | 17.5/16.5 | 25*25*21 |
2-Type1 Flat metal cutting discs
Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
Flat cutting disc for metal 80 m/s | FAC3003225 | T41-300X3.2X25.4MM | PC | 25 | 13/14 | 30*30*9.5 |
FAC3004025 | T41-300X4.0X25.4MM | PC | 25 | 14/15 | 30*30*11 | |
FAC3503225 | T41-350X3.2X25.4MM | PC | 25 | 17/18 | 35.5*35.5*9.5 | |
FAC3504025 | T41-350X4.0X25.4MM | PC | 20 | 17/18 | 35.5*35.5*9.5 | |
FAC4003225 | T41-400X3.2X25.4MM | PC | 25 | 22/23 | 40*40*9.5 | |
FAC4004025 | T41-400X4.0X25.4MM | PC | 20 | 22/23 | 40*40*11 |
