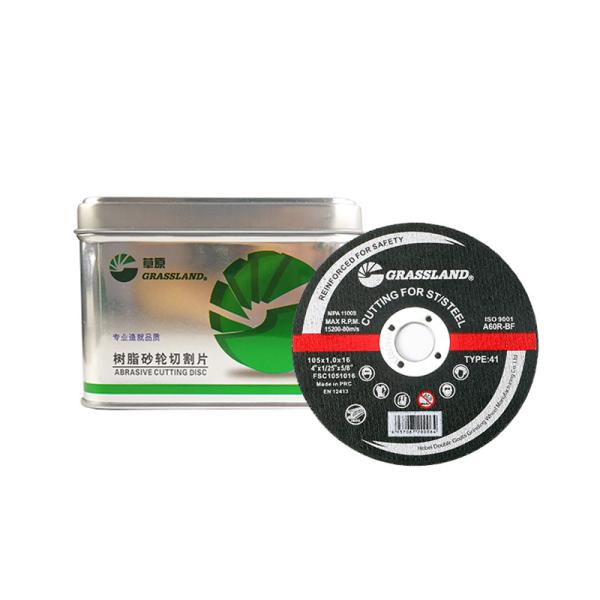

4X1/25X5/8 105mm Abrasive Inox Super Thin Cutting Disc
4X1/25X5/8 105mm Abrasive Inox Super Thin Cutting Disc
Specifications
Brand Name :
Grassland
Model Number :
105X1.0X16 4"x1/25"x5/8"
Certification :
ISO 9001,ISO14001 and MPA EN 12413
Place of Origin :
China
MOQ :
10000 PCS
Price :
US$0.14-0.20
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
350 thousand PCS PER day
Delivery Time :
30-60 Days
Packaging Details :
shrink wrap-inner box-carton-enhanced pallet
abrasive :
aluminium oxide SA
color :
black
Hardness :
R
Max working speed :
80 M/S
Grit size :
24#,30#,46#,60#
Iterm NO. :
DSC1051016
Application :
Ferrous metal steel Inox stainless steel
Bonding agent :
resin bonded
arbor size :
5/8 in
Disc type :
flat center type
Description

super thin Cutting Disc 4inch 105mm stainless steel Abrasive inox professional quality 105X1.0X16 4"x1/25"x5/8"

Products Description--

• Applications:

Cutting metals in the form of rebar, channels, angle profiles, pipes and sheet

Discs with a thickness of less than 2 mm are recommended for cutting stainless steel

Specially developed for cutting steel and stainless steel (INOX) – the disc composition contains less than 0.1% iron, sulfur or chlorine

Cutting off rebar ends

• Diameter: 105mm (4 inch)
• Thickness: 1.0mm
• Hole/Bore: 16mm
• Vmax: 80 m/s
• Max RPM: 15200

Outstanding balance between lifetime and cutting speed

Precise cutting thanks to reduced disc thickness (applies to discs with a thickness of less than 2 mm)

Complies with both the EN 12413 and OSA (Organization for the Safety of Abrasives) standards for enhanced safety

Cutting disc information:
Product Name Inox super thin cutting disc Abrasive Monocrystalline fused alumina
Hardness R Grade Net Standard Reinforced fiberglass
Max working speed

80 m/s

 OEM Service Acceptable
R.P.M 15200 Package

Color box Kraft Carton and Pallet
Grit size 24#,30#,46#,60# HS Code 68042210

Certificate

MPA EN12413,ISO9001

 Loading Port Tianjin or else

-Flat center Inox stainless steel cutting discs

4


--Flat inox cutting discs
Description of goods Item No Specification Unit PCS/CTN N.W./G.W.(KGS) CARTON SIZE(CM)
Flat cutting disc for inox/Alu 80m/s FSC0751009 T41-75X1.0X9.5MM PC 800 9/10 34*17*17
FSC0751695 T41-75X1.6X9.5MM PC 800 14/15 34*20*17
FSC1001016 T41-100X1.0X16MM PC 400 8.5/9.5 22*22*15.7
FSC1002016 T41-100X2.0X16MM PC 400 15/16 29.7*22*22
FSC1151022 T41-115X1.0X22.2MM PC 400 11/12 24.5*24.5*15.7
FSC1151622 T41-115X1.6X22.2MM PC 400 14/15 24.5*24.5*19.2
FSC1152022 T41-115X2.0X22.2MM PC 200 9.5/10.5 24.5*24.5*13.2
FSC1251022 T41-125X1.0X22.2MM PC 400 13/14 26.5*25.6*15.7
FSC1251622 T41-125X1.6X22.2MM PC 400 17/18 26.5*25.6*19.2
FSC1252022 TT41-125X2.0X22.2MM PC 200 10.5/11.5 26.5*26.5*13.2
FSC1501622 T41-150X1.6X22.2MM PC 200 12/13 32*32*11.7
FSC1502022 T41-150X2.0X22.2MM PC 200 16.5/17.5 32*32*13.2
FSC1801622 T41-180X1.6X22.2MM PC 200 20/21 37.5*19*22.7
FSC1802022 T41-180X2.0X22.2MM PC 100 10.5/11 37.5*19*13.2
FSC2301622 T41-230X1.6X22.2MM PC 50 8/9 24*24*11.7
FSC2302022 T41-230X2.0X22.2MM PC 100 18.5/19.5 24*24*25.7
4
