MachineU > China Products > Tools & Hardware > Abrasives > Abrasive Tools
24 Grit 230 X 6.8 X 22mm Abrasive Wheel For Angle Grinder
24 Grit 230 X 6.8 X 22mm Abrasive Wheel For Angle Grinder
Specifications
Brand Name :
Grassland
Model Number :
180X6.0X22.2
Certification :
ISO 9001,ISO14001 and MPA EN 12413
Place of Origin :
China
MOQ :
10000 PCS
Price :
US$1.1-1.2
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
300 thousand PCS PER day
Delivery Time :
30-60 Days
Packaging Details :
shrink wrap-inner box-carton-enhanced pallet
abrasive :
aluminium oxide SA
shape :
round disc
Hardness :
A24RBF
Max working speed :
80 M/S
Grit size :
24#,30#,46#,
Nets :
3 reinforced fiberglass nets
Application :
Ferrous metal steel and Inox
Bonding agent :
resin bonded
arbor size :
5/8 in
Disc type :
Depressed center type
Description

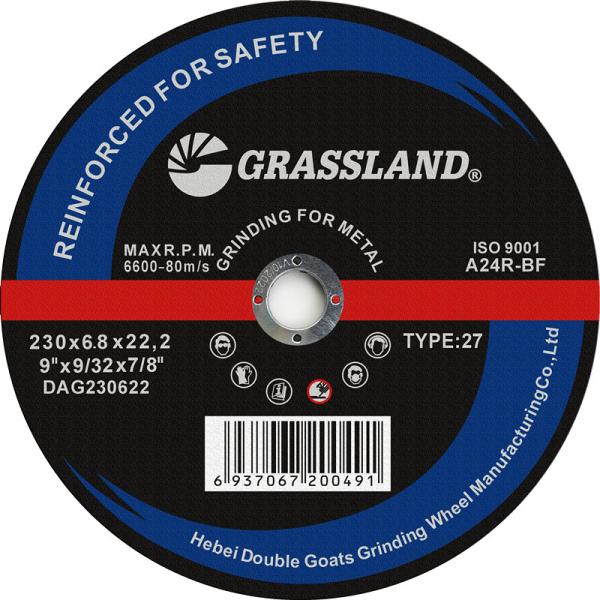

230 x 6.8 x 22mm Metal Grinding Disc Wheel

Products Description--

Disc Diameter: 230 mm (9″)
Bore Diameter: 22.2 mm (7/8″)
Disc Thickness: 6.8 mm
Disc Configuration: Type-27 – Depressed Centre
A24/30T-BF27


Safety Information

Maximum RPM: 6,650 (80 m/s)
Complies with following standards:
EN 12413 – European Standard

Recommended PPE (Personal Protective Equipment):
Safety Glasses
Safety Gloves
Hearing Protection
Respiratory Protection


Material Suitability

Steel & other Ferrous Metals

GRASSLAND Grinding wheels are manufactured with heat treated aluminum oxide grains in high concentrations for smooth effortless use when grinding, deburring welds, or dressing. 9" grinding discs are balanced to avoid vibration during use and manufactured with a dual grit structure which is ideal for blending and grinding. Additionally, made with high tensile strength fiberglass mesh layers for maximum safety.

Application: Grinding Steelwork Dressing Welds and materials like material for metal, concrete, masonry, pipeline, asphalt, and stainless steel cutting

Cutting wheel information:
Product Name 230X 6.8 X 22.23MM Abrasive Monocrystalline fused alumina
Hardness R Grade Net Standard Reinforced fiberglass
Max working speed

80 m/s

 OEM Service Acceptable
R.P.M 6650 Package

Kraft Carton and Pallet
Grit size 24#,30#,46#, HS Code 68042210

Certificate

MPA EN12413,ISO9001

 Loading Port Tianjin or else

-Depressed center Inox grinding discs

Item Code Dimension Dimension Speed Standard
(MM) (Inch) (r.p.m)
DAC1002516 100*2.5*16 4*3/32*5/8 15200 80m/s
DAC1003016 100*3.0*16 4*1/8*5/8 15200 80m/s
DAC1152522 115*2.5*22.23 4-1/2*3/32*7/8 13300 80m/s
DAC1153022 115*3.0*22.23 5*1/8*7/8 13300 80m/s
DAC1252522 125*2.5*22.23 6*3/32*7/8 12200 80m/s
DAC1253022 125*3.0*22.23 7*1/8*7/8 12200 80m/s
DAC1502522 150*2.5*22.23 4-1/2*3/32*7/8 10200 80m/s
DAC1503022 150*3.0*22.23 5*1/8*7/8 10200 80m/s
DAC1802522 180*2.5*22.23 6*3/32*7/8 8500 80m/s
DAC1803022 180*3.0*22.23 7*1/8*7/8 8500 80m/s
DAC2302522 230*2.5*22.23 9*3/32*7/8 6600 80m/s
--Flat inox cutting discs
Description of goods Item No Specification Unit PCS/CTN N.W./G.W.(KGS) CARTON SIZE(CM)
Flat cutting disc for inox/Alu 80m/s FSC0751009 T41-75X1.0X9.5MM PC 800 9/10 34*17*17
FSC0751695 T41-75X1.6X9.5MM PC 800 14/15 34*20*17
FSC1001016 T41-100X1.0X16MM PC 400 8.5/9.5 22*22*15.7
FSC1002016 T41-100X2.0X16MM PC 400 15/16 29.7*22*22
FSC1151022 T41-115X1.0X22.2MM PC 400 11/12 24.5*24.5*15.7
FSC1151622 T41-115X1.6X22.2MM PC 400 14/15 24.5*24.5*19.2
FSC1152022 T41-115X2.0X22.2MM PC 200 9.5/10.5 24.5*24.5*13.2
FSC1251022 T41-125X1.0X22.2MM PC 400 13/14 26.5*25.6*15.7
FSC1251622 T41-125X1.6X22.2MM PC 400 17/18 26.5*25.6*19.2
FSC1252022 TT41-125X2.0X22.2MM PC 200 10.5/11.5 26.5*26.5*13.2
FSC1501622 T41-150X1.6X22.2MM PC 200 12/13 32*32*11.7
FSC1502022 T41-150X2.0X22.2MM PC 200 16.5/17.5 32*32*13.2
FSC1801622 T41-180X1.6X22.2MM PC 200 20/21 37.5*19*22.7
FSC1802022 T41-180X2.0X22.2MM PC 100 10.5/11 37.5*19*13.2
FSC2301622 T41-230X1.6X22.2MM PC 50 8/9 24*24*11.7
FSC2302022 T41-230X2.0X22.2MM PC 100 18.5/19.5 24*24*25.7
