30W 220V Small Single Phase AC Motor 60HZ YDK 80mm 70W For Air Purifier
30W 220V Small Single Phase AC Motor 60HZ YDK 80mm 70W For Air Purifier
30W 220V Small Single Phase AC Motor 60HZ YDK 80mm 70W For Air Purifier
30W 220V Small Single Phase AC Motor 60HZ YDK 80mm 70W For Air Purifier
30W 220V Small Single Phase AC Motor 60HZ YDK 80mm 70W For Air Purifier
30W 220V Small Single Phase AC Motor 60HZ YDK 80mm 70W For Air Purifier
Specifications
Brand Name :
HS
Model Number :
YDK-10W-4P
Certification :
CCC
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
15 work days
Packaging Details :
standard exporting carton package, ship by sea or air freight.
Name :
Single Phase AC Induction Motor
Voltage :
110-115V/208-230V
Phase :
Single phase
Application :
Ventilation
Power :
8-40W
Speed :
1000-2000rpm
Frequency :
50/60hz
Insulation :
Class B
Description

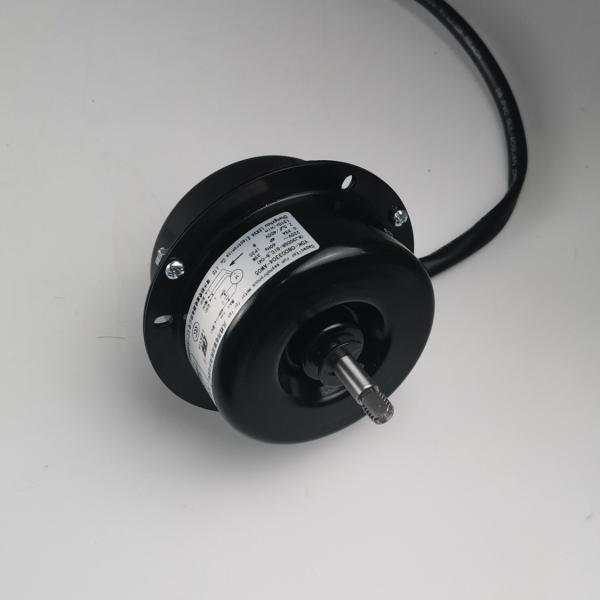

Single phase 30W 220V 60HZ YDK80mm 70W ac induction motor for air purifier

Introduction

This is a type of single phase capacitor run motor. It is designed for air purifier and other similar application. The shaft and power and speed can redesign base on different requirements, so the ac induction motor can also used for air blower,ventilation fans etc. Motors are customized by different requirements and we can sell motors with fans as solution.

Quick Details

Output Power:8-40W

Type:Asynchronous Motor, Induction Motor

Frequency:50/60hz

Phase:Single-phase

Certification:CCC, CE, ROHS, UL

Protect Feature:Totally Enclosed

Voltage:115/120 V/208-230V

Insulation:Class B

Specification

Model Voltage Hz RPM Output Power
YDK-10W-4P 220/110 50/60 1100 10
YSK-20W-4P 220/110 50/60 1350 20
YSK-30W-4P 220/110 50/60 1160 30
YSK-45W-4P 220/110 50/60 1250 40

Features

• Multi base/ mounting solution available

• Custom OEM designs available upon request

• 10W to 40W rated range

• 4P/2P available

• PSC/CSCR/CSIR/SPIR run type available

• External capacitor ; Automatic reset protector device

• IP20 or IP44

• Variety speeds motor available

• Anti-rust treatment for shaft

More information

Most single-phase induction motors are unidirectional, which means they are designed to rotate in one direction. Either by adding extra windings, external relays and switches, or by adding gear mechanisms, the direction of rotation can be changed. Using micro controller-based control systems, one can add speed variation to the system. In addition to the option of speed variation, the direction of rotation can also be changed, depending upon the motor control algorithms used. Permanent Split Capacitor (PSC) motors are the most popular type of single-phase induction motors. We produce many different type of single-induction motors, feel free to send us email.
