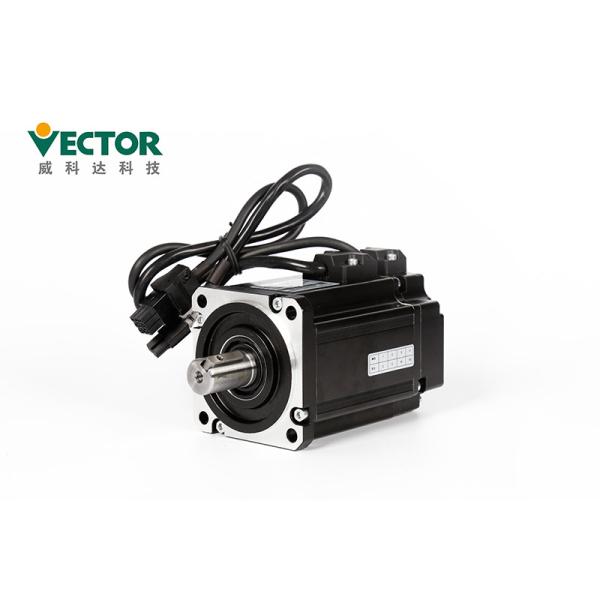

7.5kw AC380V Servo Drive System For 3C Electronic Equipment
7.5kw AC380V Servo Drive System For 3C Electronic Equipment
7.5kw AC380V Servo Drive System For 3C Electronic Equipment
7.5kw AC380V Servo Drive System For 3C Electronic Equipment
Specifications
Brand Name :
Vector
Model Number :
VEC-VC-02733HC-M-E/180ME-7R515A33-MF2C
Certification :
CE
Place of Origin :
China
MOQ :
1 kit
Price :
USD 300-450 / kit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 kits/month
Delivery Time :
3-5 work days
Packaging Details :
280*208*78mm
Voltage :
380V
Power :
1.3KW
Rated Current :
3A
Rated Speed :
2500 rpm
Rated Torgue :
5 N.m
Phase :
3 Phase
Motor flange size :
130mm
Communication Protocols :
Modbus/CANopen/EtherCAT
Model :
VEC-VC-02733HC-M-E/180ME-7R515A33-MF2C
Application :
3C Electronic Equipment
Description

Internal Planning Position 7.5kw 380V AC Servo Drives System For 3C Electronic Equipment

Vector Tech. Focus on Servo system for more than 17 years. Focusing on industrial automation products

with independent intellectual property rights, we are positioned to serve high end equipment manufacturers

and provide overall solutions for customers in market segments. To become the world's leading provider of

industrial automation products and solutions. Independently developed products include servo drive, motion

controller, human-machine interface, servo motor, etc.,

Products Description

Products 7.5kw 380V AC Servo Drives System
Brand Vector
Model No. VEC-VC-02733HC-M-E/180ME-7R515A33-MF2C
Power 7.5KW
Voltage 380V
Phase Three Phase
Rated Speed 1500 rpm
Rated Current 27.6A
Rated Torgue 48 N.m
Communication Protocols Modbus/CANopen/EtherCAT

Voltage Control Mode Single-phase / three-phase full-controlled rectification
SVPWM modulation
Encoder Encoder Feedback 2500 pulse incremental + Hall encoder;
2500 pulse incremental;
17bit Tamagawa absolute encoder;
23bit Tamagawa absolute encoder;
24bit Nikon absolute encoder;
Pulse Command Input Pulse Type Differential input,Open collector
Frequency Range Differential input:0-500kHz,pulse width greater than 1us
Open collector: 0-300kHz,pulse width greater than 2.5us
Pulse Mode pulse + direction; AB pluses; CW+CCW;
Analog Input Voltage Range -10V to 10V
Input Impedance 10kΩ
Maximum Frequency 1.5kHz
DI/DO Interface Type NPN/PNP
Communication Modbus/CANopen/EtherCAT
Position Mode Command Input Method Pulse Command
Internal Planning Position
Plan by target position, speed, acceleration and deceleration
time
Trapezoidal speed curve
Cubic speed curve
Absolute / relative command mode
Instruction Smoothing Mode Low Pass Filtering / Median Filtering
Electronic Gear Ratio N/M;(M=1~2147483647,N=1~2147483647)
Torque Limit Internal Torque Limit / Analog Torque Limit
Feedforward Compensation Speed Feedforward / Torque Feedforward
Torque Compensation Fixed Torque Compensation / Analog Torque Compensation /
Automatic Torque Compensation;
Speed Contol Mode Command Input Type Pulse Frequency / Analog / Internal Planning Speed
Speed Control Range 1~max speed
Bandwidth 1kHz
Torque Limit Internal Torque Limit / Analog Torque Limit
Instruction Smoothing Mode Low Pass Filtering / Median Filtering
Feedforward Compensation Torque feedforward
Torque Compensation Fixed Torque Compensation / Analog Torque Compensation /
Automatic Torque Compensation;
Torque Control Mode Command Input Type Internal Torque Reference / Analog Control Torque
Torque Compensation Fixed Torque Compensation / Analog Torque Compensation /
Automatic Torque Compensation;
Speed Limit Internal Speed Limit / Analog Speed Limit

Details about a Servo Drive, how to select the Servo drive model and do installation?

7.5kw AC380V Servo Drive System For 3C Electronic Equipment

Key Name Key function
Mode mode switch, return to the previous menu
▲(add) increase flashing bit value of the LED digital tube
▼(dec) Decrease flashing digit value of the LED digital tube
◄◄(shift) Moves the blinking LED tube to the left; checks the high value of data
longer than 5 bits; Fault reset;execute Fn function
SET read/write parameter values

● Install the driver on a dry and sturdy platform. Maintain good ventilation and

heat dissipation during installation and maintain good grounding.

● Please install in the specified direction to avoid malfunction.

● When installing, please ensure that the servo driver is kept at a specified

distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.

7.5kw AC380V Servo Drive System For 3C Electronic Equipment

● When installing, do not block the suction and exhaust ports, and do not allow foreign objects inside the

product to enter, otherwise it may cause malfunction or fire due to aging of internal components.

● Do not place heavy objects on or under this product as this may result in injury.

● Please install in the following environment:

1.places without direct sunlight;

2.Locations where the ambient temperature is in the range of 0 ° C to 55 ° C;

3.Relative humidity in the range of 0% to 95%, and no condensation;

4.Locations free of water droplets, vapors, dust and oily dust;

5.Locations where there is no high heat device;

6.Non-corrosive, flammable gas and liquid sites;

7.It is not easy to splash water, oil and medicine;

8.places that are not exposed to radioactive radiation;

9.Strong and vibration-free places;

10.Locations where there is no electromagnetic noise interference.

Installation
Environment
Requirements		 Atmospheric Pressure 86~106kPa
Mbient Humidity 0~55℃
Ambient Temperature 0~90%RH
IP Rating IP20
Vibration 0~4.9m/s^2

7.5kw AC380V Servo Drive System For 3C Electronic Equipment

7.5kw AC380V Servo Drive System For 3C Electronic Equipment
Servo motor description - How to select the servo motor

7.5kw AC380V Servo Drive System For 3C Electronic Equipment

7.5kw AC380V Servo Drive System For 3C Electronic Equipment

Delivery Time and Shipping Way

Quantity 1-5 kits 50-100 kits 200-500 kits
Delivery time Within 3 days 5-10 days 15-25 days

1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.
