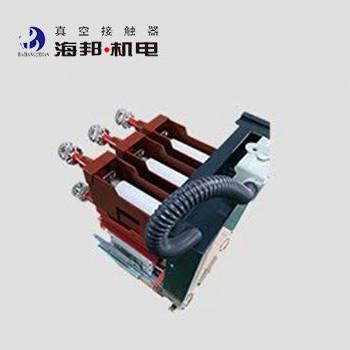

7.2kV 200A Three Phase Vacuum Contactor Fuse Combination Unit
7.2kV 200A Three Phase Vacuum Contactor Fuse Combination Unit
Specifications
Place of Origin :
china
Price :
Negotiable
Delivery Time :
7-15work days
Payment Terms :
Payment Terms: L/C, T/T, D/A, D/P
Description

General Description:

Hai Bang 7.2kV Vacuum Contactor-Fuse Combination Unit – Type HCR-7.2J(D)Y/D315-50T is applicable on AC 50-60Hz power systems and rated voltage 7.2kV, rated current 315A. The rated voltage of the typeHCR-12J(D)Y/D200-50T is 12kV, and its rated current is 200A. They can be installed in the switch cabinet to form an F-C circuit and used in conjunction with a comprehensive protector. The Vacuum Contactor Unit combines a high-voltage fuse capable of breaking a wide range of short-circuit fault currents with a vacuum contactor that can be frequently operated. The Vacuum Contactor-Fuse Combination unit can be used for frequent starting of motors and frequent switching of transformers and capacitors. Vacuum Contactor-Fuse Combination unit is widely used in power systems such as power plants, chemicals, coal mines, metallurgy, ports and wharfs. It can be used by power plants and industrial and mining enterprises to switch on and off AC high-voltage motors, transformers, induction furnaces and other loads, and has the function of short-circuit protection. The trolley at the bottom of the 7.2kV Vacuum Contactor-Fuse Combination unit can be easily moved out of the control cabinet. The altitude of the environment where the product is used does not exceed 1000 meters above sea level.

Technical Data:

Name

Unit

 Value

Main circuit

 Rated working voltage (Ue)

kV

7.2

12
Rated working current (Ie)(Depends on the fuse)

A

≤315

 ≤200
Rated frequency (fr)

Hz

 50~60
Rated expected short-circuit breaking current (effective value)

kA

 ≤50
Rated expected short-circuit making current (peak value)

kA

 125
Power frequency withstand voltage

Wiring terminal to earth

kV

32

42

Vacuum breaks

kV

32

 42
Lightening impulse withstand voltage

kV

60

 75

Control circuit

 Rated voltage (Us)

V

AC 110/220/380
DC 110/220
Rated power (Ps)electric holding

VA

 ≤1000/100 (absorbing/holding)
Rated power (Ps) mechanical holding

VA

 ≤900/600 (Closing/opening)

Auxiliary circuit

Form

(6a+6b)
Rated value AC 380V/5A

Control circuit, auxiliary circuit to earth power frequency withstand voltage

kV

 2

Rated operating frequency

Long-term

time/h

300

Short-term

time/h

 600

Mechanical endurance

10000 times

 30

Electrical endurance

10000 times

 10(AC-3)

Mechanical characteristics

 Closing time

ms

≤150
3-phase asynchronous time

ms

 ≤3
Original opening time

ms

 ≤150(electric holding), ≤60(mechanical holding)
Closing tripping

ms

 ≤4

Remark:

1. Rated control voltage can be made according to customer’s requirements.

2. For the mechanical holding type, the locking device needs to be replaced every 100,000 times.
