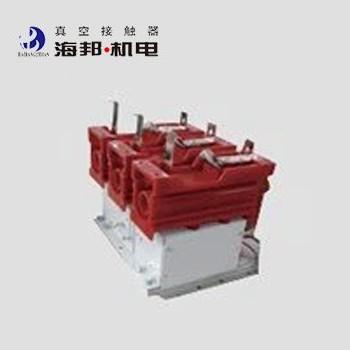

Horizontal 7.2kV Vacuum Contactor 50Hz / 60Hz High Voltage
Horizontal 7.2kV Vacuum Contactor 50Hz / 60Hz High Voltage
Specifications
Place of Origin :
china
Price :
Negotiable
Delivery Time :
7-15work days
Payment Terms :
Payment Terms: L/C, T/T, D/A, D/P
Mounting Type :
Horizontal
Contact System :
Vacuum
Number Of Poles :
3
Rated Frequency :
50/60Hz
Description

General Description:

Hai Bang High Voltage Horizontal Vacuum Contactor is applicable on AC 50-60Hz power systems, rated voltage 7.2kV and 12kV, rated current 160A, 250A, 400A, 630A. This type of high voltage vacuum contactor is used to directly or remotely connect and disconnect the main circuit and frequently control capacitive loads, AC motors, transformers and other electrical equipment. This type of Horizontal Vacuum Contactor is used in power grid reactive power compensation, chemical industry, metallurgy, water supply and drainage treatment, coal mine equipment and other occasions. The altitude of the environment where the Vacuum Contactor Unit is used does not exceed 1000 meters above sea level.

Application Condition:

a. Ambient Air Temperature: -25℃～+40℃,24-hour average must NOT exceed +35℃;

b. Altitude: 1000m or Lower;

c. Relative Humidity: Daily average less than 95%, Monthly average less than 90%, Must NOT exceed 50% when Ambient Air Temperature reaches +40℃;

d. Operation Environment: Ambient air shall not be contaminated by corrosive, flammable or explosive gas and water vapor, Contamination Level: Level III;

e. Installation of 7.2kV Horizontal Vacuum Contactor:

When operating, the tilt angle between the surface of installed Vacuum Contactor unit and the horizontal plane shall NOT exceed 5°.

Note: In case the above conditions cannot meet the user's requirements, the user can negotiate with the manufacturer for special treatment of the product.

Technical Data:

Name

Unit

Value

Main circuit

Rated working voltage (Ue)

kV

7.2

12

Rated working current (Ie)

A

160A, 250A, 400A, 630A

Rated frequency (fr)

Hz

50~60

Rated connecting capacity

A

10Ie

Rated breaking capacity

A

8Ie

Rated short time withstand current

A

10Ie

Rated peak withstand current

A

25Ie

Ultimate breaking capacity

A

10Ie

Rated short circuit duration

s

4

Power frequency withstand voltage

Wiring terminal to earth

kV

32

42

Vacuum breaks

kV

32

42

Lightening impulse withstand voltage

kV

60

75

Control circuit

Rated voltage (Us)

V

AC 110/220/380

DC 110/220

Rated power (Ps)electric holding

VA

≤1000/100 (absorbing/holding)

Rated power (Ps) mechanical holding

VA

≤900/600 (Closing/opening)

Auxiliary circuit

Form

(3a+3b)~(6a+6b)

Rated value

AC 380V/5A

Control circuit, auxiliary circuit to earth power frequency withstand voltage

kV

2

Rated operating frequency

Long-term

time/h

120

Short-term

time/h

360

Mechanical endurance

10000 times

30

Electrical endurance

10000 times

25(AC-3),10(AC-4)

Mechanical characteristics

Closing time

ms

≤150

3-phase asynchronous time

ms

≤3

Original opening time

ms

≤150(electric holding), ≤60(mechanical holding)

Closing tripping

ms

≤4

Remark: rated control voltage can be made according to customer’s requirements.
