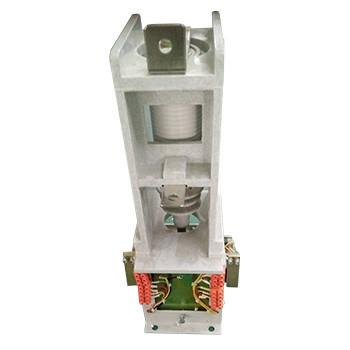

2500A Single Phase Vacuum Contactor - High Voltage Vacuum Contactor
2500A Single Phase Vacuum Contactor - High Voltage Vacuum Contactor
2500A Single Phase Vacuum Contactor - High Voltage Vacuum Contactor
2500A Single Phase Vacuum Contactor - High Voltage Vacuum Contactor
Specifications
Brand Name :
haibang
Place of Origin :
china
Description

Single Phase 2500A Vacuum Contactor - Single phase High Voltage Vacuum Contactor, rated voltage 7.2kV, 12kV, rated current 1600A~2500A

General Description:

Hai Bang Single Phase 2500A Vacuum Contactor – Type JCZ1-12D/D1600~2500 is suitable for AC 50~60Hz power systems, main circuit rated voltage 7.2kV, 12kV, rated current 1600A~2500A. This type of Single Phase Vacuum Contactor is mainly used as a grounding switch when a single-phase ground fault occurs. Haibang Single Phase 2500A Vacuum Contactor could be used in arc suppression cabinets and electrical occasions that require single-phase control. The altitude of the environment where the Single Phase Vacuum Contactor is used does not exceed 1000 meters above sea level (Type G does not exceed 2500 meters).

We have another type of 12kV(7.2kV) Single Phase Vacuum Contactor, whose rated current are 160A, 250A, 400A, 630A. Please refer to the categories for more information.

We also have Plateau type of 12kV(7.2kV) Single Phase Vacuum Contactor with patent design, which could operate safely and stably within an altitude of 5000m above sea level. Please refer to the categories for more information.

Technical Data:

ame Unit Value
Main circuit Rated working voltage (Ue) kV 7.2 12
Rated working current (Ie) A 1600~ 2500
Rated frequency (fr) Hz 50~60
Rated connecting capacity A 4Ie (AC-2)
Rated breaking capacity A 4Ie (AC-2)
Rated short circuit duration s 4
Power frequency withstand voltage Wiring terminal to earth kV 32 42
Vacuum breaks kV 32 42
Lightening impulse withstand voltage kV 60 75
Control circuit Rated voltage (Us) V AC 110/220/380
DC 110/220
Rated power (Ps) electric holding VA ≤1000/100 (absorbing/holding)
Auxiliary circuit Form (3a+2b)
Rated value AC 380V/5A,
DC 380V/1A
Control circuit, auxiliary circuit to earth power frequency withstand voltage kV 2
Rated operating frequency Long-term time/h 300
Short-term time/h 600
Mechanical endurance 10000 times 30
Electrical endurance 10000 times 10 (AC-4)
Mechanical characteristics Closing time ms ≤100
Original opening time ms ≤60
Closing tripping ms ≤5
Remark: rated control voltage can be made according to customer’s requirements.
