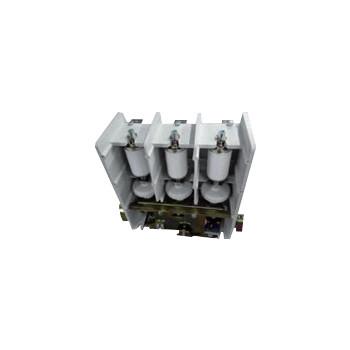

High Voltage 7.2kV 630A Vacuum Contactor
High Voltage 7.2kV 630A Vacuum Contactor
Specifications
Brand Name :
haibang
Place of Origin :
china
Description

7.2kV 630A Vacuum Contactor - High Voltage Vacuum Contactor, rated voltage 7.2kV, rated current 160A, 250A, 400A, 630A

General Description:

Hai Bang 7.2kV 630A Vacuum Contactor is applicable on AC 50-60Hz power systems, rated voltage up to 7.2 kV, rated current 160A, 250A, 400A, 630A. Haibang 7.2kV 630A Vacuum Contactor is widely used in power grid reactive power compensation, chemical industry, metallurgy, water supply and drainage treatment, underground coal mine equipment and other occasions. This type of high voltage vacuum contactor is used to directly or remotely connect and disconnect the main circuit and frequently control capacitive loads, AC motors, transformers and other electrical equipment. The altitude of the environment where the Vacuum Contactor is used does not exceed 1000 meters above sea level.

We have another type of 7.2kV Vacuum Contactor, whose rated current is 800A, 1000A, 1250A, 1600A, 2000A. Please refer to the categories for more information.

Types:

JCZ5-7.2J/D-160-1.6

JCZ5-7.2J/D-250-2.5

JCZ5-7.2J/D-400-4.0

JCZ5-7.2J/D-630-6.3

Technical Data:

Name Unit Value
Main circuit Rated working voltage (Ue) kV 7.2
Rated working current (Ie) A 160A, 250A, 400A, 630A
Rated frequency (fr) Hz 50~60
Rated connecting capacity A 10Ie (AC-4)
Rated breaking capacity A 8Ie (AC-4)
Rated short time withstand current A 10Ie
Rated peak withstand current A 25Ie
Rated short circuit duration s 4
Ultimate breaking capacity kA, time 6.3/3
Power frequency withstand voltage Wiring terminal to earth kV 32
Vacuum breaks kV 32
Lightening impulse withstand voltage kV 60
Rated single capacitor breaking current (C2) A 160
Control circuit Rated voltage (Us) V AC 110/220/380
DC 110/220
Rated power (Ps) electric holding VA ≤1000/100 (absorbing/holding)
Rated power (Ps) mechanical holding VA ≤900/600 (Closing/opening)
Auxiliary circuit Form (3a+2b)~(6a+5b)
Rated value AC 380V/5A,
DC 380V/1A
Control circuit, auxiliary circuit to earth power frequency withstand voltage kV 2
Rated operating frequency Long-term time/h 300
Short-term time/h 600
Mechanical endurance 10000 times 100
Electrical endurance 10000 times 25(AC-3), 10(AC-4)
Mechanical characteristics Closing time ms ≤200
3-phase asynchronous time ms ≤3
Original opening time ms ≤100(electric holding), ≤60(mechanical holding)
Closing tripping ms ≤5

Remark: 1. rated control voltage can be made according to customer’s requirements.

2. For the mechanical holding type, the locking device needs to be replaced every 100,000 times.
