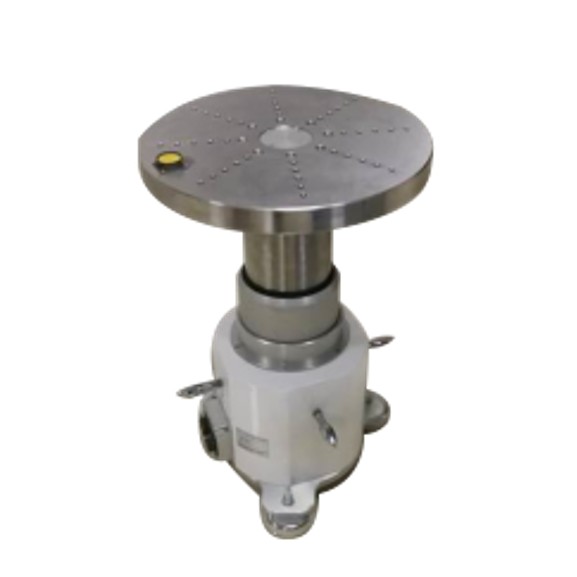

Multi Function Single Axis Motion Simulator Position Speed And Swing Test Table
Multi Function Single Axis Motion Simulator Position Speed And Swing Test Table
Specifications
Brand Name :
Firepower
Model Number :
1LT-500
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000/month
Delivery Time :
10 days for sample
Packaging Details :
carton with sponge
Product name :
multi-function turntable
Load capacity :
50kg
Table size :
Φ 500mm
Table facet flatness :
0.02 mm
Runout of table end face :
0.05mm
Magnetic flux leakage :
less than 1mT
Rotation accuracy :
± 3 ″
System bandwidth :
5~ 100Hz
Description

Position Speed And Swing Test Table Single Axis Motion Simulator

Single-axis multi-function turntable is a mature and high precision single-axis speed measuring equipment , which is mainly used in various position , speed and swing test and detection of rate gyro and its inertial measurement combination. After selecting the temperature control box , temperature control system , auxiliary shaft and other parts , the turntable can also be applied to the performance test of inertial navigation devices and inertial navigation systems at high and low temperatures . The turntable supporting computer has the ability to store the data related to the operation of the turntable , such as: time , turntable position , Angle rate , real-time value of the temperature of the table , and has the ability to output data through the serial port , and can be operated by an external computer (through the serial port) to control the turntable and temperature .

Index 1LT300 1LT500 1LT700 1LWT300 1LWT500 1LWT700 Unit
Vertical Vertical Vertical Vertical & Horizontal Switchable /
30 30/50 50/70 Optioanl Optional30 30/50 Optioanl 50/70 Optioanl Kg
Φ300 Φ500 Φ700 Φ300 Φ500 Φ700 mm
0.02 0.03 0.03 0.02 0.03 0.03 mm
350 650 850 350 650 850 mm
0.05 0.05 0.05 0.05 0.05 0.05 mm
±1~3 ±1~3 ±1~3 ±1~3 ±1~3 ±1~3 ″
±0〜 ±360 ±0〜 ±360 ±0〜 ±360 ±0〜 ±360 ±0〜 ±360 ±0〜 ±360 °
±1~3 ±1~3 ±1~3 ±1~3 ±1~3 ±1~3 ″
0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 °
0.001〜10000 0.001〜3000 0.001〜3000 0.001〜10000 0.001〜3000 0.001〜2000 °/s

ω＜1

1<ω＜10

10<ω

ω＜1

1<ω＜10

10<ω

ω＜1

1<ω＜10

10<ω

ω＜1

1<ω＜10

10<ω

ω＜1

1<ω＜10

10<ω

ω＜1

1<ω＜10

10<ω

 °/s

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1° Average

10 ° Average 360 ° Average
10000 4500 3000 10000 4500 3000 °/s2(Optional)
Rocking function Optional Optional Optional Optional Optional Optional /
Rate resolution 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 °
Slip ring number 10~50 10~50 10~50 10~50 10~50 10~50 (Optioanl)
System bandwidth 5~ 100Hz 5~80Hz 5~80Hz 5~ 100Hz 5~80Hz 5~50Hz Hz(Optioanl)
Slip-ring voice ≤±0.03 ≤±0.03 ≤±0.03 ≤±0.03 ≤±0.03 ≤±0.03 V
Leakage flux <0.5 <0.5 <0.5 <0.5 <0.5 <0.5 mT
MTBF ≥2000 ≥2000 ≥2000 ≥2000 ≥2000 ≥2000 h

ABOUT FIREPOWER

Firepower Technology (Shenzhen) Co., Ltd. was established in 2013 and registered in Shenzhen Nanshan High-tech Park. The company is high-tech enterprise dedicated to R&D and production of quartz accelerometer, FOG, IMU, INS, rate table and other products.

Firewpower technology has invested in several automatic production lines in xi'an, shenzhen,hebei, including fiber optic gyroscope, mems inertial navigation, quartz accelerometer, electronic countermeasure communication products, inertial simulation equipment production lines in china. Firepower technology always puts scientific research innovation, technological exploration and self-control in the first place.

The company has developed a series of autonomous navigation products with independent intellectual property rights, which are specially used in the field of autonomous navigation including uavs, vehicles, ships with the self-developed array algorithm as the core technology, the company has developed a series of inertial navigation products to solve the current position, three-dimensional attitude and speed of the user carrier, realizing the autonomous navigation control of the carrier.
