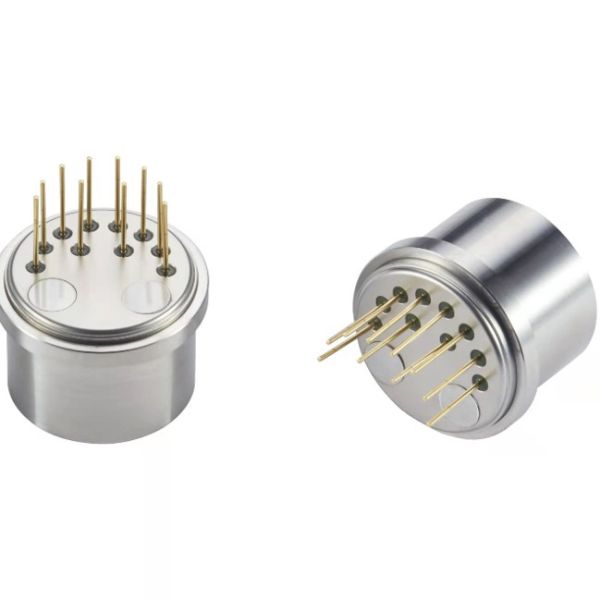

Single Axis Quartz Accelerometer , Flight Control Flexure Vibration Meter
Single Axis Quartz Accelerometer , Flight Control Flexure Vibration Meter
Specifications
Brand Name :
Firepower
Model Number :
JB1-02
Place of Origin :
China
MOQ :
1
Price :
1190
Payment Terms :
T/T
Supply Ability :
500/month
Delivery Time :
1 week for sample order
Packaging Details :
sponge/box
product name :
quartz flexure accelerometer
application :
vibration measure in IMU, INS
0g 4hours short-term Stability :
≤30 μg
Bias thermal coefficient :
≤±80 μg /℃
Scale factor thermal coefficient :
≤±100 ppm /℃80
Natural frequency :
350~800 Hz
Description

Single Axis Quartz Accelerometer , Flexure Vibration Meter , Flight Control Vibration Sensor

Descriptions

quartz flexible accelerometer is a miniaturized, high temperature and shock resistant accelerometer. The product has excellent

Features such as repeatability, start-up performance, high temperature and shock resistance, and high reliability, can be used for both static testing and dynamic testing.

The state test is also a standard vibration sensor.

The product adopts unique miniaturization, high temperature and seismic design, advanced packaging technology and special circuits.

The flow is proportional to the input acceleration, and the user can select a suitable sampling resistor by calculation to achieve a high-precision output. And

Built-in temperature sensor according to user needs, which can be used to compensate for offset value and scale factor to reduce the impact of ambient temperature.

Application areas: oil drilling inclination measurement and vibration isolation testing of precision instruments.

Performance Characteristics

No. Parameters JB1-01
1 Range ±50g
2 Threshold 5μg
3 Bias K0/K1 ≤±3mg1
4 Scale factor K1 1.05~1.30 Ma/g
5 Second order nonlinearity coefficient K2 ≤±10μg /g2
6 0g 4 hours short-term stability ≤10 μg
7 1g 4 hours short-term stability ≤10 ppm
8 Bias comprehensive repeatability σK0 (1σ,1 month) ≤10 μg
9 Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) ≤15ppm
10 Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) ≤±10 μg /g2
11 Bias thermal coefficient (full temp. mean) ≤±10 μg /℃
12 Scale factor thermal coefficient (full temp. mean) ≤±10 ppm /℃
13 Noise (sampling resistance 840Ω) ≤5mv
14 Natural frequency 400~800 Hz
15 Bandwidth 800~2500 Hz
16 Random vibration 6g(20-2000Hz)
17 Impact 100g,5ms,1/2sin
18 Working temp. -55~+85℃
19 Store temp. -60~+120℃
20 Power supply ±12~±15V
21 Consume current ≤±20mA
22 Thermal sensor Customizable
23 Size Ф25.4X30mm
24 Weight ≤80g

Characters

● Low lag

● High resolution

● High stability

● High accuracy

● Low power

● Excellent overload capacity

● Small volume

● Low cost

● Broad measurement range

Size:

Single Axis Quartz Accelerometer , Flight Control Flexure Vibration Meter

Applications

● Drilling and Inclination Measurement

● Aeronautics and Astronautics

● Instruments and Equipment
