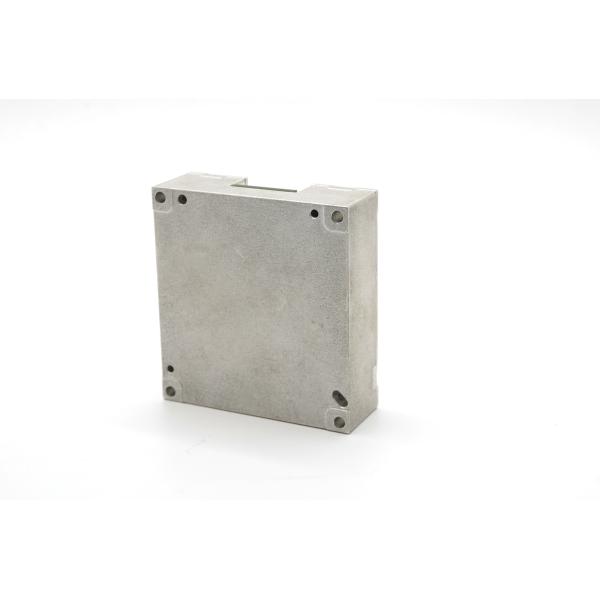

ADIS16488 Replacement Imu Mems Sensor Optional Version
ADIS16488 Replacement Imu Mems Sensor Optional Version
Specifications
Model Number :
16488C
MOQ :
1
Payment Terms :
T/T
Supply Ability :
500/month
Packaging Details :
sponge/box
Product name :
MEMS IMU
Bias instability :
3.5
bias stability :
30
Random walk :
0.25
output noise :
0.09
bandwidth :
330
Brand Name :
Firepower
Description

ADIS16488 replacement good quality low cost ADIS16488 analog product

16488-C is a domestic MEMS IMU used to replace ADIS16488. The product precision is better than ADIS16488. The version is optional, the size and appearance are exactly the same, and the communication protocol is the same.The version is optional, the size and appearance are exactly the same, and the communication protocol is the same. It is more convenient for users to change, providing users with professional product customization services.

ParameterConditions16488-CADIS16488unit
GyroDynamic measuring rangeconfigurable±450±480º/s
Bias instabilityAllan3.55.1º/h
bias stability1s,rms30/º/h
bias in full temperature range-40℃~85℃,10s,rms0.02/º/s
Random walk1б0.250.26º/√h
bias repeatability1б35/º/h
output noiseNo filtering,rms0.090.135º/s
Scale factor repeatability1б0.021.0%
Scale factor Temperature coefficient-40℃~85℃, 1б5±35ppm/°C
The scale factor is nonlinearFS=450º/s0.0080.01%FS
bandwidth(-3dB) 330330Hz
AccelerometerDynamic measuring rangeConfigurable (Max ±40)±20±18g
bias stabilityAllan error0.005/mg
bias in full temperature range-40℃~85℃,10s,rms0.516mg
Random walk1б0.010.029m/s/√h
Bias instability1б0.16/mg
output noiseNo filterin,rms1/mg
Scale factor repeatability1б0.010.5%
scale factor is nonlinearFS=10g0.0020.1%FS
bandwidth(-3dB) 330330Hz
Cross coupling 0.18/%
MagnetometerDynamic measuring range ±2.5±2.5gauss
The sensitivity 0.10.1mgauss/LSB
nonlinearity 0.50.5%FS
BarometerPressure range 11001100mbar
sensitivity 6.1 × 10-76.1 × 10-7mbar/LSB
Total error 4.54.5mbar
The relative error 2.52.5mbar
nonlinearity 0.10.1%FS
Communication interface1 way SPIInput clock frequency1515MHz
1 way UARTBaudrate230.4/kbps
1 way CAN /kbps
Electrical characteristicsvoltagedc3.3(or5)±10% V
Power consumption 0.61W
ripple waveP-P 100mV
Environmentworking temp.extensible 85℃
Store temp 85℃
vibration 10~2000Hz,6.06g
impact 5000g,0.1ms
