INS570D MEMS Inertial Navigation System RTK INS For Unmanned Driving
INS570D MEMS Inertial Navigation System RTK INS For Unmanned Driving
Specifications
Model Number :
INS570
MOQ :
1
Payment Terms :
T/T
Supply Ability :
500/month
Delivery Time :
10 days
Packaging Details :
sponge+carton
Brand Name :
Firepower
Certification :
CE ROHS
Place of Origin :
CHINA
Product :
MEMS INS with RTK
roll/pitch accuracy :
0.1deg
gyro range :
250°/s
gyro bias :
≤10°/h
acceleration range :
4g
acceleration bias :
≤0.1mg
Description

high performance INS based on MEMS inertial navigation RTK INS for unmanned driving

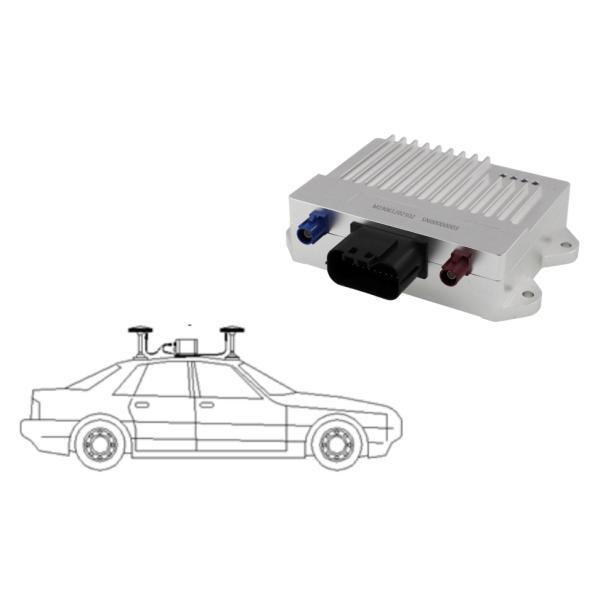

INS570D is a high performance integrated navigation product based on MEMS inertial navigation technology, which integrates satellite navigation information (supporting RTK) and vehicle information (wheel speed, gear, etc.), and adopts vehicle design. It has the ability to accurately provide attitude, heading, position, speed, sensor data and other information to vehicles through data bus in various scenarios (highway, bunker, viaduct, tunnel, city street, port, etc.). The product adopts good man-machine design, which can indicate power supply status, satellite information access status, vehicle information access status, equipment status and other information to the user through the indicator light. The hardware (connector) interface adopts error-proof design, which is convenient for user production, scientific research and debugging.

INS570D MEMS Inertial Navigation System RTK INS For Unmanned Driving

Indicators
SYSTEM
Roll/pitch(1σ) 0.1°
GPS lockout accuracy(Vehicle CEP) Position drift(1km or2min) 0.20%(With odometer calibration)
Heading drift(1min) 0.15°
GYRO
Range 250°/s
Bias stability ≤10°/h
(10s Average)
Bias instability 4°/h
(1σ)
Bias in full temperature ≤0.07°/s
ARW ＜0.35°/√h
nonlinear ＜200ppm
Cross coupling ＜0.05°
Bandwidth 168Hz
ACCELEROMETER
Range 4g
Bias stability ≤0.1mg
(10s average)
Bias in full temperature ≤2mg
Velocity random walk ＜0.04 m/s/√hr
nonlinear ＜300ppm
Bandwidth 400Hz
Satellite navigation board
Position(RMS) 1.5m,2cm+1ppm(RTK)
Speed(RMS) 0.03 m/s
Heading(RMS) 0.2°(Base line1m)
Frequency band BDS B1/B2 + GPSL1/L2 + GLONASSL1/L2+ Galileo E1/e5bE + SBAS/QSZZ
Electrical interface
Voltage input 12V (DC 9～16V)
Working current ≤0.5A
Interface type RS422 *1(Data port),RS232 *1(Difference mouth), CAN *2
Connector type MX23A18NF1,FAKRA_C/D
Host
Weight ＜310g
Size 116*99.78*30mm
Shell material Aluminum alloy
