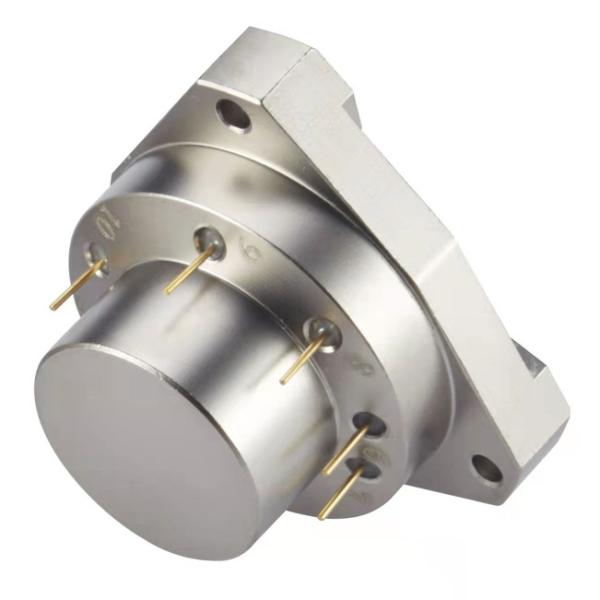

Low Drift Analog Quartz Accelerometer , Flexible Acceleration Transducer Big Range
Low Drift Analog Quartz Accelerometer , Flexible Acceleration Transducer Big Range
Low Drift Analog Quartz Accelerometer , Flexible Acceleration Transducer Big Range
Low Drift Analog Quartz Accelerometer , Flexible Acceleration Transducer Big Range
Low Drift Analog Quartz Accelerometer , Flexible Acceleration Transducer Big Range
Low Drift Analog Quartz Accelerometer , Flexible Acceleration Transducer Big Range
Low Drift Analog Quartz Accelerometer , Flexible Acceleration Transducer Big Range
Low Drift Analog Quartz Accelerometer , Flexible Acceleration Transducer Big Range
Low Drift Analog Quartz Accelerometer , Flexible Acceleration Transducer Big Range
Low Drift Analog Quartz Accelerometer , Flexible Acceleration Transducer Big Range
Specifications
Brand Name :
Firepower
Model Number :
JB3-03
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
600~1300
Payment Terms :
T/T
Supply Ability :
500/month
Delivery Time :
10 days for sample
Packaging Details :
sponge+ box
Function :
Meausre acceleration
Range :
60g
Resolution :
5μg
Bias k0/k1 :
≤(±5 mg)
Scale factor kl :
1.0±0.2 mA/g
Bias drift :
≤15 μg
Description

Analog quartz accelerometer low drift flexible acceleration transducer big range quartz accelerometer

Features

1. Excellent turn-on repeatability performance

2. Environmentally rugged

3. Analog output

4. Field adjustable range

5. Smaller outline size(￡30gram)

Index Table

Parameter

JB3-01

JB3-02

JB3-03

1

measuring range

±60g

±60g

±60g

2

Threshold value

10μg

10μg

10μg

3

Deviation value k0/k1

≤(±10 mg)

≤(±10 mg)

≤(±10 mg)

4

Scale factor k1

1.2±0.2 mA/g

1.2±0.2 mA/g

0.5~0.7mA/g

5

Second-order nonlinear coefficientK2

≤±20μg /g2

≤±30μg /g2

≤±20μg /g2

6

0g 4 h short-term stability

≤20 μg

≤30 μg

≤20 μg

7

1g 4 h short-term stability

≤20 ppm

≤30 ppm

≤20 ppm

8

Deviation valueComprehensive repeatability

σk0 (1σ,1 month)

≤40 μg

≤80 μg

≤40 μg

9

Scale factorComprehensive repeatability

σk1/k1 (1σ,1 month)

≤50ppm

≤100 ppm

≤50ppm

10

Nonlinear coefficientComprehensive repeatabilityk2/k1(1σ,1 month)

≤±20 μg /g2

≤±30 μg /g2

≤±20 μg /g2

11

Deviation valueTemperature Coefficient

≤±30 μg /℃

≤±50 μg /℃

≤±30 μg /℃

12

Scale factorTemperature Coefficient

≤±50 ppm /℃

≤±100 ppm /℃

≤±50 ppm /℃

13

noise(Sampling resistance is 840Ω)

≤4mv

≤8.4mv

≤4mv

14

Natural frequency

350~800 Hz

350~800 Hz

350~800 Hz

15

bandwidth

800~2500 Hz

800~2500 Hz

800~2500 Hz

16

vibration

5g(20-2000Hz)

5g(20-2000Hz)

5g(20-2000Hz)

17

Shock(0.5ms,1/2sin)

150g

150g

150g

18

Operating temperaturemeasuring range

-40-+85℃

-40-+85℃

-40-+85℃

19

storage temperaturemeasuring range

-60-+120℃

-60-+120℃

-60-+120℃

20

powered

±12~±15V

±12~±15V

±12~±15V

21

Current consumption

£±20mA

£±20mA

£±20mA

22

size

Ф18.2X23mm

Ф18.2X23mm

Ф18.2X23mm

23

weight

£30gram

£30gram

£30gram

Dimension

Low Drift Analog Quartz Accelerometer , Flexible Acceleration Transducer Big Range

Introduction

JB3 accelerometer family utilizes unique quartz flexible sensors. The small accelerometer is designed for measurement of Inertial accelerations in aerospace environment,It is the predominant sensor used in china’s commercial and military aircraft strap-down inertial navigation systems.The long-term Repeatability and superior reliability characteristics of the JB3 make it the best value inertial-grade accelerometer available on the market today.

JB3 quartz flexible accelerometer single axis anal...
